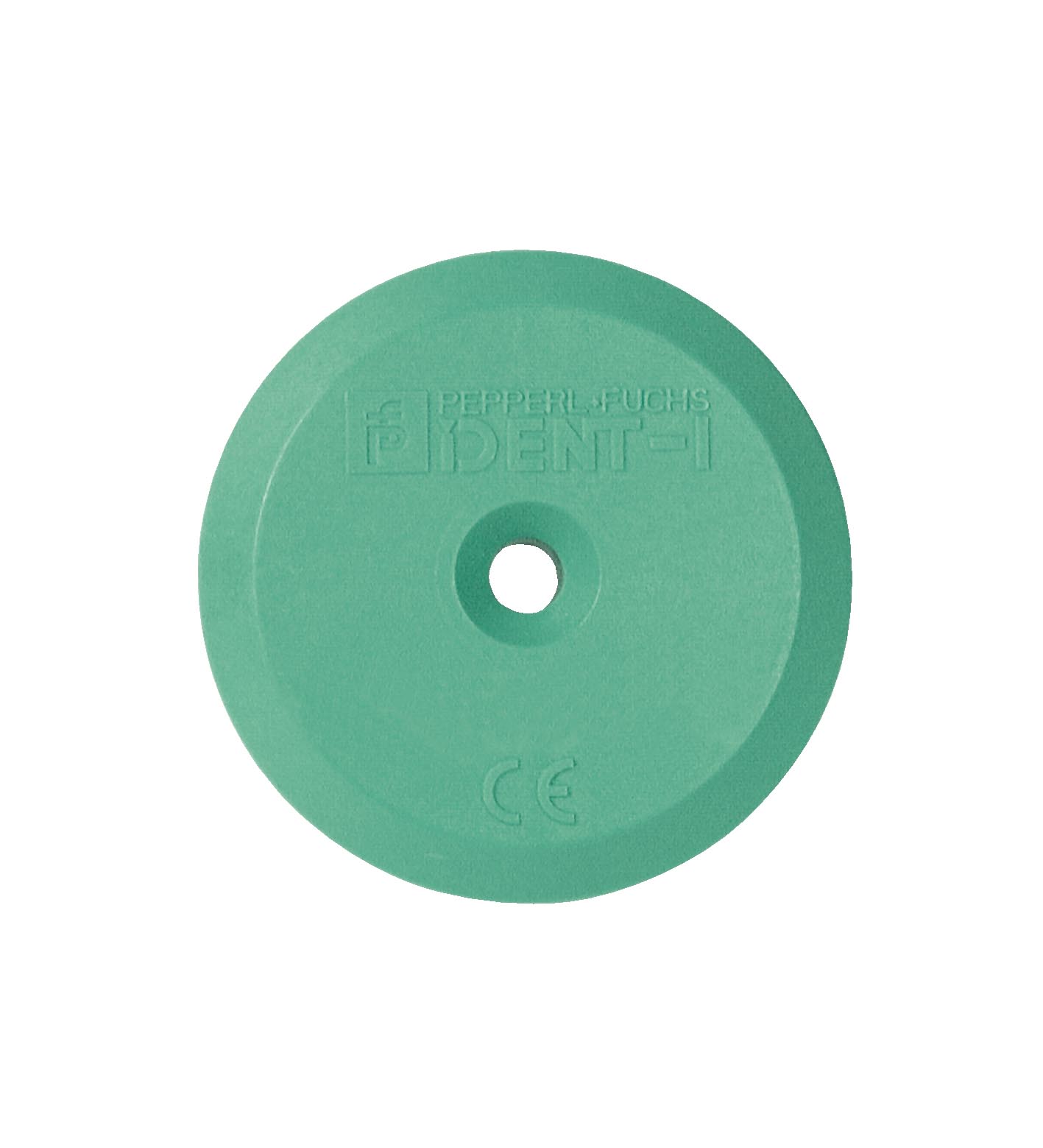

IPC03-58

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Da...

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -25 ... 120 °C (-13 ... 248 °F). Degree of protection: IP67. Material: . HousingPA 6 (Polyamide)Encapsulation compoundPolyurethane (PUR): . Housing: PA 6 (Polyamide). Encapsulation compound: Polyurethane (PUR). Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Dimensions: . Height20.1 mmDiameter58 mm: . Height: 20.1 mm. Diameter: 58 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
