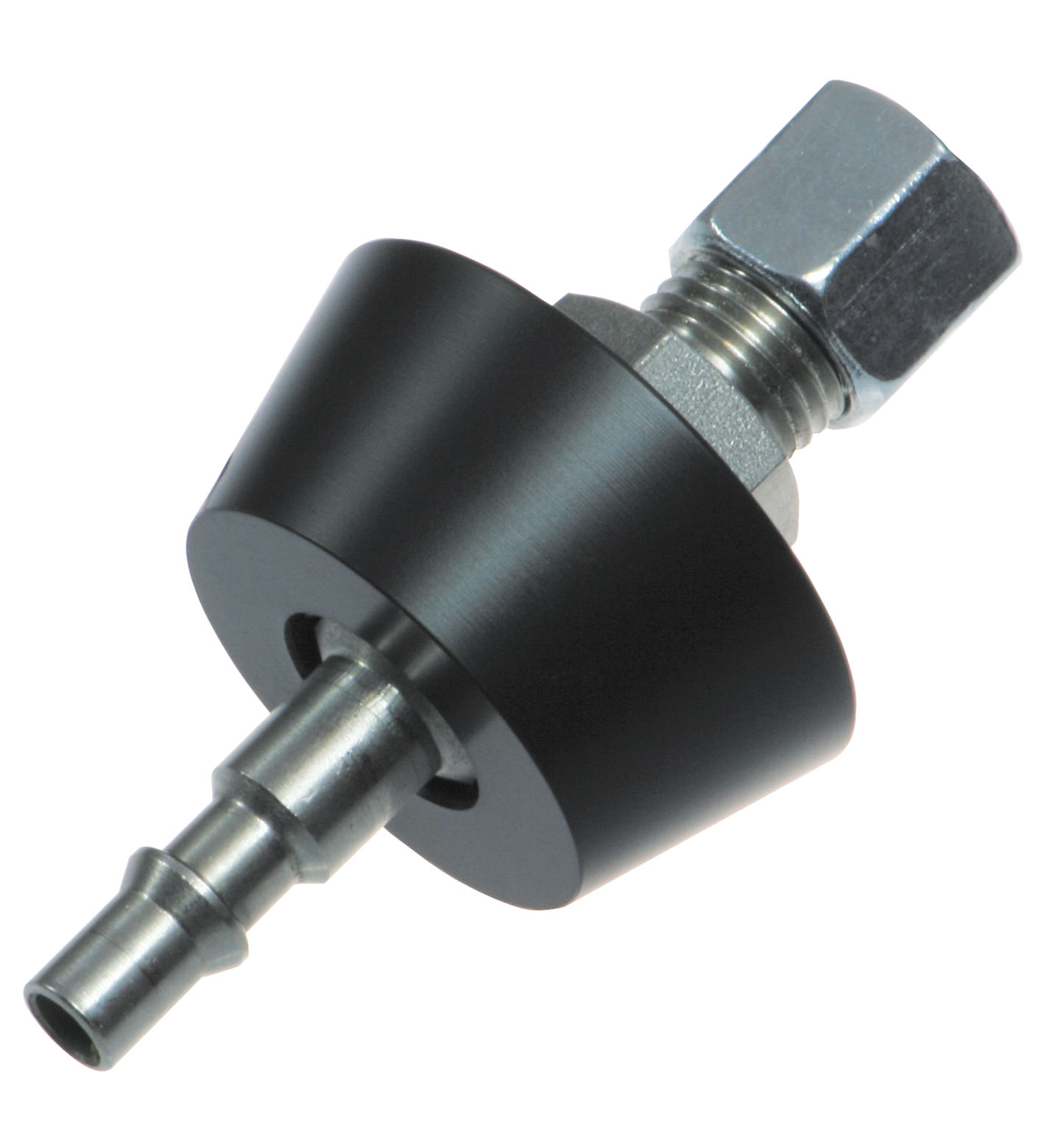

IPC03-MH44

RFID Transponder. RFID tag with tube connection. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cyc...

RFID Transponder. RFID tag with tube connection. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Material: . HousingPA: . Housing: PA. Installation: . On metalyes: . On metal: yes. Mass: 100 g. Dimensions: . Height79 mmDiameter44 mm: . Height: 79 mm. Diameter: 44 mm. Construction type: Special Design

Brand	Pepperl Fuchs
Lifecycle status	active
