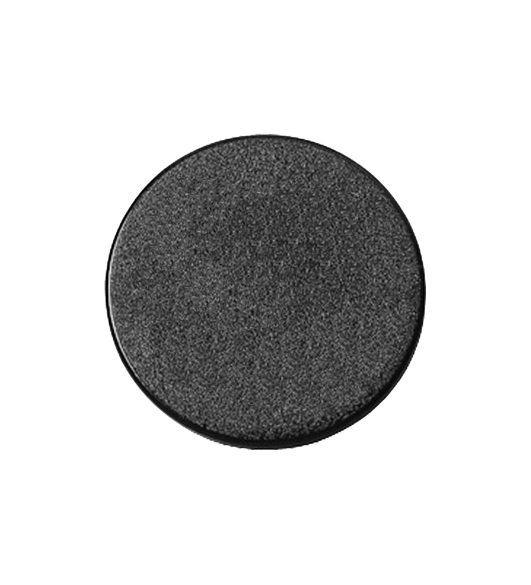

IPC11-20

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: Q5 (Atmel). EEPROM: 40 Bit. Read cycles: unlimited. Radio equipment: . Directive 2014/53/EUEN 300330:...

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: Q5 (Atmel). EEPROM: 40 Bit. Read cycles: unlimited. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 90 °C (-40 ... 194 °F) for 1000 hours130 °C (266 °F) for 100 hours. Degree of protection: IP67. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Installation: . In airyes: . In air: yes. Mass: 0.8 g. Dimensions: . Height2 mmDiameter20 mm: . Height: 2 mm. Diameter: 20 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
