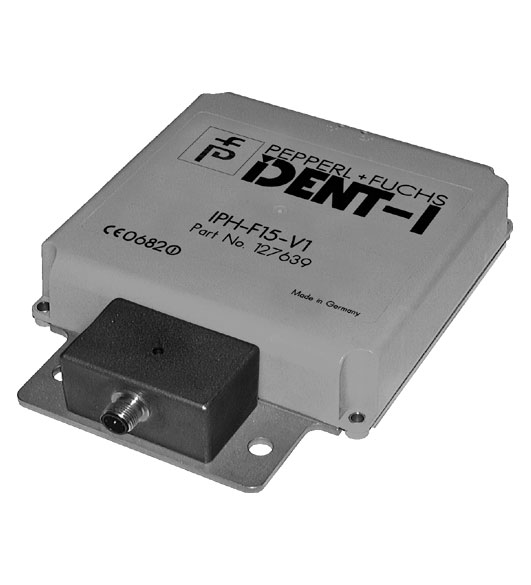

IPH-F15-V1

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance2 ... 155 mmWrite distance2 ... 140 mmWi...

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance2 ... 155 mmWrite distance2 ... 140 mmWidth145 mm: . Read distance: 2 ... 155 mm. Write distance: 2 ... 140 mm. Width: 145 mm. UL File Number: E87056 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.2 W. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPBT/stainless steel/aluminumEncapsulation compoundFermadur: . Housing: PBT/stainless steel/aluminum. Encapsulation compound: Fermadur. Installation: . Distance between two headsMultiplex on: ≥ 180 mm Multiplex off: ≥ 1100 mm: . Distance between two heads: Multiplex on: ≥ 180 mm Multiplex off: ≥ 1100 mm. Mass: approx. 1200 g. Dimensions: . Height40.5 mmWidth140 mmLength190 mm: . Height: 40.5 mm. Width: 140 mm. Length: 190 mm

Brand	Pepperl Fuchs
Lifecycle status	active
