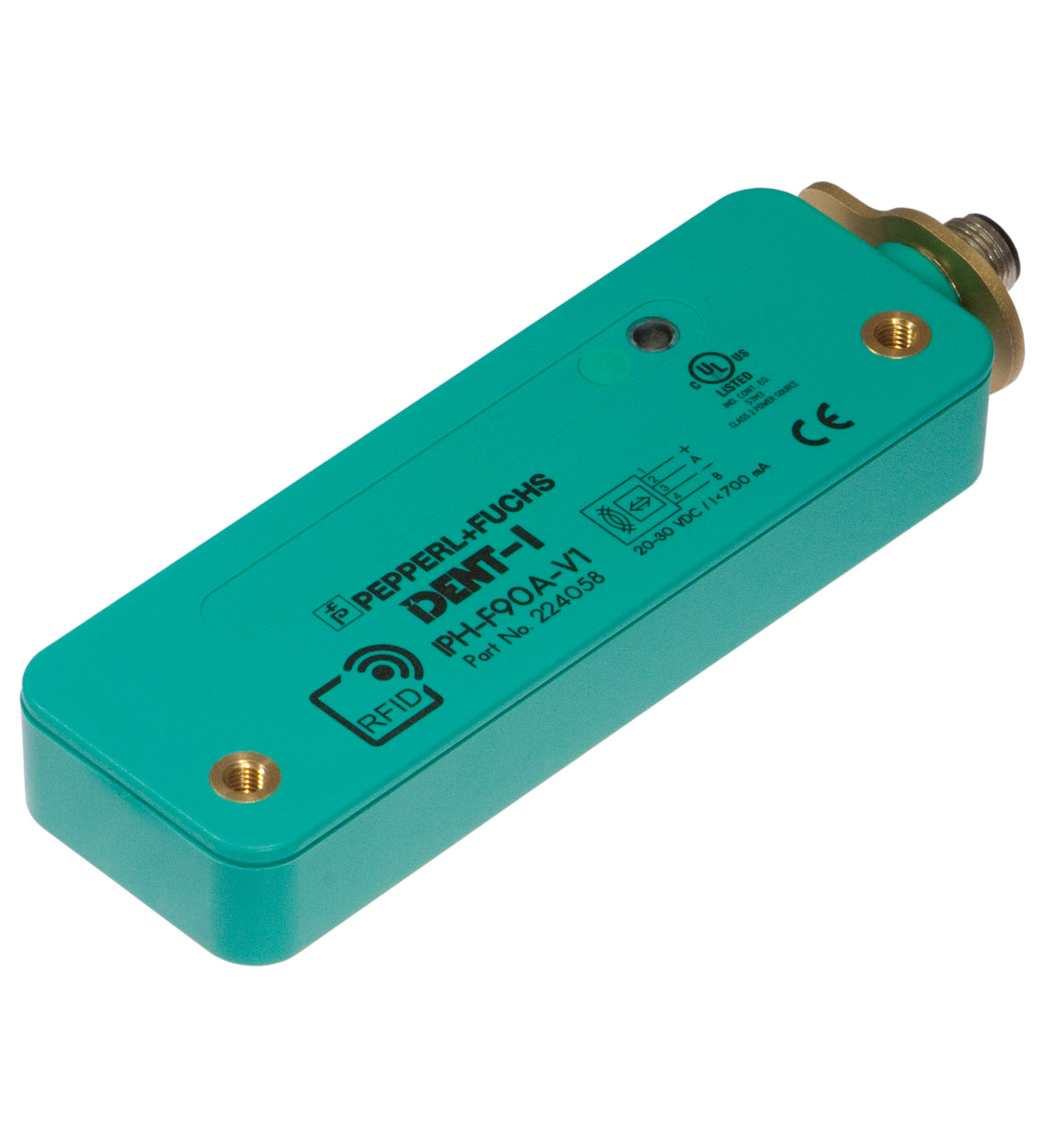

IPH-F90A-V1

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance3 ... 90 mm (with transponder IPC03-50P...

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance3 ... 90 mm (with transponder IPC03-50P at 25°C)Write distance3 ... 80 mm (with transponder IPC03-50P at 25°C)Widthmax. 140 mm: . Read distance: 3 ... 90 mm (with transponder IPC03-50P at 25°C). Write distance: 3 ... 80 mm (with transponder IPC03-50P at 25°C). Width: max. 140 mm. UL File Number: E87056. MTBF: 350 a (Operation at +40 °C). LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.2 W. Supply: from the IDENTControl. Mag. Field strength: < 27.3 dBµA/m at 10 m. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -40 ... 55 °C (-40 ... 131 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingABSEncapsulation compoundWEVO 403FL/300: . Housing: ABS. Encapsulation compound: WEVO 403FL/300. Installation: . Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 550 mm: . Distance between two heads: Multiplex on: ≥ 100 mm Multiplex off: ≥ 550 mm. Mass: approx. 180 g. Dimensions: . Height21 mmWidth43.5 mmLength144.5 mm: . Height: 21 mm. Width: 43.5 mm. Length: 144.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
