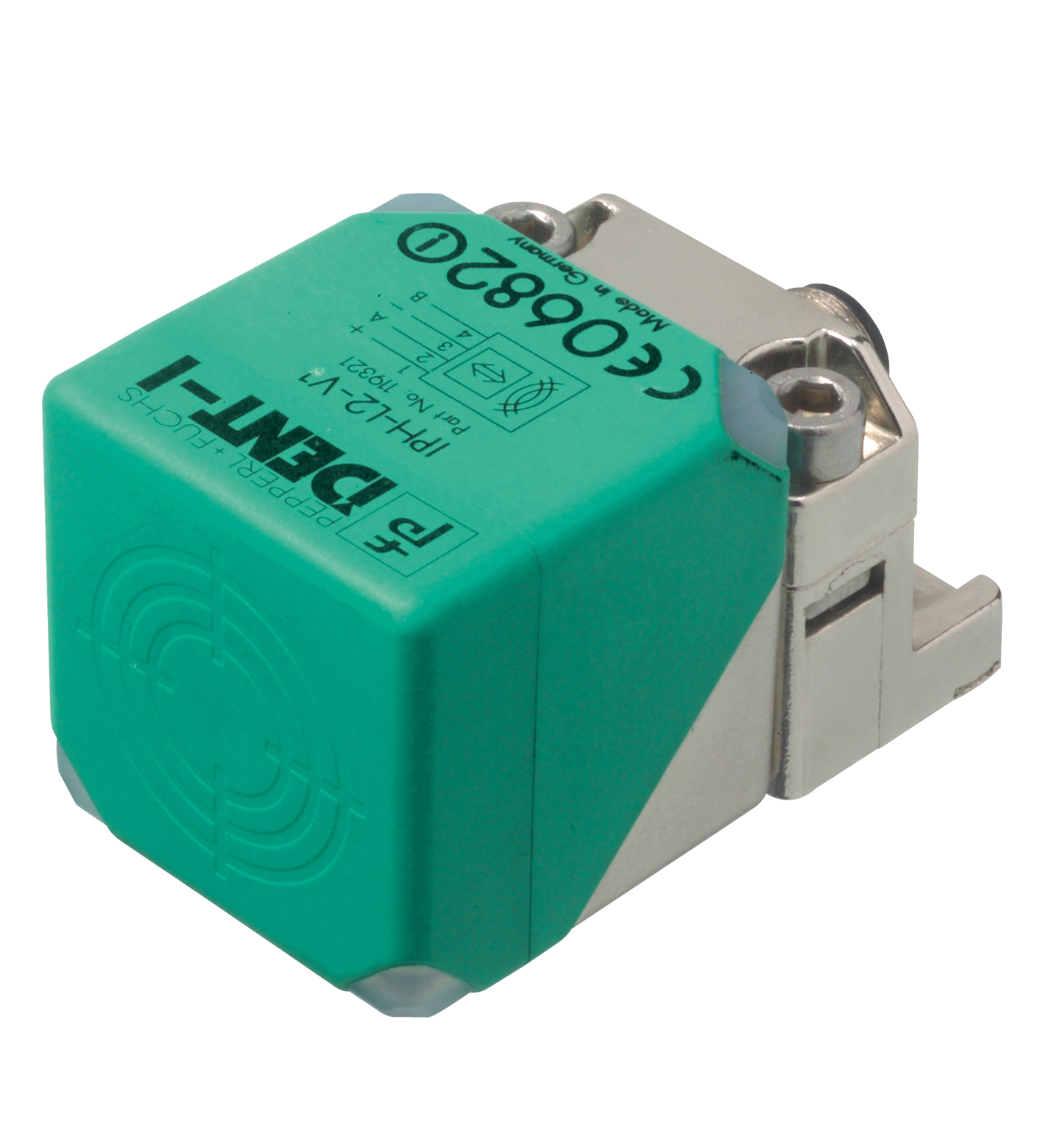

IPH-L2-V1

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance1 ... 75 mmWrite distance2 ... 65 mmWidt...

RFID read/write device. LF RFID read/write device for IDENT<i>Control</i>. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Sensing range: . Read distance1 ... 75 mmWrite distance2 ... 65 mmWidthmax. 60 mm: . Read distance: 1 ... 75 mm. Write distance: 2 ... 65 mm. Width: max. 60 mm. UL File Number: E87056. MTBF: 350 a (Operation at +40 °C). LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.2 W. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPA-GF35 Zinc die castEncapsulation compoundFermadur: . Housing: PA-GF35 Zinc die cast. Encapsulation compound: Fermadur. Installation: non-flush in metal. Distance between two headsMultiplex on: ≥ 60 mm Multiplex off: ≥ 450 mm: . Distance between two heads: Multiplex on: ≥ 60 mm Multiplex off: ≥ 450 mm. Mass: approx. 210 g. Dimensions: . Height40 mmWidth40 mmLength55.5 mm: . Height: 40 mm. Width: 40 mm. Length: 55.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
