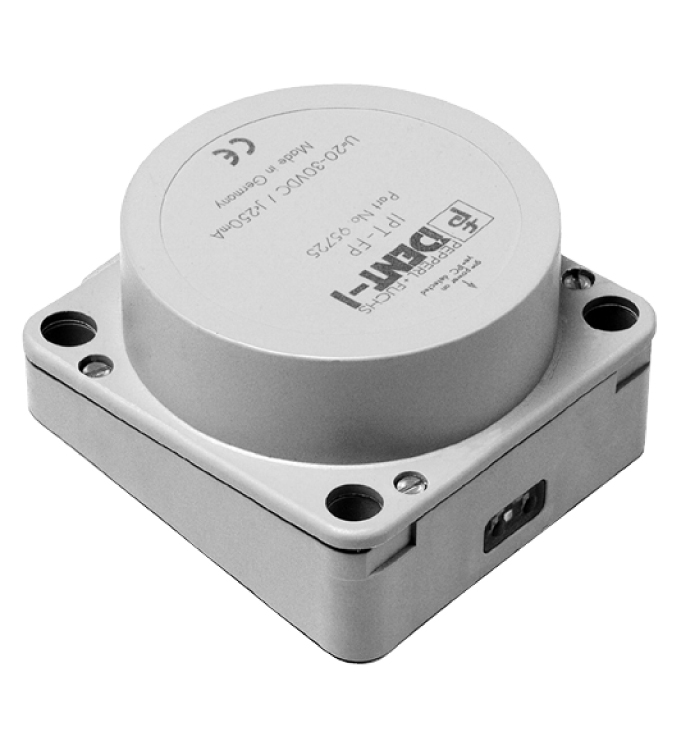

IPT1-FP

Read/write station. LF R/W system, fully assembled as configuration and test station. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Operating distance: maximum: 100 mm. UL File Number: E87056...

Read/write station. LF R/W system, fully assembled as configuration and test station. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Operating distance: maximum: 100 mm. UL File Number: E87056. LED green: Power on. LED yellow: IPC detected. LED red: bus fault (when using fieldbus interfaces). Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 5 W , in connection with the base. Galvanic isolation: . Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff: . Operating voltage/interface: functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff. Mag. Field strength: < 27.3 dBµA/m at 10 m. Physical: Interface type depends on base used. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 300330 EN 62368-1: . Directive 2014/53/EU: EN 301489-1 EN 300330 EN 62368-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529, with base. Material: . HousingPBT: . Housing: PBT

Brand	Pepperl Fuchs
Lifecycle status	active
