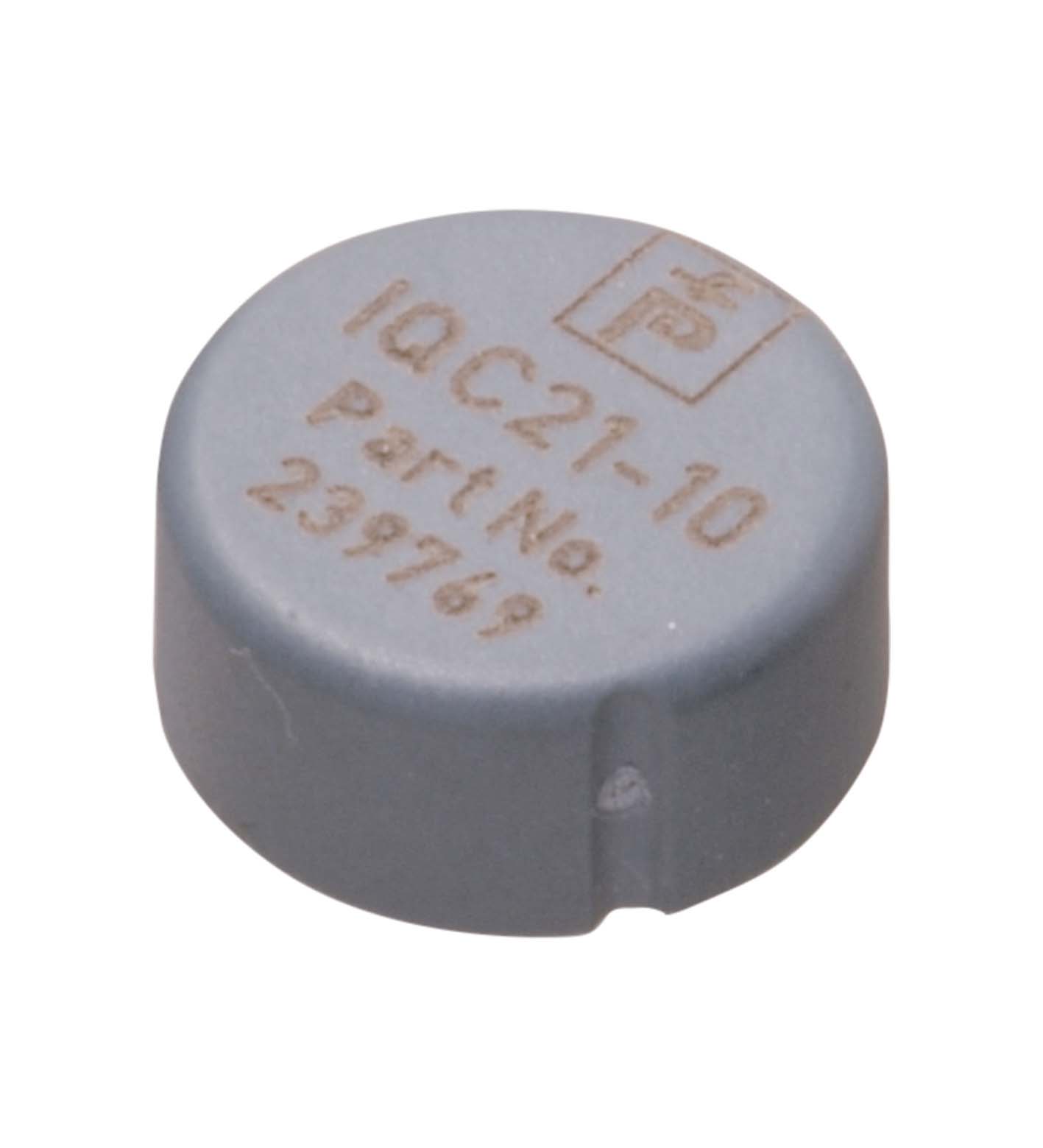

IQC21-10 10pcs

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: u...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: 100000. Data retention period: 50 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Material: . HousingPBTEncapsulation compoundCY 221/HY 2966: . Housing: PBT. Encapsulation compound: CY 221/HY 2966. Installation: . In metalyesOn metalyesIn airyes: . In metal: yes. On metal: yes. In air: yes. Dimensions: . Height4.4 mmHeight tolerance± 0.1 mmDiameter9.9 mmDiameter tolerance± 0.1 mm: . Height: 4.4 mm. Height tolerance: ± 0.1 mm. Diameter: 9.9 mm. Diameter tolerance: ± 0.1 mm. Construction type: Cylindrical. Note: Packaging unit, 10-piece

Brand	Pepperl Fuchs
Lifecycle status	active
