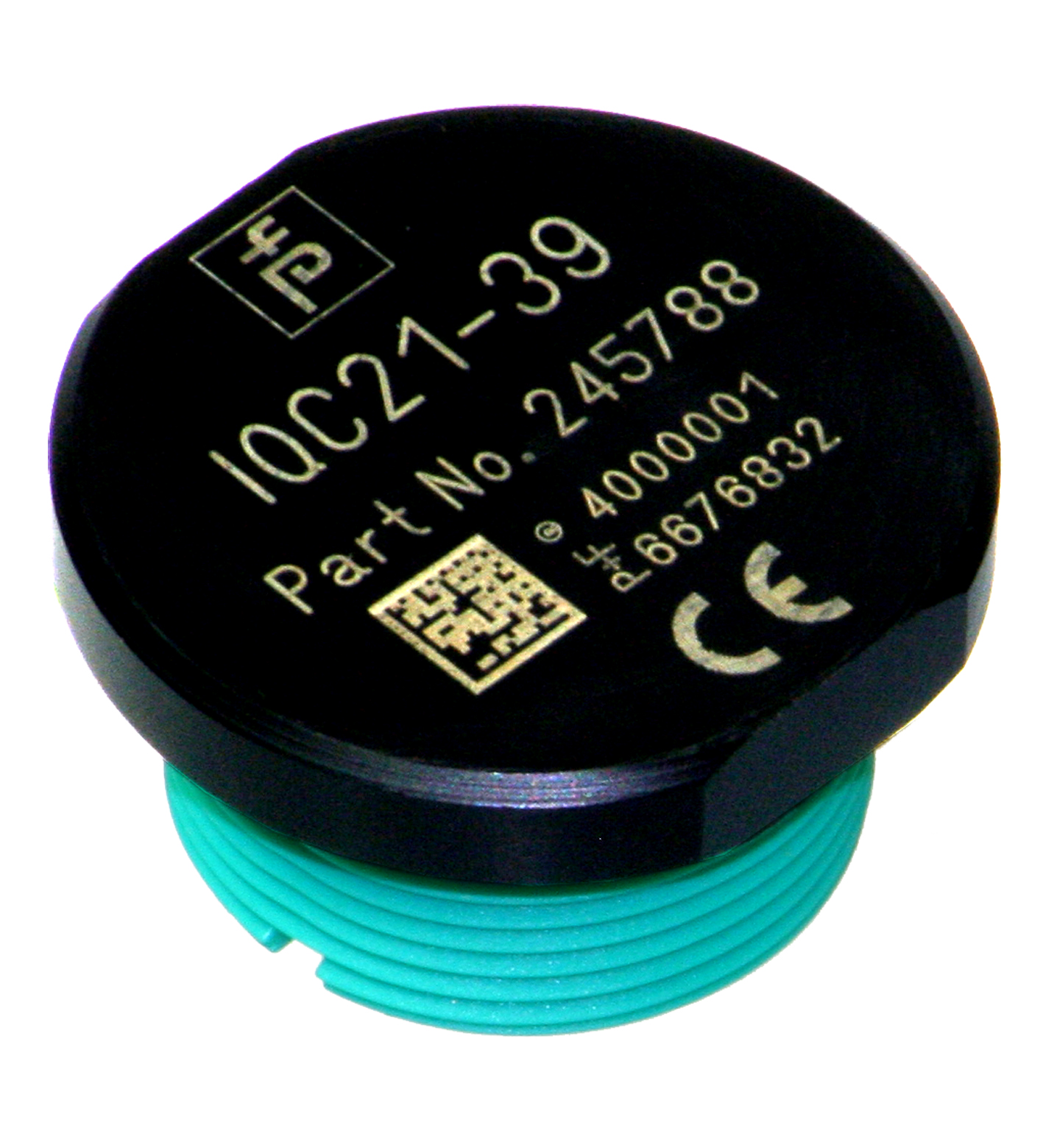

IQC21-39

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLI (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: un...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLI (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Material: . BasePPEncapsulation compoundWEVO 403FL/300CoveringPOM: . Base: PP. Encapsulation compound: WEVO 403FL/300. Covering: POM. Installation: . In metalyesOn metalyesIn airyes: . In metal: yes. On metal: yes. In air: yes. Mass: 23 g. Dimensions: . Height21.5 mmDiameter39 mm: . Height: 21.5 mm. Diameter: 39 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
