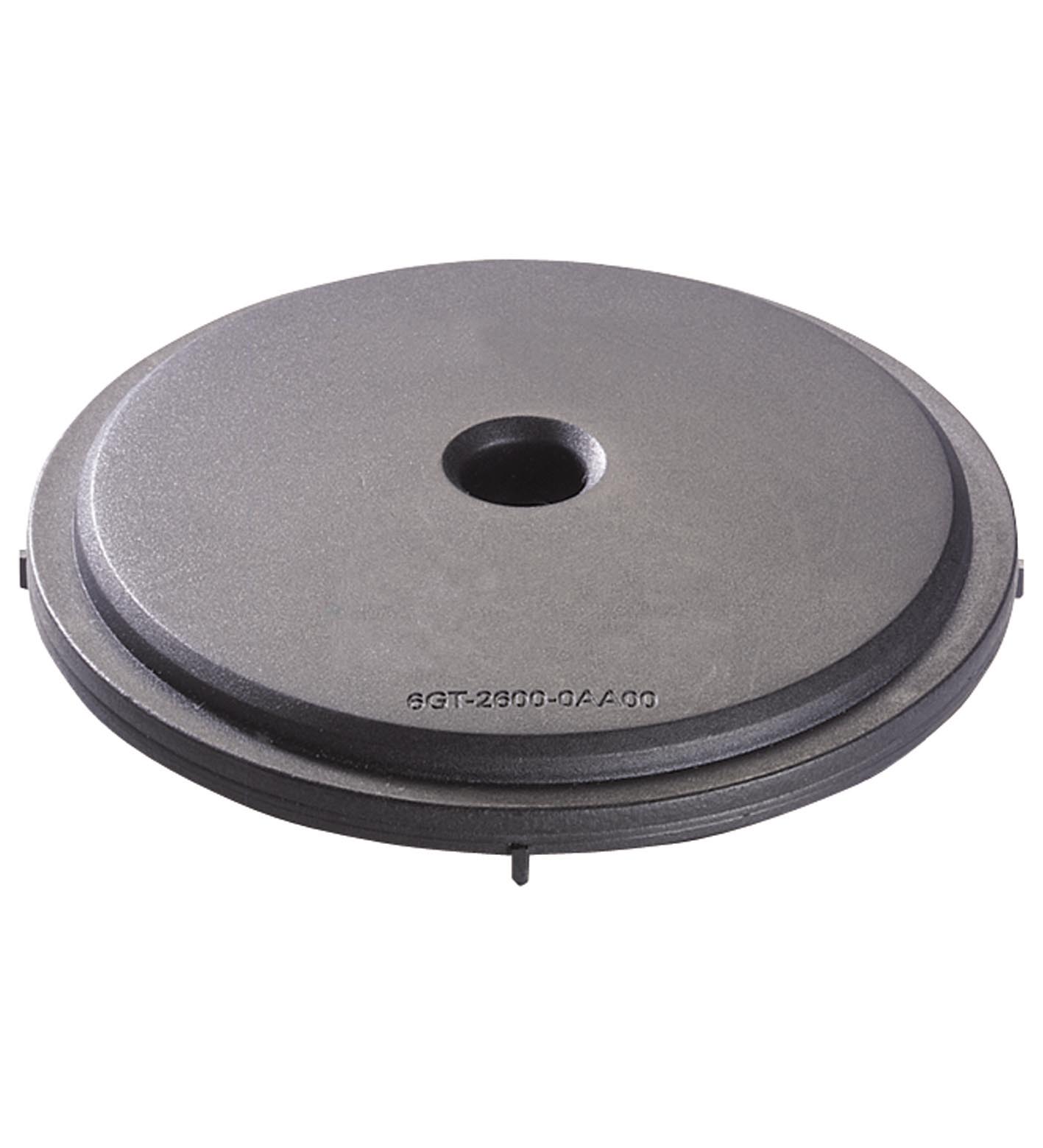

IQC21-85-T13

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLI (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: un...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLI (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 1000000 at 40 °C. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. Shock resistance: EN 60721-3-7 Class 7M3. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F) 200 °C (473 K) for 5000 hours or 3000 cycles220 °C (493 K) for 2000 hours or 1500 cycles. Shock and impact resistance: Vibration: 20 gShock: 50 g. Degree of protection: IP68 / IP69K. Material: PPS. Installation: . In airyes: . In air: yes. Mass: approx. 50 g. Dimensions: . Height15 mmDiameter85 mm: . Height: 15 mm. Diameter: 85 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
