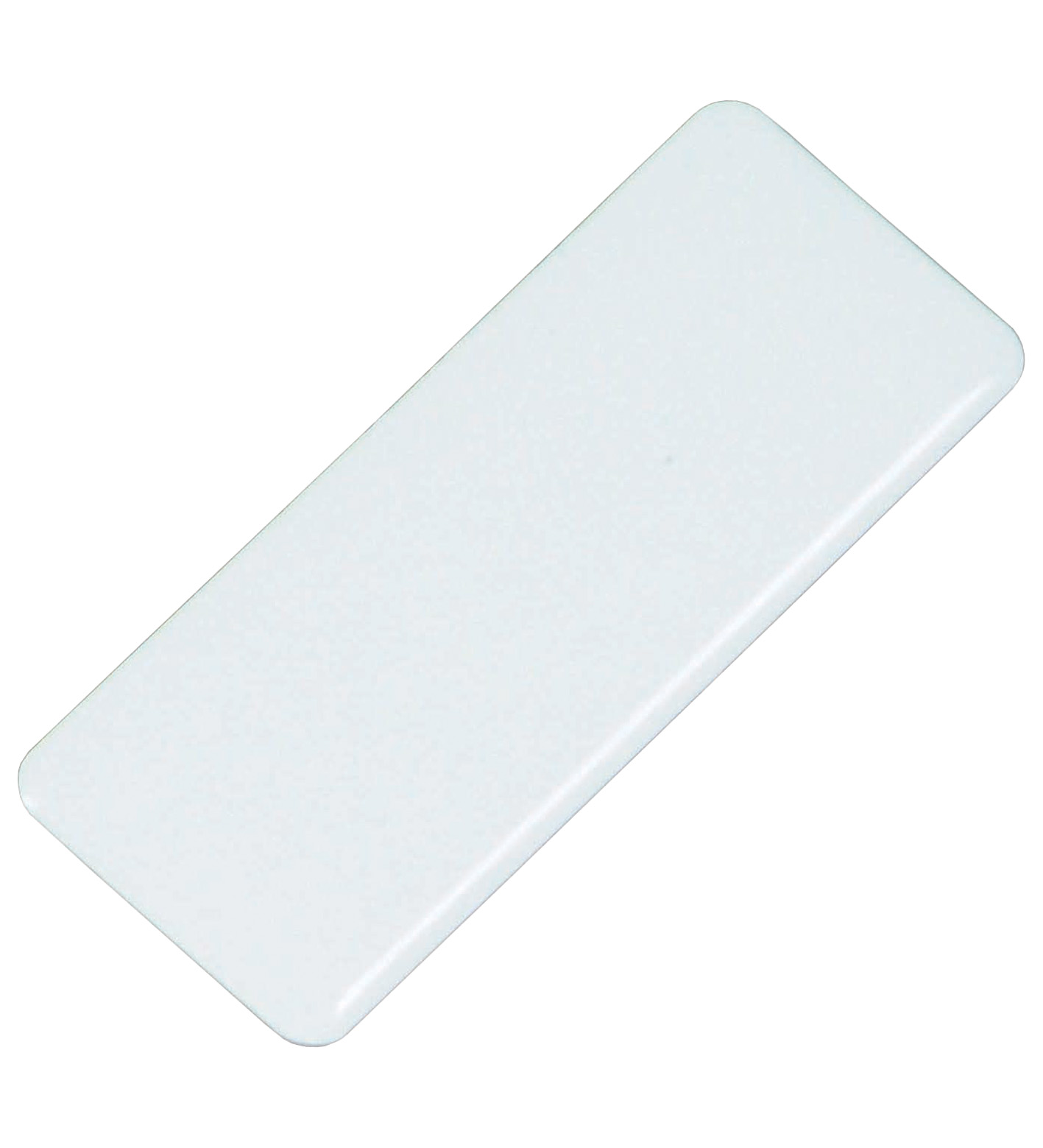

IQC21-F125 10pcs

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: u...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: I-CODE SLIX (NXP). EEPROM: 896 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: 100000. Data retention period: 50 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 50 °C (-13 ... 122 °F). Storage temperature: -25 ... 50 °C (-13 ... 122 °F). Degree of protection: IP65. Material: . HousingABS + Epoxy: . Housing: ABS + Epoxy. Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Dimensions: . Height3 mmWidth25 mmLength65 mm: . Height: 3 mm. Width: 25 mm. Length: 65 mm. Construction type: Rectangular type. Note: Packaging unit, 10-piece

Brand	Pepperl Fuchs
Lifecycle status	active
