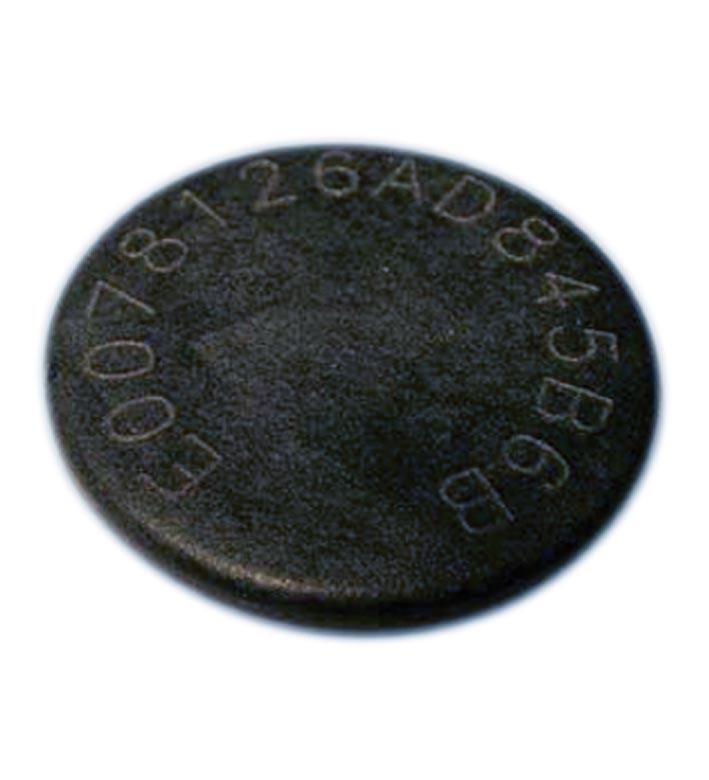

IQC22-22-T9 50pcs

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: Tag-it HF-I Plus (Texas Instruments). EEPROM: 2 kBit. UID: 64 Bit. Memory organization: 4 bytes/blo...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: Tag-it HF-I Plus (Texas Instruments). EEPROM: 2 kBit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 25 °C (77 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Storage temperature: -25 ... 120 °C (-13 ... 248 °F) 160 °C (320 °F) for 50 hours220 °C (428 °F) for 30 seconds. Climatic conditions: Isostatic water pressure: 45 bar for 10 hours. Shock and impact resistance: Oscillation (sinus): 10 g, 10 - 2000 Hz in accordance with EN 60068-2-6Shock (semi-sinus): 100 g, 6 ms in accordance with EN 60068-2-27. Degree of protection: IP68. Material: . HousingPPS: . Housing: PPS. Installation: . In airyes: . In air: yes. Mass: 1.6 g ± 0.3 g. Dimensions: . Height3 mmDiameter22 mm: . Height: 3 mm. Diameter: 22 mm. Construction type: Cylindrical. Note: Packaging unit, 50-piece

Brand	Pepperl Fuchs
Lifecycle status	active
