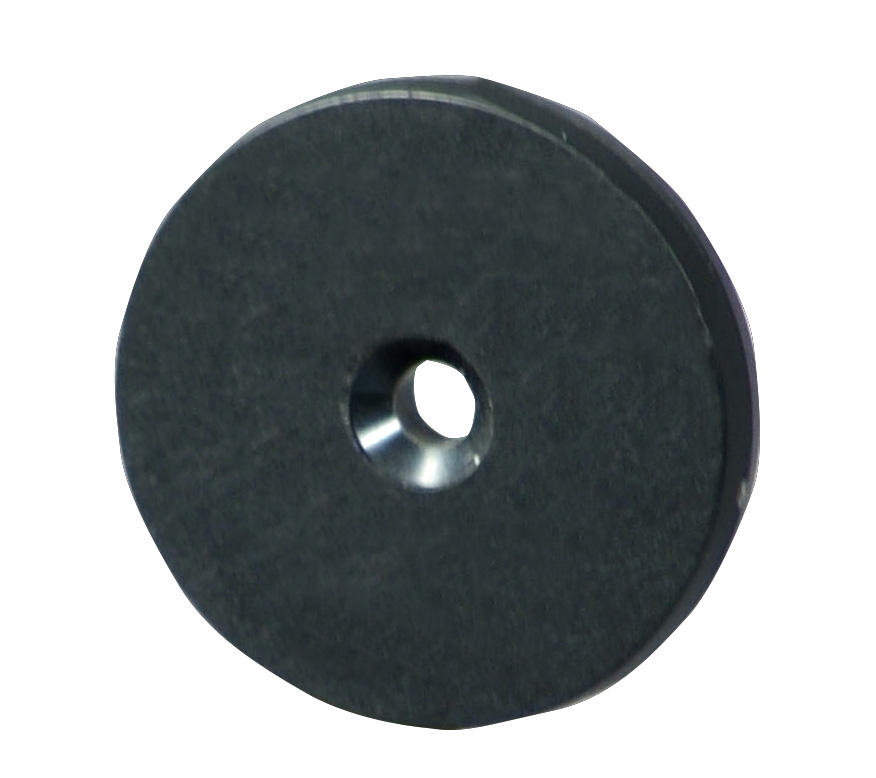

IQC24-27-T12

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: my-d SRF 55V10P (Infineon). EEPROM: 992 Byte. UID: 64 Bit. Memory organization: 4 bytes/block. Read...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: my-d SRF 55V10P (Infineon). EEPROM: 992 Byte. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: 10000 @ 70 °C, 1000000 @ <40 °C. Data retention period: 10 years @ 40 °C (104 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 125 °C (-13 ... 257 °F). Storage temperature: -40 ... 140 °C (-40 ... 284 °F). Degree of protection: IP67. Material: . HousingEpoxy resin: . Housing: Epoxy resin. Installation: . In airyes: . In air: yes. Mass: 5 g. Dimensions: . Height4 mmDiameter27 mm: . Height: 4 mm. Diameter: 27 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
