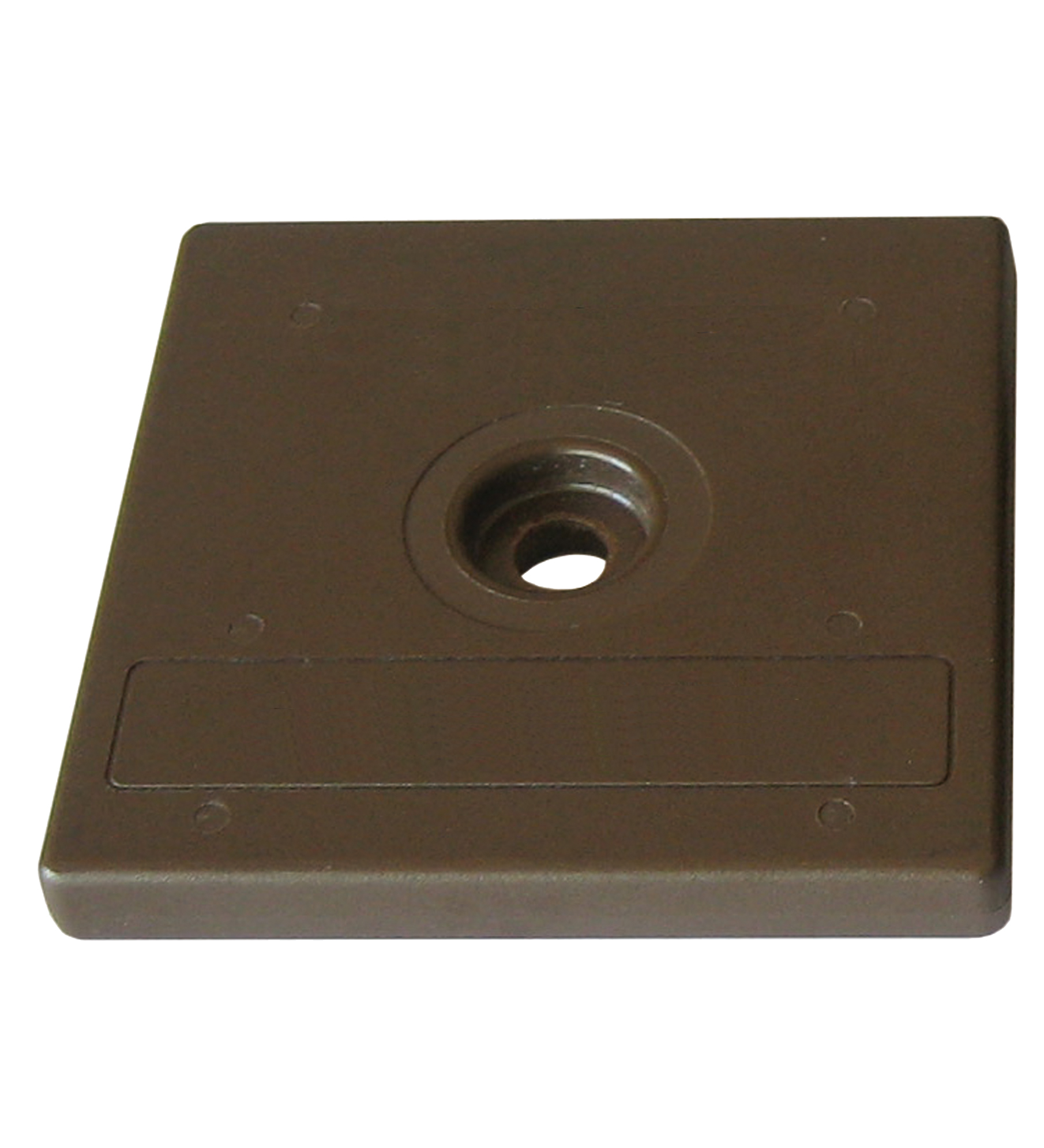

IQC24-50F-T10

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: my-d SRF 55V10P (Infineon). EEPROM: 992 Byte. UID: 64 Bit. Memory organization: 4 bytes/block. Read...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: my-d SRF 55V10P (Infineon). EEPROM: 992 Byte. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 220 °C (-40 ... 428 °F) 220 °C (428 °F) for 1000 hours or 1500 cycles of 30 min. Climatic conditions: 100 % non-condensing. Degree of protection: IP68. Material: . HousingPPS: . Housing: PPS. Installation: . In airyes: . In air: yes. Mass: 25 g. Dimensions: . Height6.4 mmWidth51.5 mmLength51.5 mm: . Height: 6.4 mm. Width: 51.5 mm. Length: 51.5 mm. Construction type: Rectangular type

Brand	Pepperl Fuchs
Lifecycle status	active
