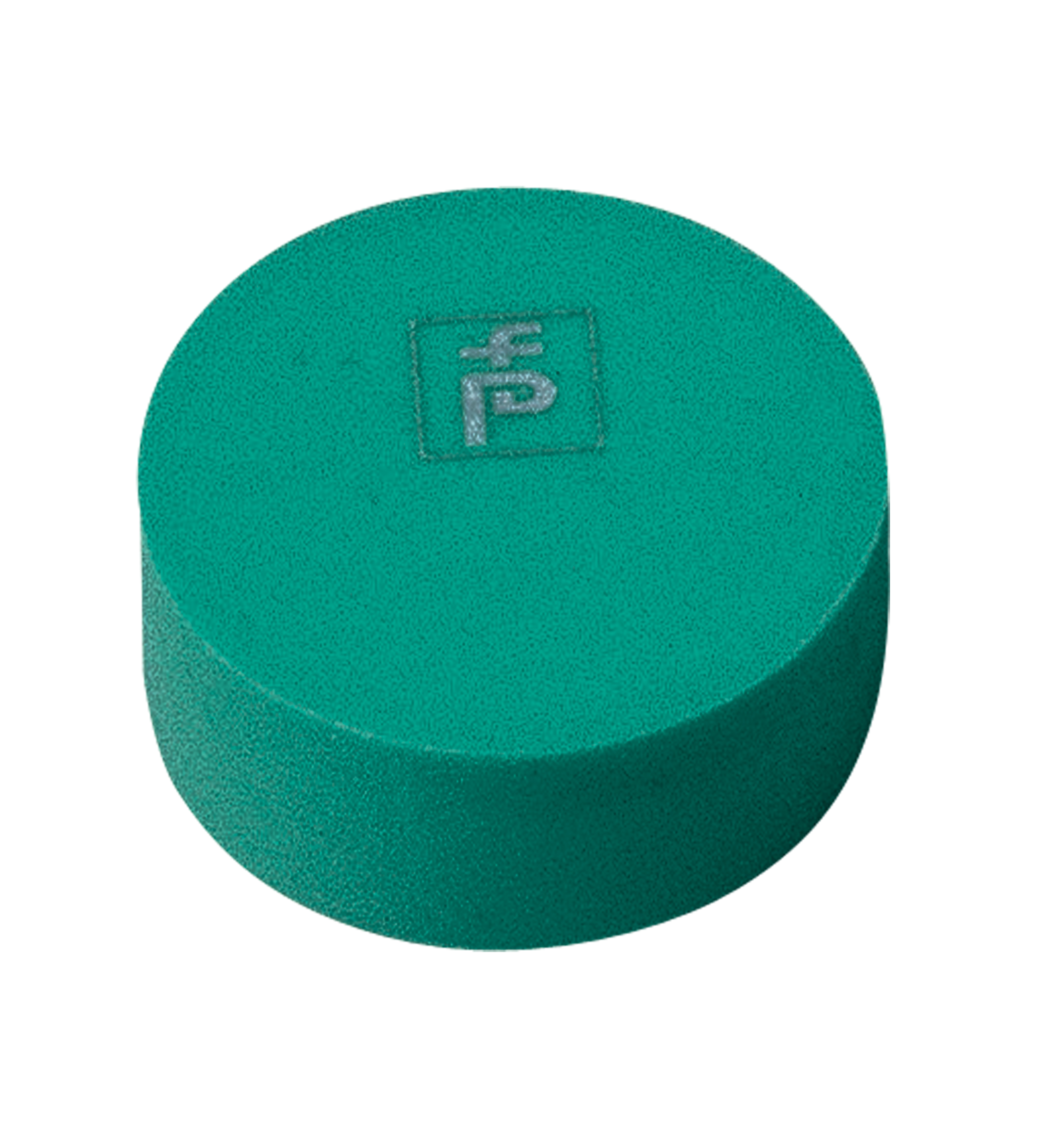

IQC33-10 10pcs

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: FRAM MB89R118 (Fujitsu). FRAM: 16 kBit. UID: 64 Bit. Memory organization: 8 bytes/block. Read cycle...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: FRAM MB89R118 (Fujitsu). FRAM: 16 kBit. UID: 64 Bit. Memory organization: 8 bytes/block. Read cycles: unlimited. Write cycles: unlimited. Data retention period: 10 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Material: . HousingPBTEncapsulation compoundCY 221/HY 2966: . Housing: PBT. Encapsulation compound: CY 221/HY 2966. Installation: . In metalyesOn metalyesIn airyes: . In metal: yes. On metal: yes. In air: yes. Mass: 1 g. Dimensions: . Height4.5 mmHeight tolerance± 0.1 mmDiameter10 mmDiameter tolerance- 0.2 mm: . Height: 4.5 mm. Height tolerance: ± 0.1 mm. Diameter: 10 mm. Diameter tolerance: - 0.2 mm. Construction type: Cylindrical. Note: Packaging unit, 10-piece

Brand	Pepperl Fuchs
Lifecycle status	active
