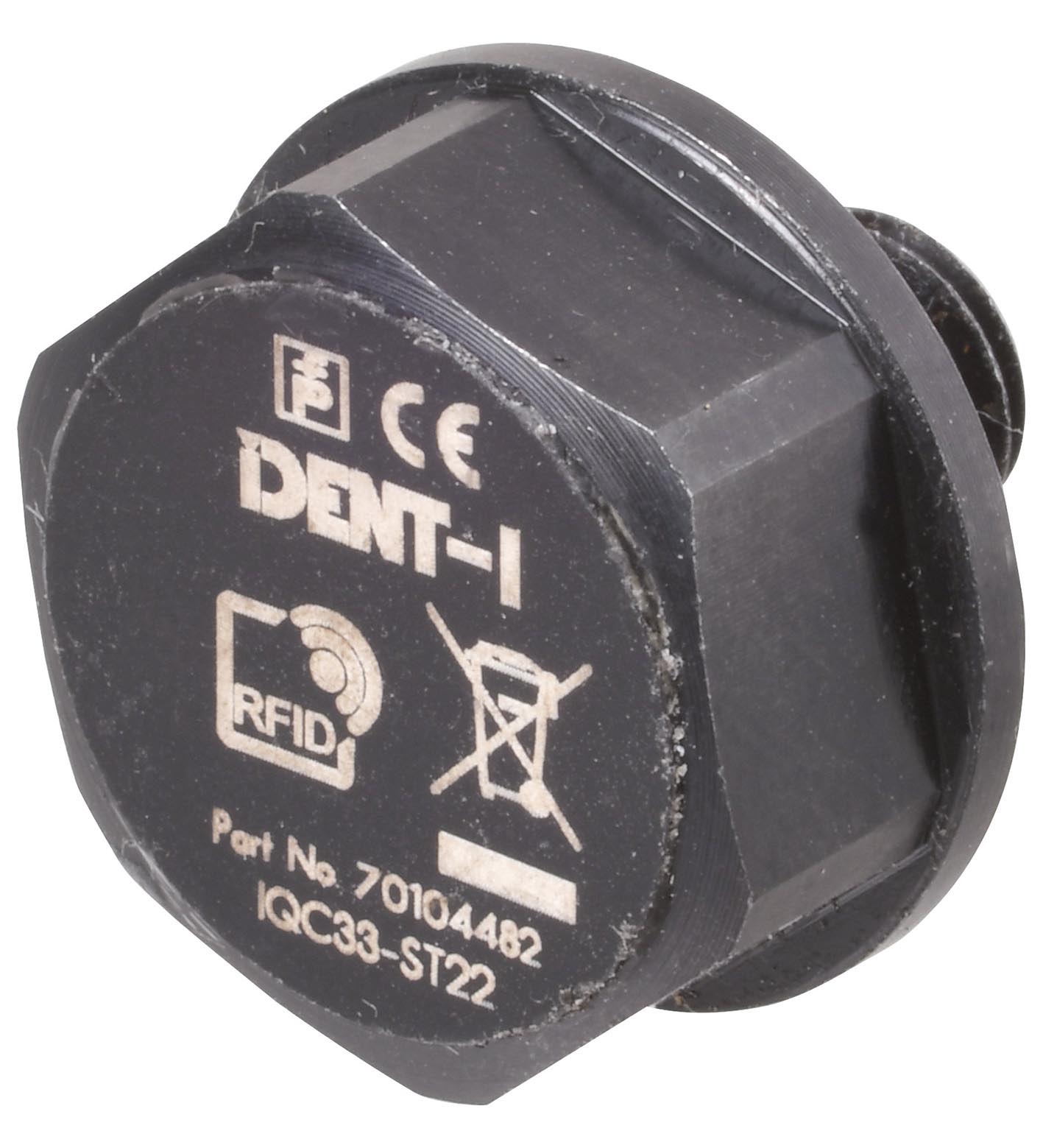

IQC33-ST22

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: FRAM MB89R118 (Fujitsu). FRAM: 16 kBit. UID: 64 Bit. Memory organization: 8 bytes/block. Read cycle...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: FRAM MB89R118 (Fujitsu). FRAM: 16 kBit. UID: 64 Bit. Memory organization: 8 bytes/block. Read cycles: unlimited. Write cycles: unlimited. Data retention period: 10 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Storage temperature: -20 ... 85 °C (-4 ... 185 °F) -25 °C (-13 °F) for 72 hours125 °C (257 °F) for 72 hours. Degree of protection: IP68. Material: . HousingSteelCoveringPA 6: . Housing: Steel. Covering: PA 6. Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Mass: 16 g. Dimensions: . Height20.5 mmDiameter22 mm: . Height: 20.5 mm. Diameter: 22 mm. Construction type: Cylindrical. Note: Lubricate thread before mounting the screw.Lightly oil read/write tag screws and store in dry conditions at room temperature.

Brand	Pepperl Fuchs
Lifecycle status	active
