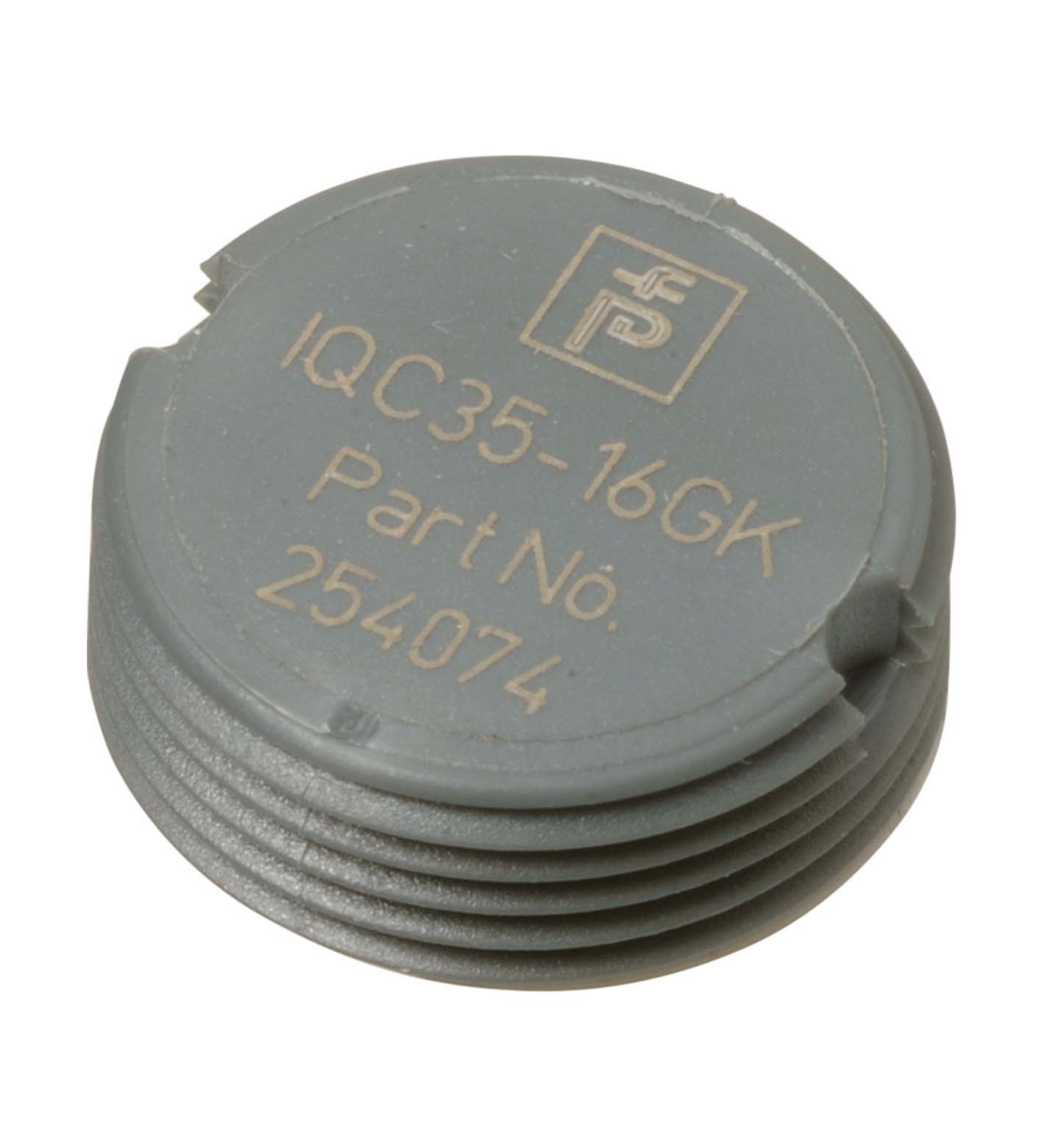

IQC35-16GK

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: ICODE SLI-S (NXP). EEPROM: 1280 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles:...

RFID Transponder. Data carrier. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Chip Type: ICODE SLI-S (NXP). EEPROM: 1280 Bit. UID: 64 Bit. Memory organization: 4 bytes/block. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-1 ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP68. Material: . HousingPBTEncapsulation compoundPolyurethane (PUR): . Housing: PBT. Encapsulation compound: Polyurethane (PUR). Installation: . In metalyesOn metalyesIn airyes: . In metal: yes. On metal: yes. In air: yes. Mass: 1.5 g. Dimensions: . Height6 mmDiameter16 mm: . Height: 6 mm. Diameter: 16 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
