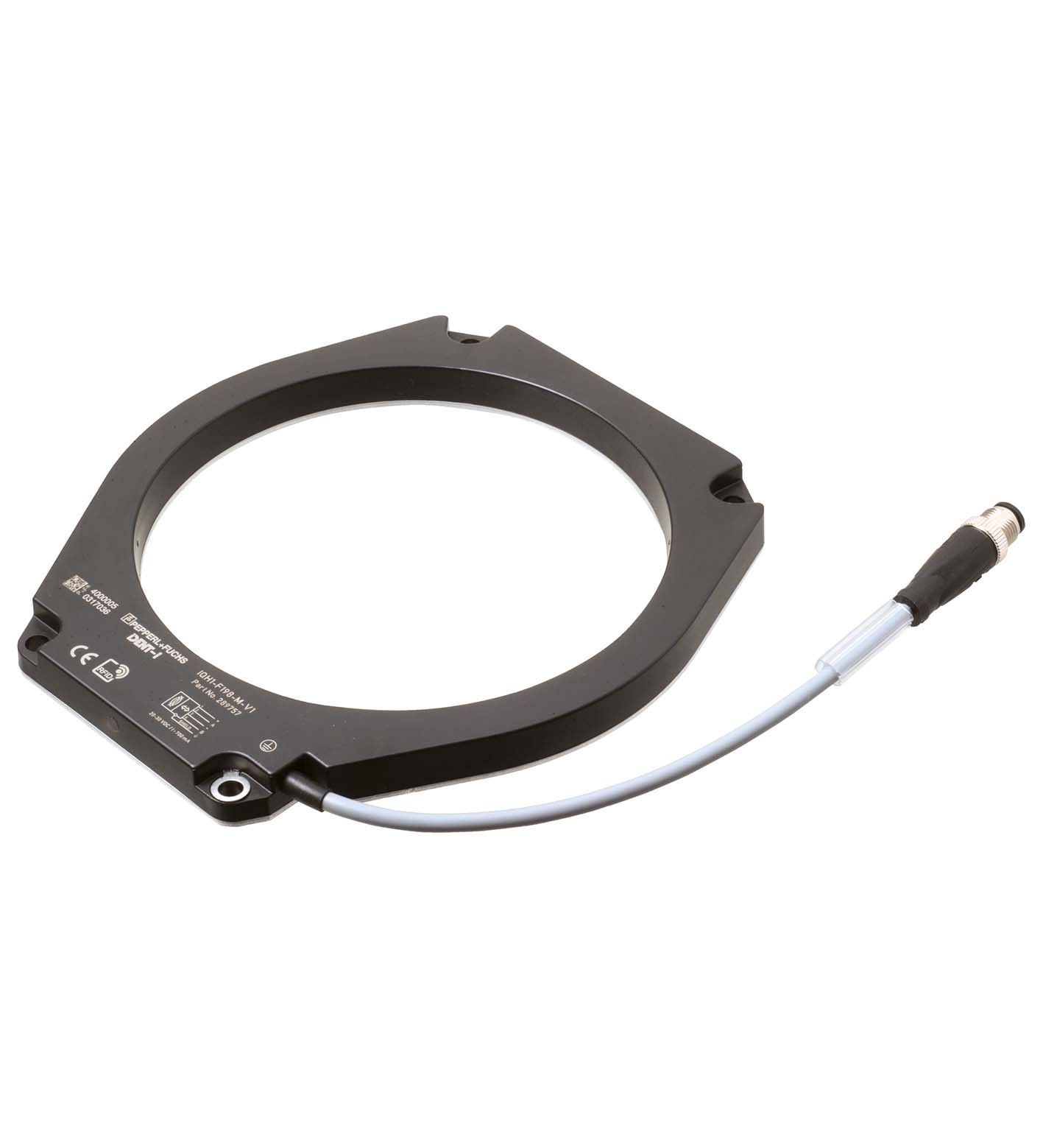

IQH1-F198-M-V1

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 150 mmWrite distanc...

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 150 mmWrite distance0 ... 150 mmWidthmax. 145 mm: . Read distance: 0 ... 150 mm. Write distance: 0 ... 150 mm. Width: max. 145 mm. MTBF: 365 a (Operation at +40 °C). LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.3 W. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. MIC approval: AC-21095. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPA 6.6BaseAluminumEncapsulation compoundWEVO 403FL/300: . Housing: PA 6.6. Base: Aluminum. Encapsulation compound: WEVO 403FL/300. Installation: . Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 150 mm: . Distance between two heads: Multiplex on: ≥ 100 mm Multiplex off: ≥ 150 mm. Mass: approx. 250 g. Dimensions: . Height12 mmWidth175 mmLength190.5 mm: . Height: 12 mm. Width: 175 mm. Length: 190.5 mm. Cable length: 20 cm

Brand	Pepperl Fuchs
Lifecycle status	active
