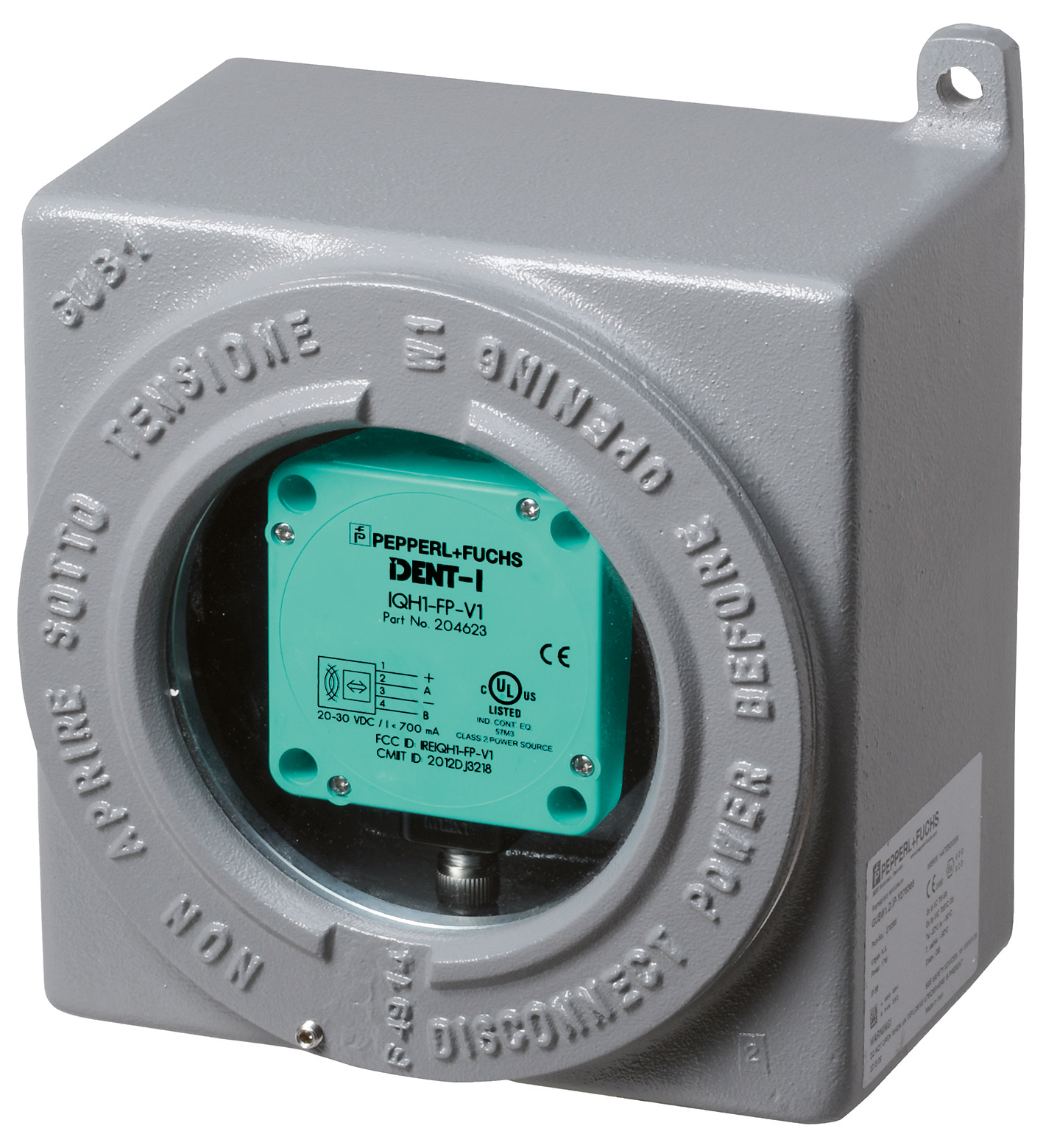

IQH1-FP-V1-Ex GUBW1

RFID read/write device hazardous area. HF RFID read/write device for hazardous areas, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. LED green/yellow: gr...

RFID read/write device hazardous area. HF RFID read/write device for hazardous areas, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.3 W. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. IECEx approval: IECEx INE 14.0042X. ATEX approval: INERIS 14 ATEX 0035X Device type: GUBW1.D.CP-IQH1-FP-V1 Device number: 70117532. Marking II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db: . Marking: II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP66. Connection: Terminal block with screw connectionMax. clamping range 0.13 mm² ... 2.5 mm² M20 barrier gland for unarmored cables, clamping range 3 mm ... 8.5 mm. Material: . HousingSeawater-resistant aluminum: . Housing: Seawater-resistant aluminum. Installation: . Distance between two headsMultiplex on: ≥ 155 mm Multiplex off: ≥ 350 mm: . Distance between two heads: Multiplex on: ≥ 155 mm Multiplex off: ≥ 350 mm. Mass: approx. 6900 g. Dimensions: . Height134 mmWidth202 mmLength279 mm: . Height: 134 mm. Width: 202 mm. Length: 279 mm

Brand	Pepperl Fuchs
Lifecycle status	active
