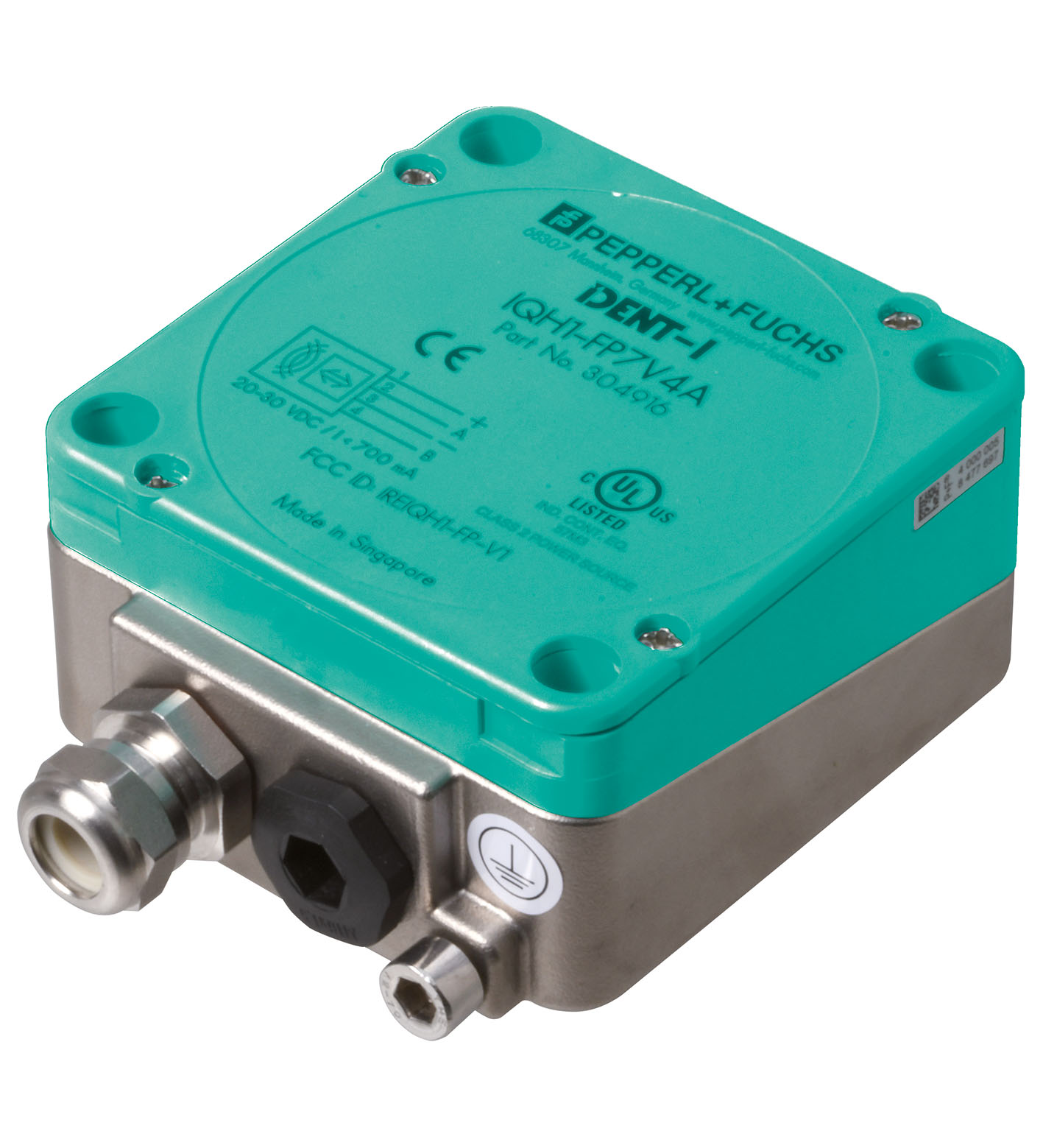

IQH1-FP7V4A

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 130 mmWrite distanc...

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 130 mmWrite distance0 ... 130 mmWidthmax. 100 mm: . Read distance: 0 ... 130 mm. Write distance: 0 ... 130 mm. Width: max. 100 mm. UL File Number: E87056. MTBF: 110 a (Operation at +40 °C). LED green/yellow: green: power ongreen flashing: read/write attempt performedyellow: data carrier detected. Power consumption: ≤ 1.3 W. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP69K. Connection: terminal compartment, ≤ 2.5 mm2 conductor csa. Material: . HousingPBTBasestainless steel V4AEncapsulation compoundCY 221/HY 2966: . Housing: PBT. Base: stainless steel V4A. Encapsulation compound: CY 221/HY 2966. Installation: . Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 150 mm: . Distance between two heads: Multiplex on: ≥ 100 mm Multiplex off: ≥ 150 mm. Mass: approx. 700 g. Dimensions: . Height40 mmWidth80 mmLength108.5 mm: . Height: 40 mm. Width: 80 mm. Length: 108.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
