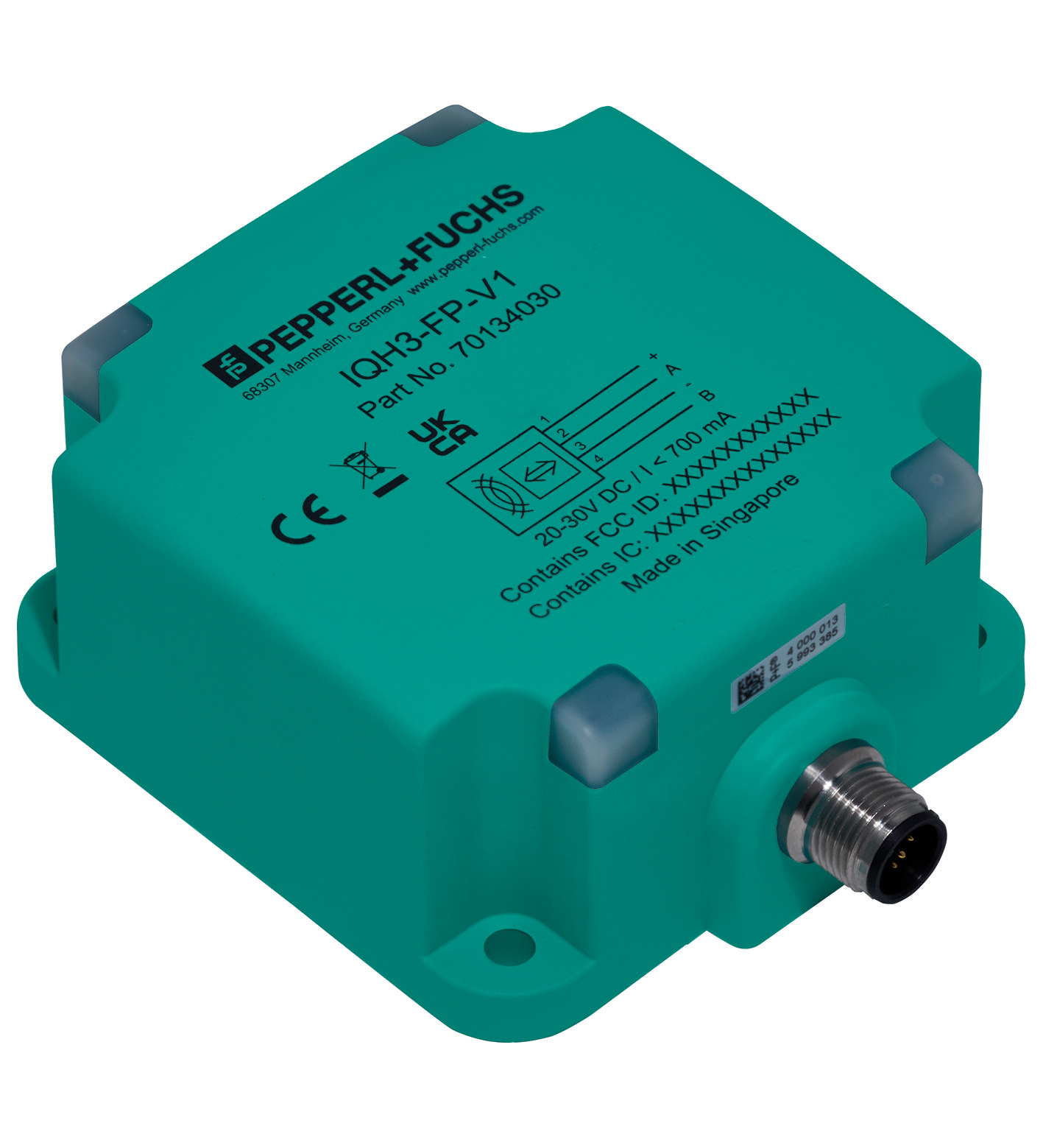

IQH3-FP-V1

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 300 mm (see manual)...

RFID read/write device. HF RFID read/write device, ISO 15693, for IDENT<i>Control</i>. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 300 mm (see manual)Write distance0 ... 300 mm (see manual)Widthmax. 300 mm: . Read distance: 0 ... 300 mm (see manual). Write distance: 0 ... 300 mm (see manual). Width: max. 300 mm. MTBF: 97 a (Operation at +40 °C). LED green: Power on. LED yellow: Read/write operation successful. LED red: status display. LED blue: Transmission mode. Current consumption: ≤ 700 mA. Supply: from the IDENTControl. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. UL approval: E468231 cULus Listed, Class 2 Power Source, Type 1 enclosure. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. KCC approval: R-R-PF1-IQH3-FP-V1. MIC approval: AC-25117. ACMA approval: CERT-7285. WPC approval: ETA-SD-20230807834. Radio approval: USA: Contains FCC ID IREIQR3FPCanada: Contains IC 7037A-IQR3FP. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F) (Operation with nontransmission periods, adjustable) -25 ... 55 °C (-13 ... 131 °F) (Continuous transmission mode). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPA 6.6Encapsulation compoundWEVO 403FL/300: . Housing: PA 6.6. Encapsulation compound: WEVO 403FL/300. Installation: . Distance between two headsMultiplex on: ≥ 100 mm Multiplex off: ≥ 750 mm: . Distance between two heads: Multiplex on: ≥ 100 mm Multiplex off: ≥ 750 mm. Mass: 385 g. Dimensions: . Height40 mmWidth80 mmLength80 mm: . Height: 40 mm. Width: 80 mm. Length: 80 mm

Brand	Pepperl Fuchs
Lifecycle status	active
