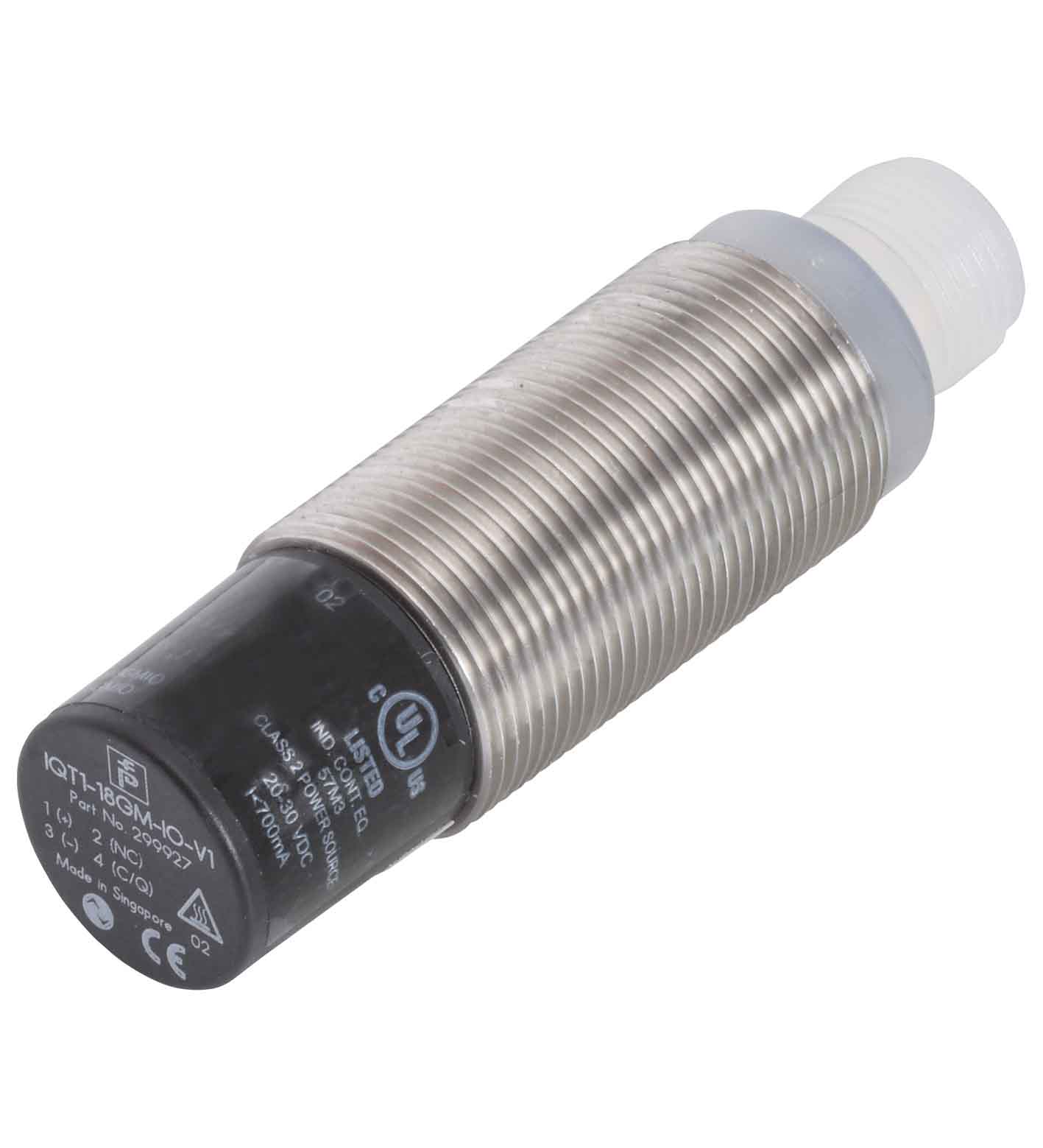

IQT1-18GM-IO-V1

RFID read/write device. HF RFID read/write device with IO-Link in accordance with ISO 15693. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 50 mmWrite di...

RFID read/write device. HF RFID read/write device with IO-Link in accordance with ISO 15693. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 50 mmWrite distance0 ... 50 mmWidthmax. 45 mm: . Read distance: 0 ... 50 mm. Write distance: 0 ... 50 mm. Width: max. 45 mm. MTBF: 140 a (Operation at +40 °C). LED red/green: Green: power onFlashing green: IO-Link communicationFlashing red/green: IO-Link communication interrupted. LED blue/yellow: Blue: Write/read attempt performedYellow: Read/write tag detected. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 70 mA (at 24 V DC). Power consumption: ≤ 2 W. Interface type: IO-Link. IO-Link revision: 1.1. Process data: Input 32 Byte Output 32 Byte. Vendor ID: 1 (0x0001). Device ID: 4194561 (0x400101). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 4 ms. SIO mode support: no. Compatible master port type: Class A Class B. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. Communication interface: IEC 61131-9 / IO-Link V1.1.2. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. UL approval: E87056 cULus Listed, Class 2 Power Source, Type 1 enclosure. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. KCC approval: R-R-PF1-IQT1-18GM-IOV1. MIC approval: approval not required. Radio approval: USA: FCC IREIQT118GMIOCanada: IC 7037A-IQT118GMIO. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPBT/stainless steelEncapsulation compoundCY 221/HY 2966: . Housing: PBT/stainless steel. Encapsulation compound: CY 221/HY 2966. Installation: non-flush. Distance between two heads≥ 80 mm: . Distance between two heads: ≥ 80 mm. Mass: approx. 25 g. Dimensions: . Length63.5 mmDiameter18 mm: . Length: 63.5 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
