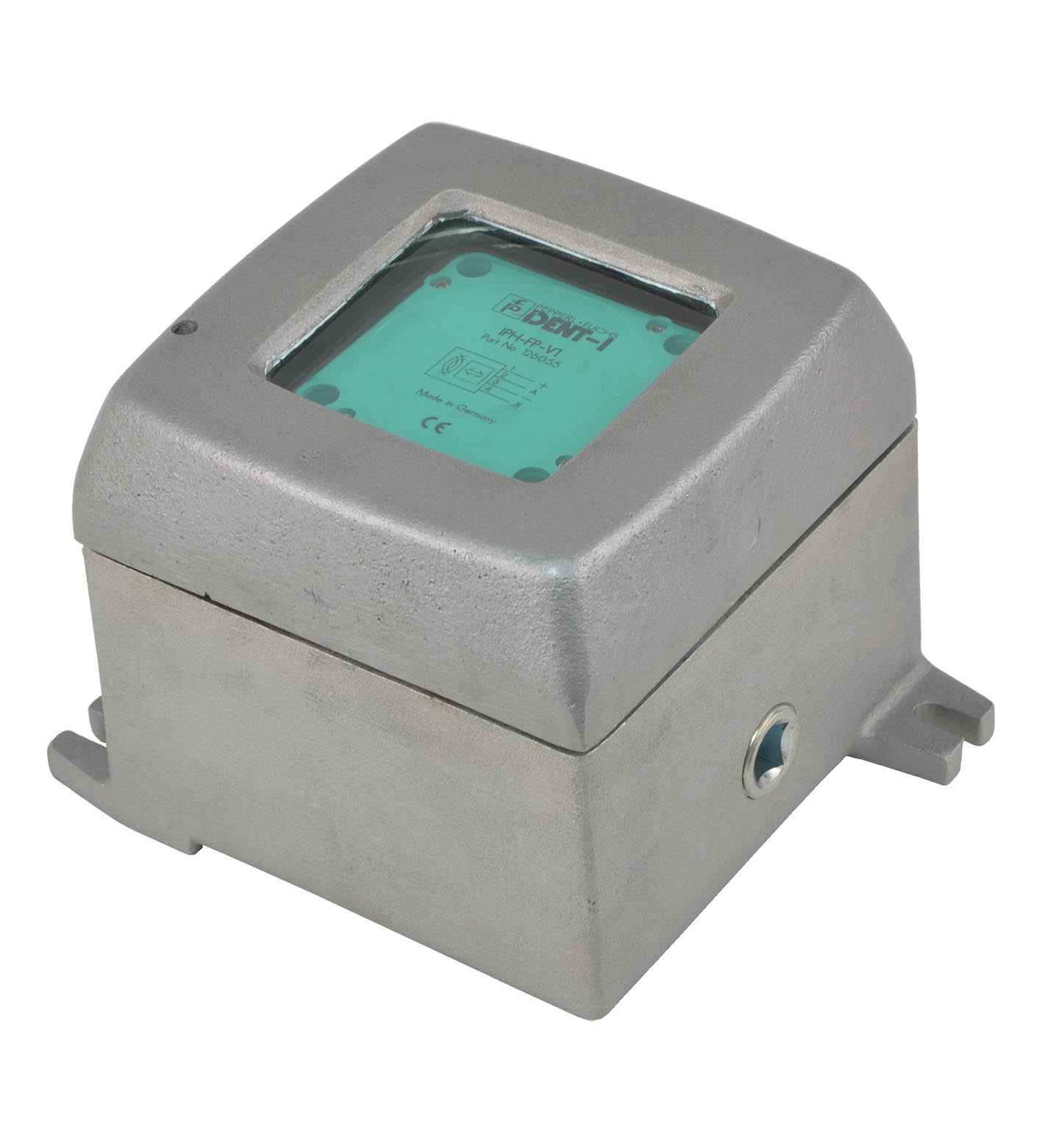

IQT1-FP-IO-C1D1
RFID read/write device hazardous area. RFID read/write device hazardous area. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 44 mmWrite distance0 ... 44...
RFID read/write device hazardous area. RFID read/write device hazardous area. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 44 mmWrite distance0 ... 44 mmWidthmax. 48 mm: . Read distance: 0 ... 44 mm. Write distance: 0 ... 44 mm. Width: max. 48 mm. UL File Number: E254700. MTBF: 140 a (Operation at +40 °C). LED red/green: Green: power onFlashing green: IO-Link communicationFlashing red/green: IO-Link communication interrupted. LED blue/yellow: Blue: Write/read attempt performedYellow: Read/write tag detected. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS. Power consumption: ≤ 2 W. Interface type: IO-Link. IO-Link revision: 1.1. Process data: Input 32 Byte Output 32 Byte. Vendor ID: 1 (0x0001). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 4 ms. SIO mode support: no. Compatible master port type: Class A Class B. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. UL approval: Class I, Division 1, Groups C, D. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. Radio approval: USA: FCC IREIQT1FPIOCanada: 7037A-IQT1FPIO. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: NEMA Type 4, 7, 9. Connection: Terminals. Material: . Housingdiecast aluminumBasediecast aluminum: . Housing: diecast aluminum. Base: diecast aluminum. Installation: . Distance between two heads≥ 150 mm: . Distance between two heads: ≥ 150 mm. Mass: approx. 4080 g. Dimensions: . Height140 mmWidth157 mmLength157 mm: . Height: 140 mm. Width: 157 mm. Length: 157 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
