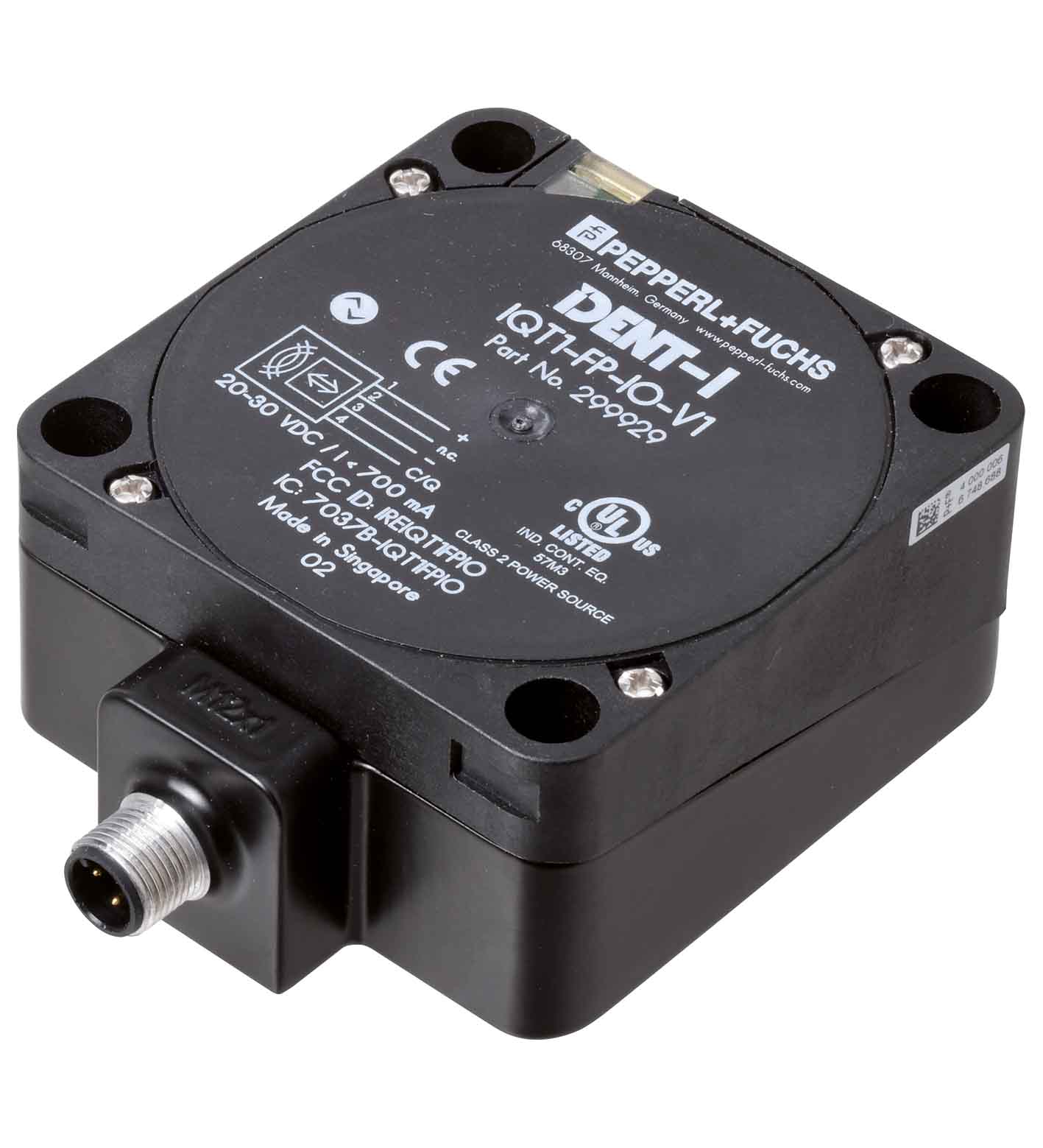

IQT1-FP-IO-V1
RFID read/write device. HF RFID read/write device with IO-Link in accordance with ISO 15693. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 130 mmWrite d...
RFID read/write device. HF RFID read/write device with IO-Link in accordance with ISO 15693. Operating frequency: 13.56 MHz. Transfer rate: 26 kBit/s. Sensing range: . Read distance0 ... 130 mmWrite distance0 ... 130 mmWidthmax. 100 mm: . Read distance: 0 ... 130 mm. Write distance: 0 ... 130 mm. Width: max. 100 mm. MTBF: 140 a (Operation at +40 °C). LED red/green: Green: power onFlashing green: IO-Link communicationFlashing red/green: IO-Link communication interrupted. LED blue/yellow: Blue: Write/read attempt performedYellow: Read/write tag detected. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 70 mA (at 24 V DC). Power consumption: ≤ 2 W. Interface type: IO-Link. IO-Link revision: 1.1. Process data: Input 32 Byte Output 32 Byte. Vendor ID: 1 (0x0001). Device ID: 4194561 (0x400101). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 4 ms. SIO mode support: no. Compatible master port type: Class A Class B. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364: . Directive 2014/53/EU: EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. Communication interface: IEC 61131-9 / IO-Link V1.1.2. RFID: ISO/IEC 15693-2 ISO/IEC 15693-3 ISO/IEC 18000-3. UL approval: E87056 cULus Listed, Class 2 Power Source, Type 1 enclosure. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. MIC approval: AC-21098. Radio approval: USA: FCC IREIQT1FPIOCanada: 7037A-IQT1FPIO. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPBTBasediecast aluminumEncapsulation compoundCY 221/HY 2966: . Housing: PBT. Base: diecast aluminum. Encapsulation compound: CY 221/HY 2966. Installation: . Distance between two heads≥ 150 mm: . Distance between two heads: ≥ 150 mm. Mass: approx. 380 g. Dimensions: . Height40 mmWidth80 mmLength108.5 mm: . Height: 40 mm. Width: 80 mm. Length: 108.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
