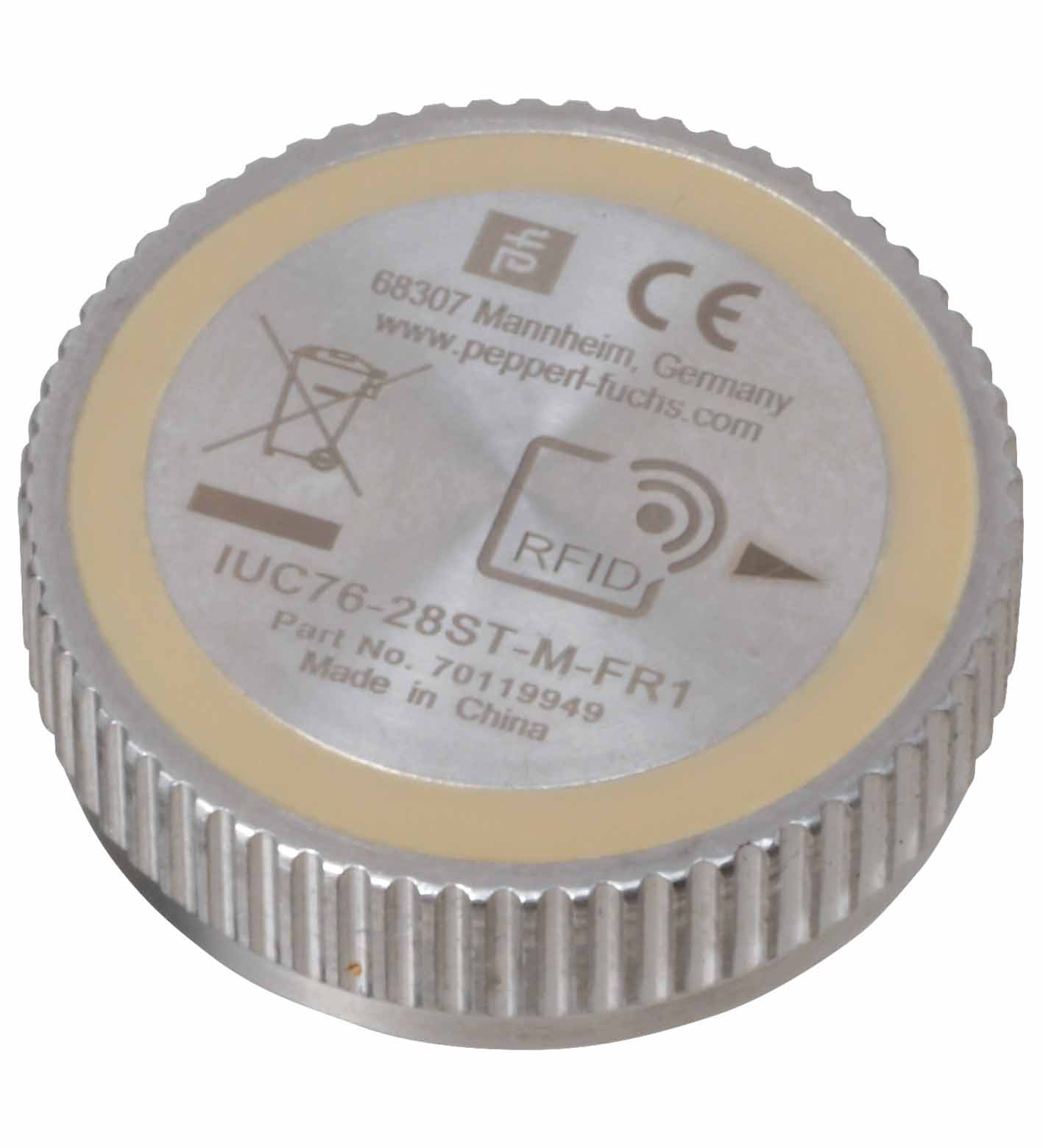

IUC76-28ST-M-FR1

RFID Transponder. RFID Transponder. Operating frequency: 865 ... 868 MHz. Polarization: linear. Chip Type: Higgs-3 (Alien). Memory Bank 00 (Reserved): 64 Bit. Memory Bank 01 (EPC/UII): 96 ... 480 Bit....

RFID Transponder. RFID Transponder. Operating frequency: 865 ... 868 MHz. Polarization: linear. Chip Type: Higgs-3 (Alien). Memory Bank 00 (Reserved): 64 Bit. Memory Bank 01 (EPC/UII): 96 ... 480 Bit. Memory Bank 10 (TID): 96 Bit. Memory Bank 11 (User memory): 512 Bit. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 50 years @ 77 °C (170.6 °F). Radio equipment: . Directive 2014/53/EUEN 302208: . Directive 2014/53/EU: EN 302208. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-63. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -50 ... 250 °C (-58 ... 482 °F). Degree of protection: IP69K. Material: . HousingStainless steel: . Housing: Stainless steel. Installation: . In metalyes: . In metal: yes. Mass: 25.4 g. Dimensions: . Height8.5 mmHeight tolerance± 0.1 mmDiameter28.3 mmDiameter tolerance± 0.1 mm: . Height: 8.5 mm. Height tolerance: ± 0.1 mm. Diameter: 28.3 mm. Diameter tolerance: ± 0.1 mm. Construction type: Cylindrical. Note: observe mounting instructions

Brand	Pepperl Fuchs
Lifecycle status	active
