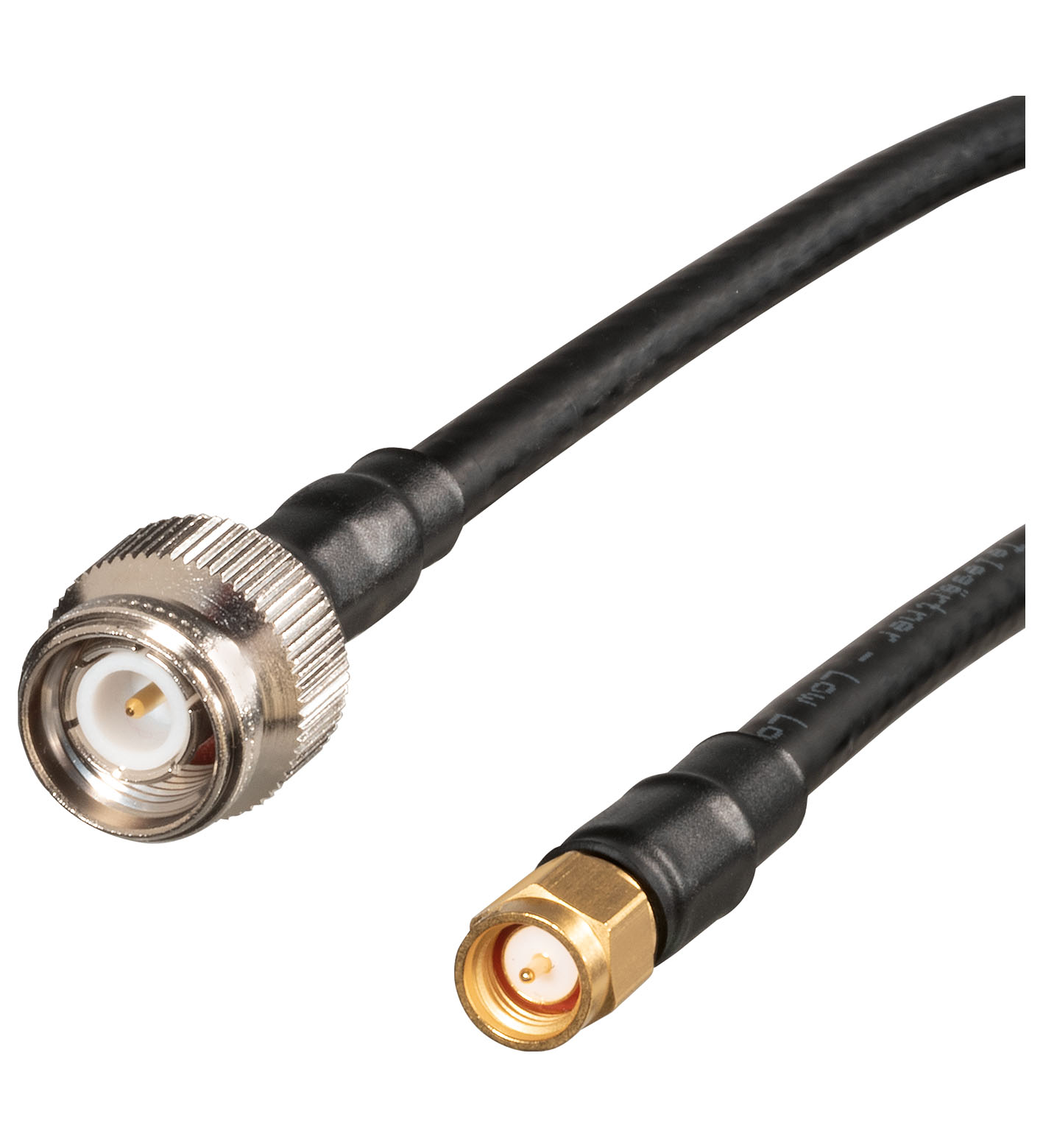

IUK-SMA-6M-LL240F-FRNC-TNC
Coaxial Cable. Adapter cable SMA plug straight to TNC plug straight, FRNC coaxial cable black, UV resistant. Connector 1: . Construction typeSMA connector 1/4-36 UNS-2BStylestraightLockingscrew connec...
Coaxial Cable. Adapter cable SMA plug straight to TNC plug straight, FRNC coaxial cable black, UV resistant. Connector 1: . Construction typeSMA connector 1/4-36 UNS-2BStylestraightLockingscrew connection: . Construction type: SMA connector 1/4-36 UNS-2B. Style: straight. Locking: screw connection. Connector 2: . Construction typeTNC connector 7/16-28 UNEFStylestraightLockingscrew connection: . Construction type: TNC connector 7/16-28 UNEF. Style: straight. Locking: screw connection. Impedance: 50 Ω ± 2 Ω. Signal attenuation: 29.1 dB/100 m @ 900 MHz. Plug connection: SMA connector : IEC 60169-15 TNC connector : IEC 60169-17. Flammability: IEC 60332-1-2. Operating temperature: -40 ... 70 °C (-40 ... 158 °F). Connector 1: . Tightening torque0.79 ... 1.13 NmTool installationhexagon nut SW = 8 mmMating cyclesmin. 500: . Tightening torque: 0.79 ... 1.13 Nm. Tool installation: hexagon nut SW = 8 mm. Mating cycles: min. 500. Connector 2: . Tightening torque0.46 ... 0.69 NmTool installationstraight knurlingMating cyclesmin. 500: . Tightening torque: 0.46 ... 0.69 Nm. Tool installation: straight knurling. Mating cycles: min. 500. Cable: . Sheath diameter5.5 mmBending radius≥ 44 mm , movable installation ≥ 22 mm , fixed installationSheath colorblack (similar to RAL 7021)Conductor constructioninner conductor copper, stranded wire ∅ 1.44 mm outer conductor aluminium foil tinned copper braiding ∅ 4.2 mmCore constructioncoaxialLengthL6 m: . Sheath diameter: 5.5 mm. Bending radius: ≥ 44 mm , movable installation ≥ 22 mm , fixed installation. Sheath color: black (similar to RAL 7021). Conductor construction: inner conductor copper, stranded wire ∅ 1.44 mm outer conductor aluminium foil tinned copper braiding ∅ 4.2 mm. Core construction: coaxial. Length: 6 m. Mass: 290.5 g. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealsiliconeContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: silicone. Contact surface: gold plated (Au). Connector 2: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealsiliconeContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: silicone. Contact surface: gold plated (Au). Cable: . SheathingFRNCCore insulationPEUV resistanceyesFlammabilityflame retardant: . Sheathing: FRNC. Core insulation: PE. UV resistance: yes. Flammability: flame retardant
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
