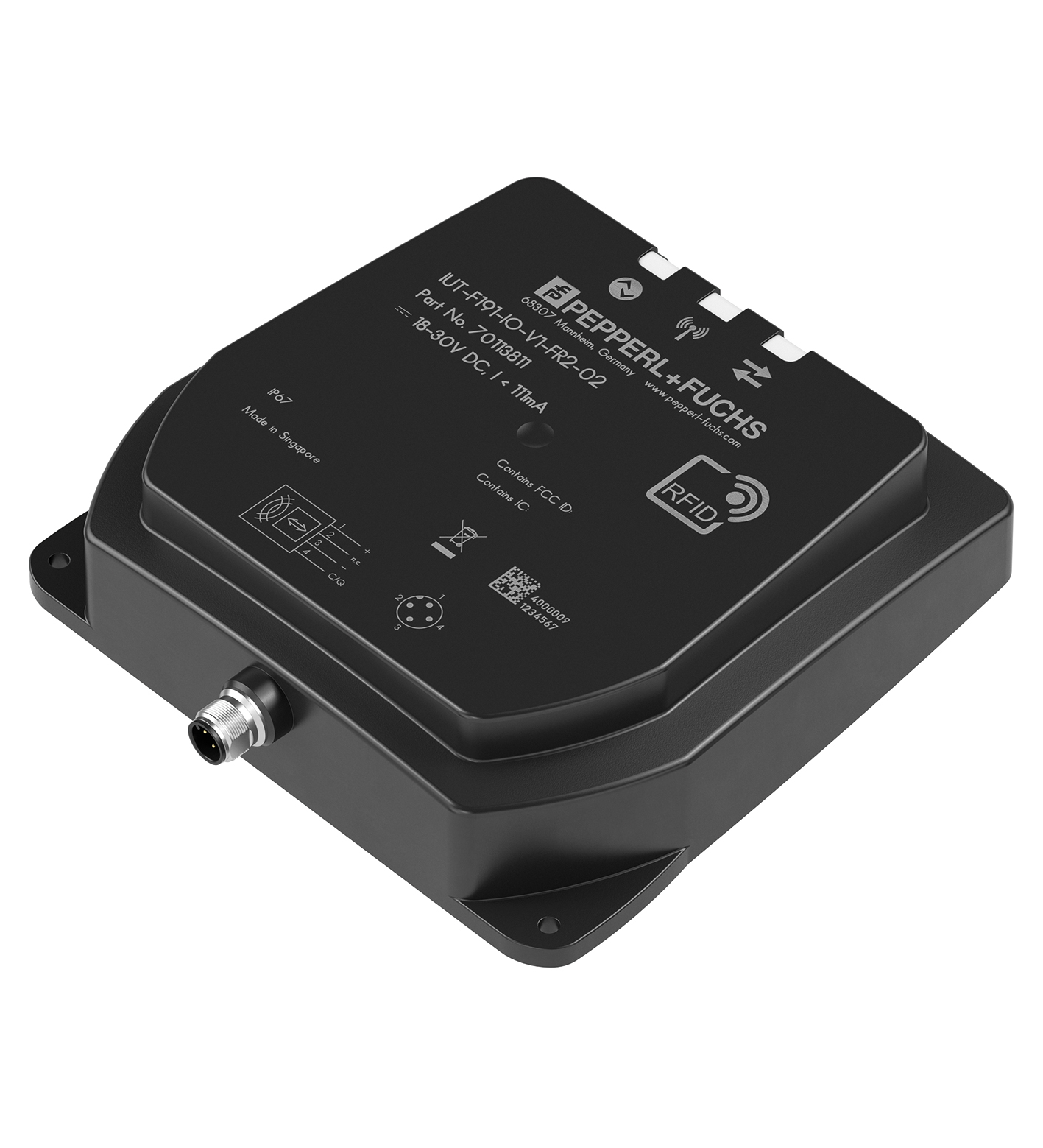

IUT-F191-IO-V1-FR2-02

RFID read/write device. UHF RFID read/write device with IO-Link, USA, Canada and Mexico. Operating frequency: 902 … 928 MHz: USA, Canada, MexicoTransmission licenses for other countries on request. Em...

RFID read/write device. UHF RFID read/write device with IO-Link, USA, Canada and Mexico. Operating frequency: 902 … 928 MHz: USA, Canada, MexicoTransmission licenses for other countries on request. Emitted power: 3 … 150 mW EIRP adjustable. UL File Number: E468231. MTBF: 127 a (Operation at +40 °C). LED green/red: Solid green: Ready for operation, no IO-Link communicationFlashing green (1 Hz): IO-Link operation. LED yellow: Read/write operation successful. LED blue: Transmission mode. Operating voltage: 18 ... 30 V DC (IO-Link) ; Class 2, LEC or LPS. Current consumption: ≤ 90 mA ( at 24 V DC ). Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Process data: Input 32 Byte Output 32 Byte. Vendor ID: 1 (0x0001). Device ID: 4194818 (0x400202). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 4 ms. SIO mode support: no. Compatible master port type: Class A Class B. Degree of protection: EN 60529. Communication interface: IEC 61131-9 / IO-Link V1.1.3. RFID: ISO/IEC 18000-63. UL approval: UL 61010-1 Protection class is not included in the UL approval. The protection class is tested by Pepperl+Fuchs SE.. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. IFT approval: . CertificatePEPEIU24-05718: . Certificate: PEPEIU24-05718. Radio approval: USA: Contains FCC IREIURF191Canada: Contains 7037A-IURF191. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F) (Operation with nontransmission periods) -25 ... 60 °C (-13 ... 140 °F) (Continuous transmission mode). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingPA 6.6BaseAluminum: . Housing: PA 6.6. Base: Aluminum. Mass: 700 g. Dimensions: . Height47 mmWidth165 mmLength165 mm: . Height: 47 mm. Width: 165 mm. Length: 165 mm

Brand	Pepperl Fuchs
Lifecycle status	active
