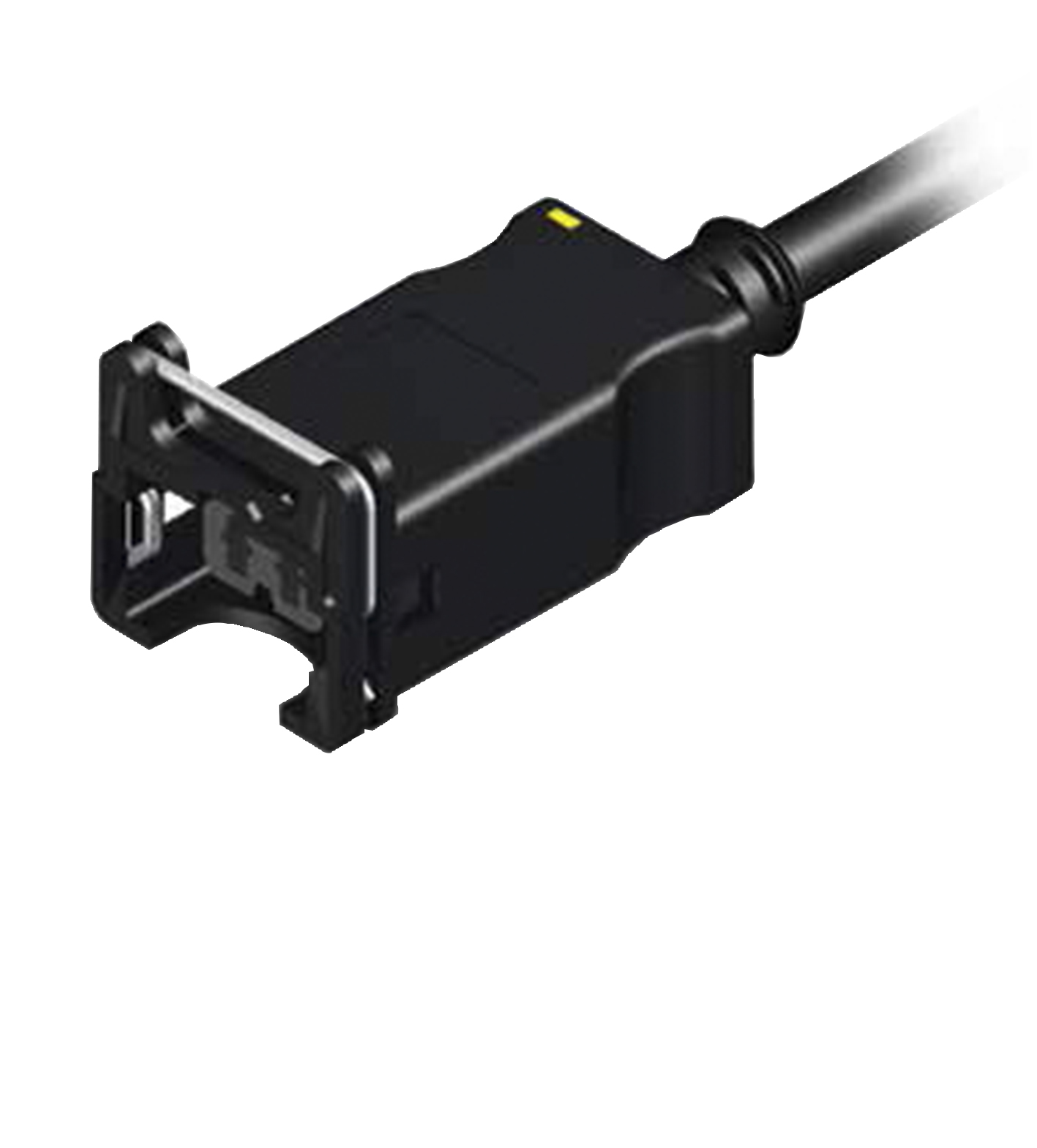

JPT2-G/V2-BK5M-PUR

Female cordset. Single-ended female cordset, Junior Power Timer, LED, 2-pin, PUR cable. Connector 1: . ConnectionsocketConstruction typeJunior Power TimerStylestraightNumber of pins2: . Connection: so...

Female cordset. Single-ended female cordset, Junior Power Timer, LED, 2-pin, PUR cable. Connector 1: . ConnectionsocketConstruction typeJunior Power TimerStylestraightNumber of pins2: . Connection: socket. Construction type: Junior Power Timer. Style: straight. Number of pins: 2. Connector 2: . Connectioncable end: . Connection: cable end. LED yellow: Operating display. Operating voltage: 10 ... 30 V. Operating current: max. 2 A. Power consumption: 60 W / 60 VA. Degree of protection: EN 60529. Flammability: UL 758 / 1581 , DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Oil resistance: DIN EN 60811-2-1. Ambient temperature: . Plug connector-20 ... 80 °C (-4 ... 176 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -20 ... 80 °C (-4 ... 176 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Plug connector: . Loosening protectionLocking spring: . Loosening protection: Locking spring. Degree of protection: IPX 4K. Cable: . Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath colorblack (similar to RAL 7021)Number of cores2Core cross section0.75 mm2Cores colorCore 1: brown Core 2: blueCore construction42 x 0.15 mm ∅LengthL5 mCable codeLi 9Y 11Y 2 x 0,75: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath color: black (similar to RAL 7021). Number of cores: 2. Core cross section: 0.75 mm2. Cores color: Core 1: brown Core 2: blue. Core construction: 42 x 0.15 mm ∅. Length: 5 m. Cable code: Li 9Y 11Y 2 x 0,75. Drag chain suitability: . Drag chain cyclesmin. 40000000Motion velocitymax. 3 m/sTraverse distancemax. 10 mAccelerationmax. 10 m/s2: . Drag chain cycles: min. 40000000. Motion velocity: max. 3 m/s. Traverse distance: max. 10 m. Acceleration: max. 10 m/s2. Mass: 183 g. Halogen-free: yes. Plug connector: . BodyPA, blackSealTPUContact surfaceCuSn , tinnedFlammabilityHB: . Body: PA, black. Seal: TPU. Contact surface: CuSn , tinned. Flammability: HB. Cable: . SheathingPUR based on polyetherCore insulationPPOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityV-2: . Sheathing: PUR based on polyether. Core insulation: PP. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
