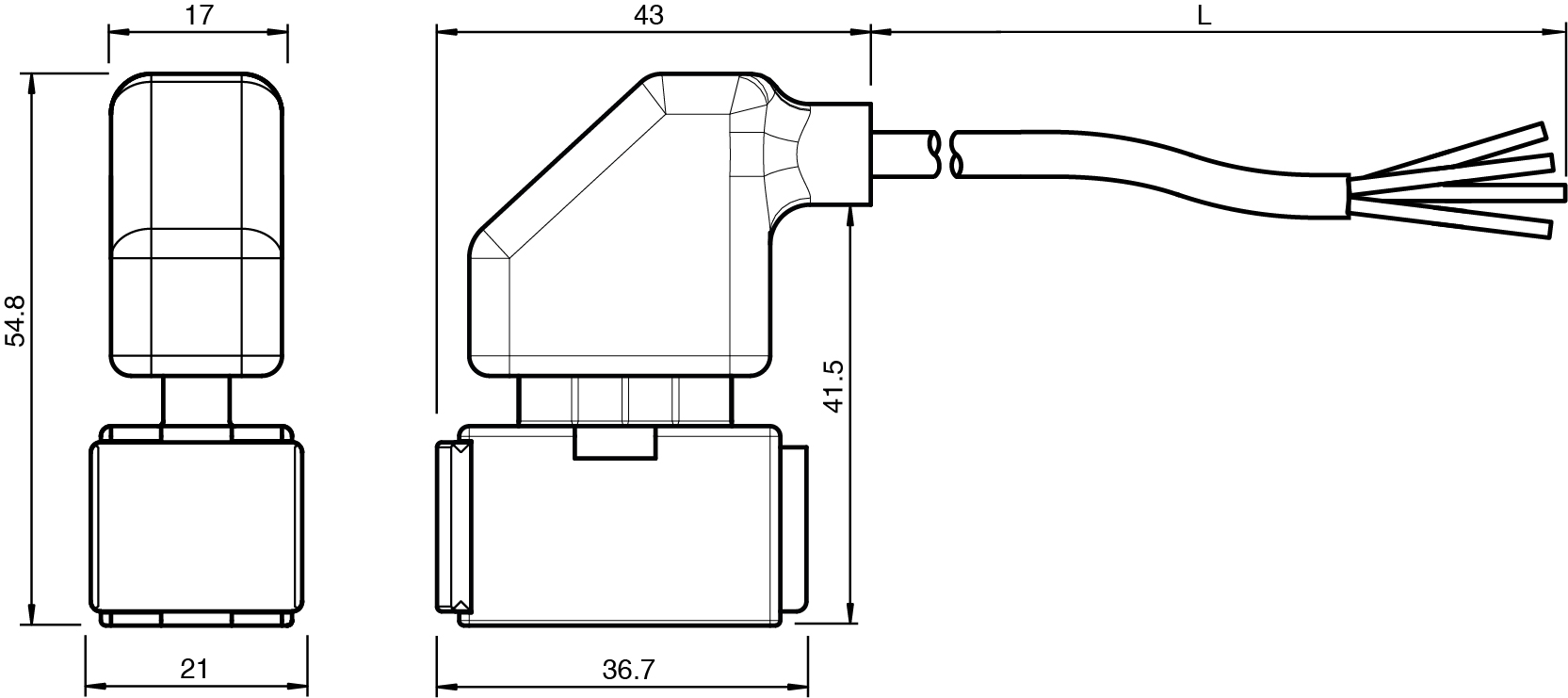

JPT4-W-8M-PVC

Female cordset. Female cordset single-ended Junior Power Timer angled, 4-pin, PVC cable grey. Connector 1: . ConnectionsocketConstruction typeJunior Power TimerStyleangledNumber of pins4: . Connection...

Female cordset. Female cordset single-ended Junior Power Timer angled, 4-pin, PVC cable grey. Connector 1: . ConnectionsocketConstruction typeJunior Power TimerStyleangledNumber of pins4: . Connection: socket. Construction type: Junior Power Timer. Style: angled. Number of pins: 4. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: 12 ... 14 V AC/DC. Operating current: max. 13 A. Degree of protection: EN 60529. Product standard: on the basis of IEC 60227-5 and DIN EN 50525-2-51. Flammability: IEC 60332-1-2. Ambient temperature: . Plug connector-5 ... 70 °C (23 ... 158 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Plug connector: -5 ... 70 °C (23 ... 158 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Plug connector: . Loosening protectionsliding lock: . Loosening protection: sliding lock. Degree of protection: IP69K. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.2 mmBending radius> 15 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorgrey (similar to RAL 7001)Number of cores4Core cross section0.75 mm2Cores colorCore 1: brown Core 2: black Core 3: grey Core 4: blueLengthL8 mCable codeLi YY 4 x 0,75: . Sheath diameter: 6.2 mm. Bending radius: > 15 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath color: grey (similar to RAL 7001). Number of cores: 4. Core cross section: 0.75 mm2. Cores color: Core 1: brown Core 2: black Core 3: grey Core 4: blue. Length: 8 m. Cable code: Li YY 4 x 0,75. Plug connector: . BodyTPU, black: . Body: TPU, black. Cable: . SheathingPVCCoresbare copper (Cu)Core insulationPVCFlammabilityflame-resistant: . Sheathing: PVC. Cores: bare copper (Cu). Core insulation: PVC. Flammability: flame-resistant

Brand	Pepperl Fuchs
Lifecycle status	active
