K-DUCT-BU-UPR-03

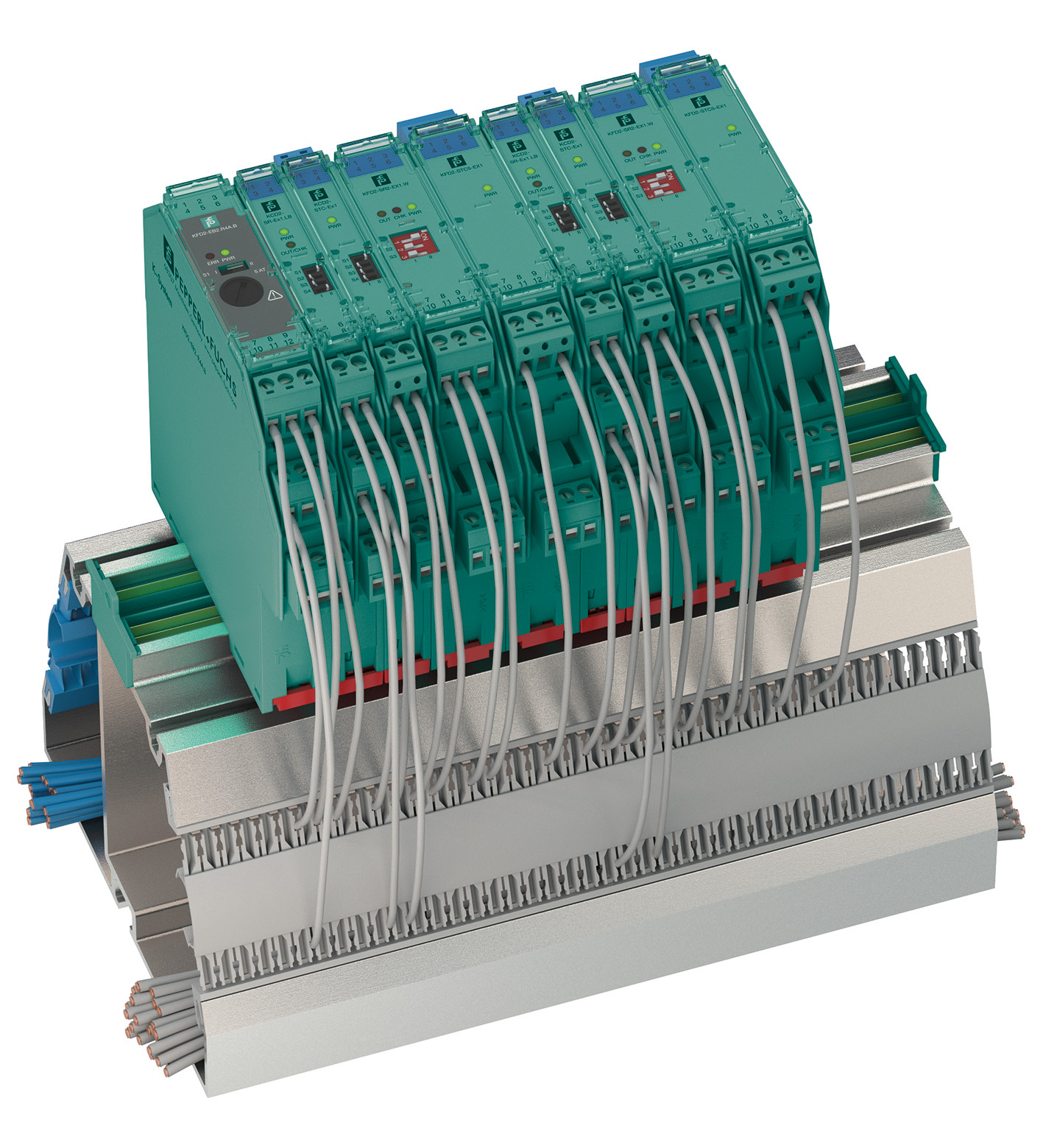

Profile Rail. Cable trunking with integrated Power Rail UPR-03, Safe spacious separation of safe and hazardous signals, No additional cable guides necessary, Provides DC supply voltage to all equipped...

Profile Rail. Cable trunking with integrated Power Rail UPR-03, Safe spacious separation of safe and hazardous signals, No additional cable guides necessary, Provides DC supply voltage to all equipped K-System modules, Standard length 1.8 m (5.8 ft), simple to customize to application space, With end caps UPR-E, cover and mounting aids. Connection: 3 conductors. Field sidewiring comb , blueControl sidewiring comb , greySupply2 ConductorsFault output1 Conductors: . Field side: wiring comb , blue. Control side: wiring comb , grey. Supply: 2 Conductors. Fault output: 1 Conductors. Material: profile rail: aluminumwiring comb: plastic. Mass: approx. 7.3 kg. Dimensions: 130 x 115.8 x 1800 mm (5 x 4.56 x 71 inch). Height115.8 mmWidth130 mmLength1800 mm: . Height: 115.8 mm. Width: 130 mm. Length: 1800 mm. Designation: provided accessories:- end caps UPR-E- cover- mounting aids (glide nuts and glide nut retainers)

Brand	Pepperl Fuchs
Lifecycle status	active
