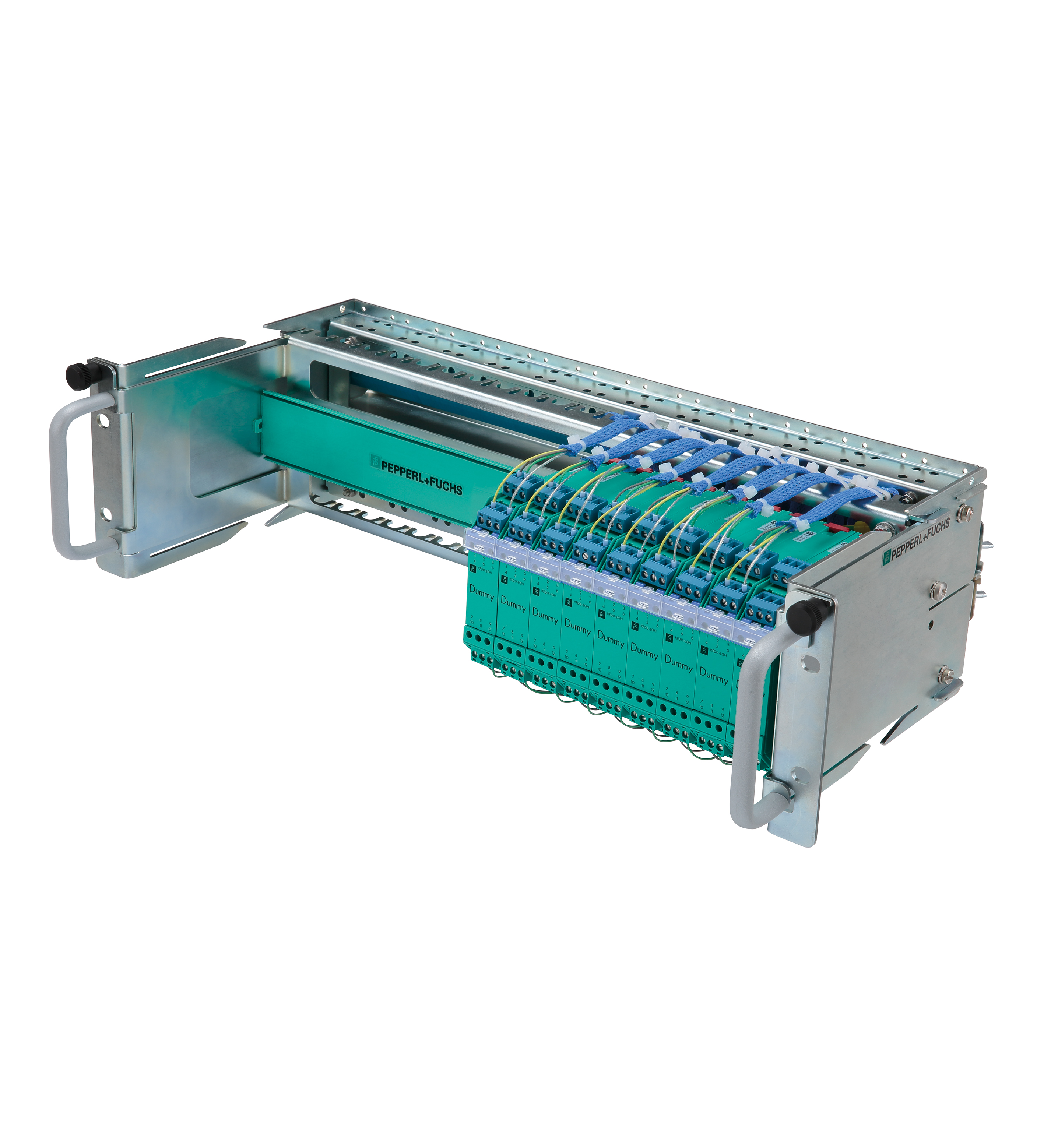

K-RACK.2.**.*.*.KK.01-Y*******

Subrack. Subrack for K-System, Replacement for subrack of the E-System, Max. 33 slots for isolators, Short design (211 mm mounting depth), Connection via terminal blocks, Partial and combined assembly...

Subrack. Subrack for K-System, Replacement for subrack of the E-System, Max. 33 slots for isolators, Short design (211 mm mounting depth), Connection via terminal blocks, Partial and combined assembly possible, Complete wiring according to customer requirements, Allows to retain cable routing in the switch cabinet, No structural changes on the switch cabinet required. Supply: max. 2 , see section application. Isolators: max. 33 , see section application. Connection: isolator power supply via terminal blocks or Power Rail. Nominal voltage: 24 V DC , in consideration of rated voltage of used isolators. Fusing: max. 4 A , in consideration of rated voltage of used isolators. Redundancy: redudnancy possible, depends on the used power feed module. Electromagnetic compatibility: . Directive 2014/30/EUEN 61439-1:2011 (J.9.4.2 b) , EN 61439-2:2011: . Directive 2014/30/EU: EN 61439-1:2011 (J.9.4.2 b) , EN 61439-2:2011. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Connection: . Field sideTerminal blocksControl sideTerminal blocksSupplyTerminal blocks or Power Rail: . Field side: Terminal blocks. Control side: Terminal blocks. Supply: Terminal blocks or Power Rail. Core cross section: field side: max. 1.5 mm2 control side: max. 1.5 mm2 internal signal wiring: 0.25 mm2 supply: max. 1.5 mm2. Material: . Housinggalvanized steelSurfacegalvanized , vibratory finishing: . Housing: galvanized steel. Surface: galvanized , vibratory finishing. Mass: approx. 4 kg , without modules. Dimensions: 485 mm x 132 mm x 255 mm (W x H x D). Height132 mmWidth485 mmDepth255 mm: . Height: 132 mm. Width: 485 mm. Depth: 255 mm. Mounting: slotted hole 8 x 10 mm. Grounding: via front fastening M8 , via lateral fastening on both sides M5. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
