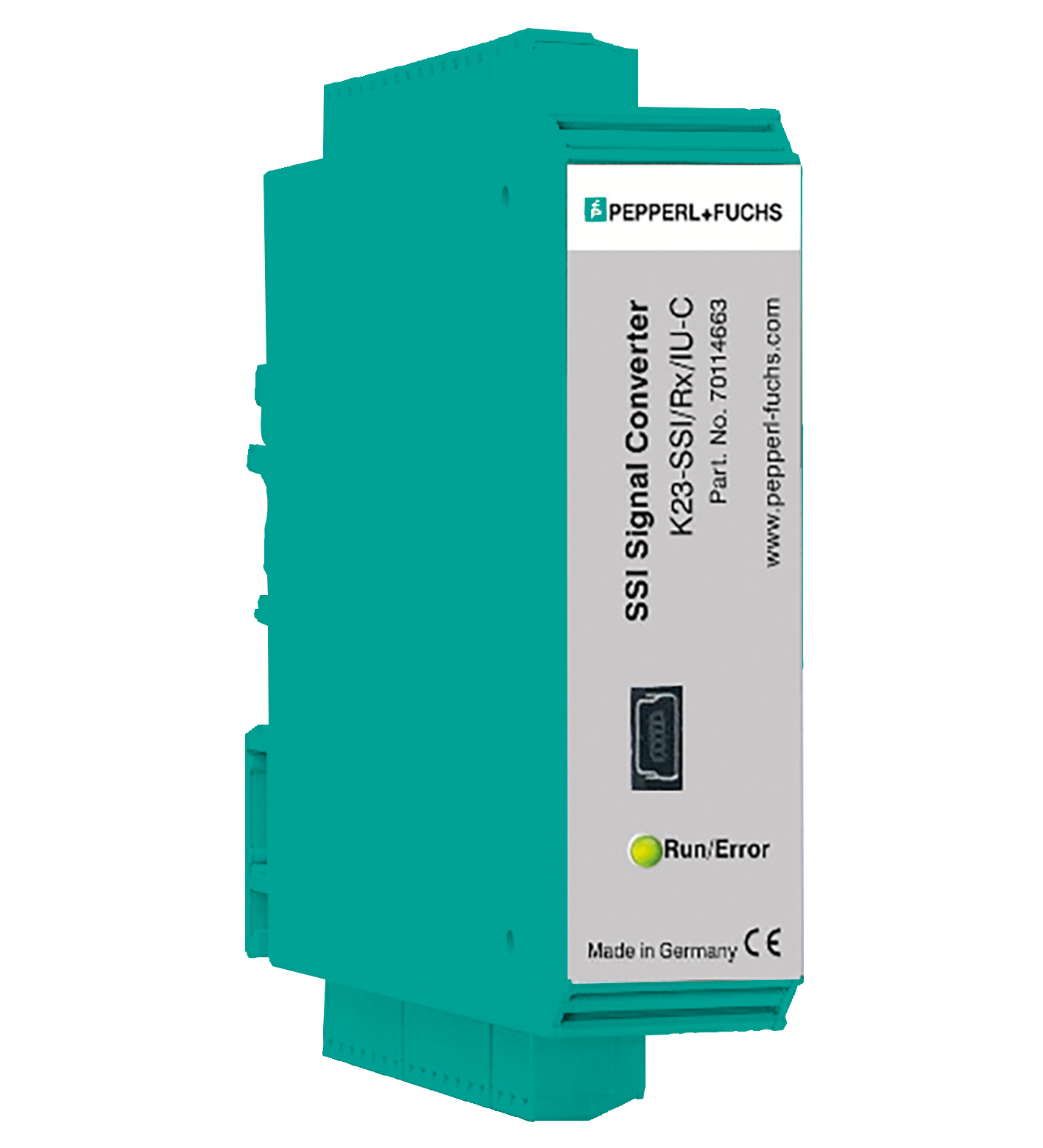

K23-SSI/Rx/IU-C

Signal Converter. Multifunction device with operating modes for incremental rotary encoders, SSI absolute rotary encoders, and rotary encoders with start/stop interface, 16 bit analog output, configur...

Signal Converter. Multifunction device with operating modes for incremental rotary encoders, SSI absolute rotary encoders, and rotary encoders with start/stop interface, 16 bit analog output, configurable for voltage or current operations, USB interface and RS232/RS485 interface for configuration and readout, Extremely short conversion times, User-definable, non-linear characteristic curve with 24 interpolation points, Operating voltage: 18 ... 30 V DC, Input type: Incremental. LED green: status display. Fusing: External: T 0.5 A Reverse polarity protection. Operating voltage: 18 ... 30 V DC. Operating current: approx. 50 mA (Unladen). Supply: Encoder: 5 VDC/24 VDC Max. 250 mA. Interface type: Serial RS-232, RS-485. Transfer rate: 9600, 19200, or 38400 baud. Connection of: Clock, /Clock, Data, /Data. Interface type: SSI Managing or managed operations. Frequency range: max. 1 MHz. Load current: max. 3 mA / Ri > 10 kΩ / 10 pF. Resolution: 10 bits … 32 bits. Data format: Binary code or gray code. Interface type: Start/StopRS422 input: 1 x (Start_Stop, /Start_Stop); 1x (ext. Init_In, ext. /Init_In)RS422 output: 1 x (Init_Out, /Init_Out). Resolution: Depends on the speed of the encoder wave guide. Frequency: Init pulse width: 1 s … 9 µs (adjustable)Init pulse frequency: 62.5 ... 5000 Hz (adjustable) Time measured via pulse frequencies: 48 MHz. Input type: Incremental. Input format: RS422, TTL, HTL differential, HTL PNP, or HTL NPN. Connection: Lanes: A, /A, B, /B. Input frequency: RS422: max. 1 MHz (RS422 differential signal > 0.5 V) HTL differential: max. 500 kHz (HTL differential signal > 2 V) TTL/HTL (PNP/NPN): max. 250 kHz. Load current: Max. 6 mA/Ri > 5 kΩ/10 pF. Input type: 6 x Control input. Input format: HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V). Input frequency: max. 10 kHz. Load current: Max. 2 mA/Ri > 15 kΩ/470 pF. Number/Type: Analog output Configurable as Current or voltage output. Current: 0/4 mA … 20 mA (Max. load: 270 Ω). Voltage: -10 ... 10 V (Max. 2 mA). Resolution: 16 bit ± 0.1 % at 0 °C … 45 °C± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C. Response time: < 1 ms. Output type: 6 x Control output. Output format: PNP. Output voltage: 5 V … 30 V (Depending on voltage at COM+). Output current: max. 200 mA. Response time: < 1 ms. Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61326-1. Operating temperature: -20 ... 60 °C (-4 ... 140 °F) (noncondensing). Storage temperature: -25 ... 75 °C (-13 ... 167 °F) (noncondensing). Degree of protection: IP20. Connection: screw terminals , Max. core cross section: 1.5 mm2 / AWG 16. Material: . Housingplastic: . Housing: plastic. Installation: on 35 mm DIN mounting rail acc. to EN 60715:2001. Mass: approx. 100 g. Dimensions: (W x H x D) 23 mm x 102 mm x 102 mm

Brand	Pepperl Fuchs
Lifecycle status	active
