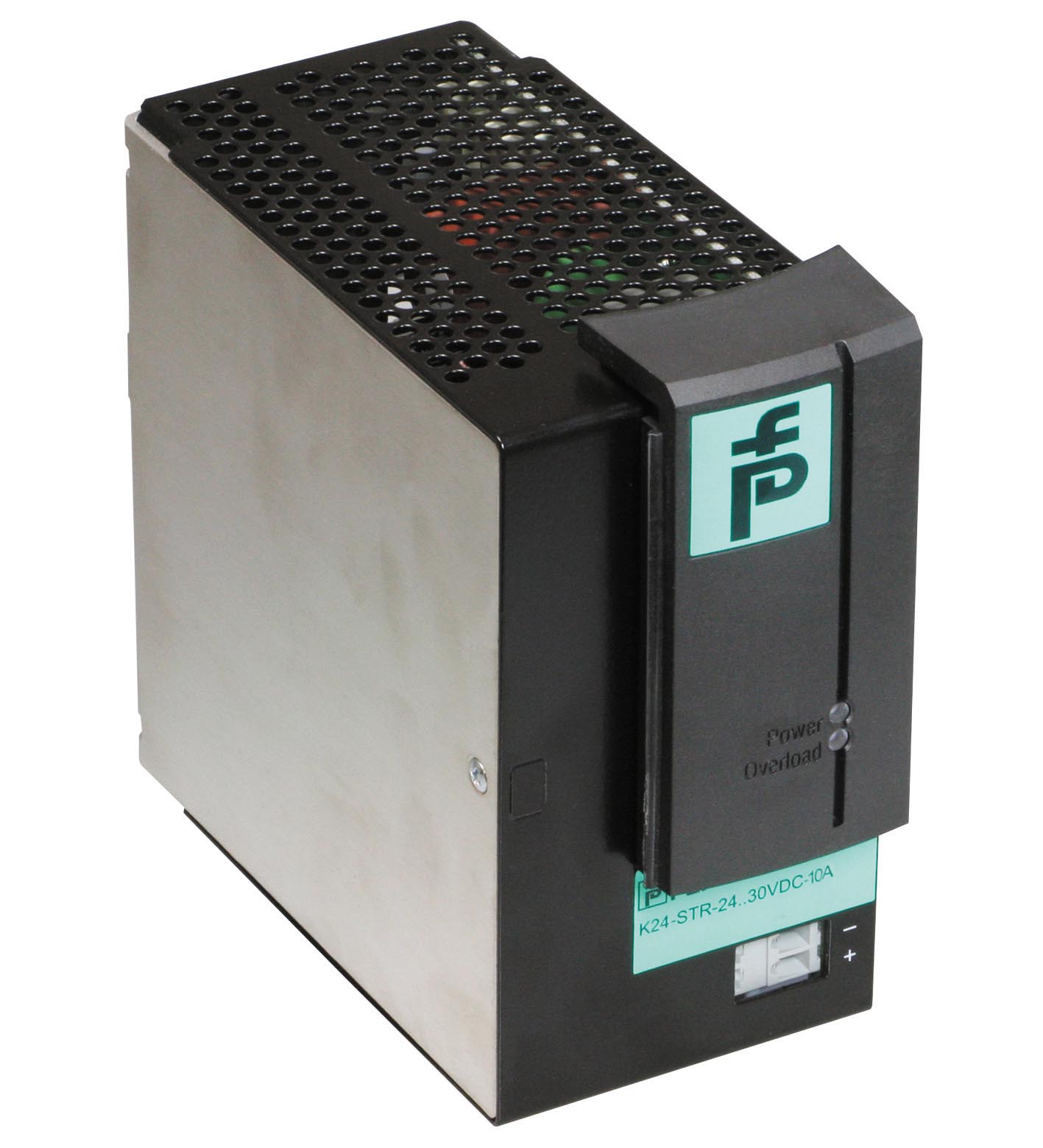

K24-STR-24..30VDC-10A

Power supply. Power supply, 24 to 30 V DC, 10 A. UL File Number: E223176. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Potentiometer: Top: Output current l...

Power supply. Power supply, 24 to 30 V DC, 10 A. UL File Number: E223176. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Potentiometer: Top: Output current limitation (covered by a dummy plug)Bottom: Output voltage adjustment. Fusing: 6.3 AT. Capacity factor: approx. 0.6 (Depending on input voltage). Rated operating voltage: 115/230 V AC (for 115 V range, jumper) Range: 93 to 132 V AC/187 to 265 V AC. Rated operating current: 4.0 A (115 V)1.9 A (230 V). Supply frequency: 47 ... 63 Hz. Efficiency: approx. 89 %. Current limit: approx. 12 A. Voltage: 30 V ± 1 % Adjustment range 22.5 ... 29.5 V AC. Current: 0 ... 10 A. Electromagnetic compatibility: . Directive 2014/30/EUEN 55011, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 class A, EN 61000-3-3, EN 61010-1: . Directive 2014/30/EU: EN 55011, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 class A, EN 61000-3-3, EN 61010-1. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. Electromagnetic compatibility: EN 55011, EN 61000-6-1, EN 61000-6-2. Standards: Harmonic waves: EN 61000-3-2 Class AInterference suppression: EN 55022, EN 55011 Class BElectrostatic discharge (ESD): IEC 61000-4-2 (8 kV contact discharge, 15 kV air discharge)Electromagnetic fields: IEC 61000-4-3 (10 V/m)Burst: IEC 61000-4-4 (4 kV input, 2 kV output/capacitively coupled)Surge: IEC 61000-4-5 (4 kV asymmetrical, 4 kV symmetrical)Conducted interference: IEC 61000-4-6 (10 V, 150 kHz to 80 MHz). Ambient temperature: -10 ... 70 °C (14 ... 158 °F) with free convection. Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Protection class: I, Protective conductor connection necessary. Connection: Connection terminals, max. conductor cross-section 0.5 to 2.5 mm2Stripping length 5 to 6 mm. Mass: approx. 1200 g. Dimensions: . Height132.5 mmWidth70 mmLength140 mm: . Height: 132.5 mm. Width: 70 mm. Length: 140 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
