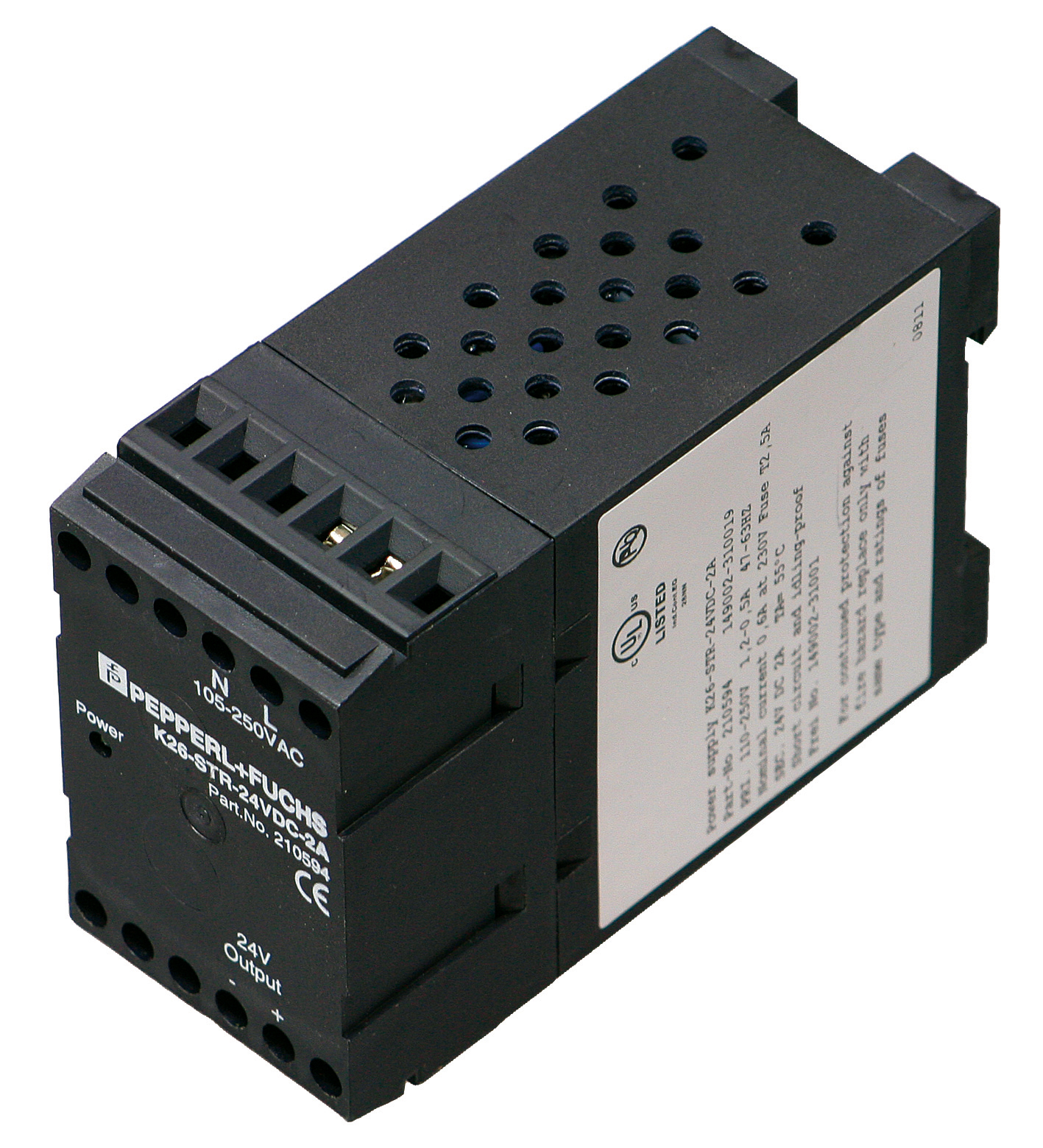

K26-STR-24VDC-2A

Power supply. Power supply, 24 V DC, 2 A. UL File Number: E223176. LED POWER: LED green. Fusing: 2.5 AT. Capacity factor: 0.45 capacitive at 230 VAC0.5 capacitive at 120 VAC. Rated operating voltage:...

Power supply. Power supply, 24 V DC, 2 A. UL File Number: E223176. LED POWER: LED green. Fusing: 2.5 AT. Capacity factor: 0.45 capacitive at 230 VAC0.5 capacitive at 120 VAC. Rated operating voltage: 94 ... 265 V AC. Rated operating current: 1.1 A (120 VAC)0.6 A (230 VAC). Supply frequency: 47 ... 63 Hz. Efficiency: 89 %. Nominal voltage: 110 ... 250 V AC. Peak inrush current: < 1.5 A2s. Current limit: 2.5 A. Voltage: 24 V ± 3 %. Current: 0 ... 2 A. Residual ripple: max. 50 mV. Holdup time: > 70 ms/230 VAC > 10 ms/120 VAC. Electromagnetic compatibility: . Directive 2014/30/EUEN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001 EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006: . Directive 2014/30/EU: EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001 EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. Electromagnetic compatibility: EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001, EN 61000-3-2:2006, EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006. Electrical safety: According to VDE 0805:2006/EN 61010-1:2010/IEC 950:2006. Ambient temperature: -10 ... 70 °C (14 ... 158 °F) with free convection. Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Protection class: II. Connection: Connection terminals, max. conductor cross-section 0.5 ... 2.5 mm2stripped length 10 mm. Mass: 207 g. Mounting: Snap onto 35 mm standard rail compliant with DIN EN 60715:2001

Brand	Pepperl Fuchs
Lifecycle status	active
