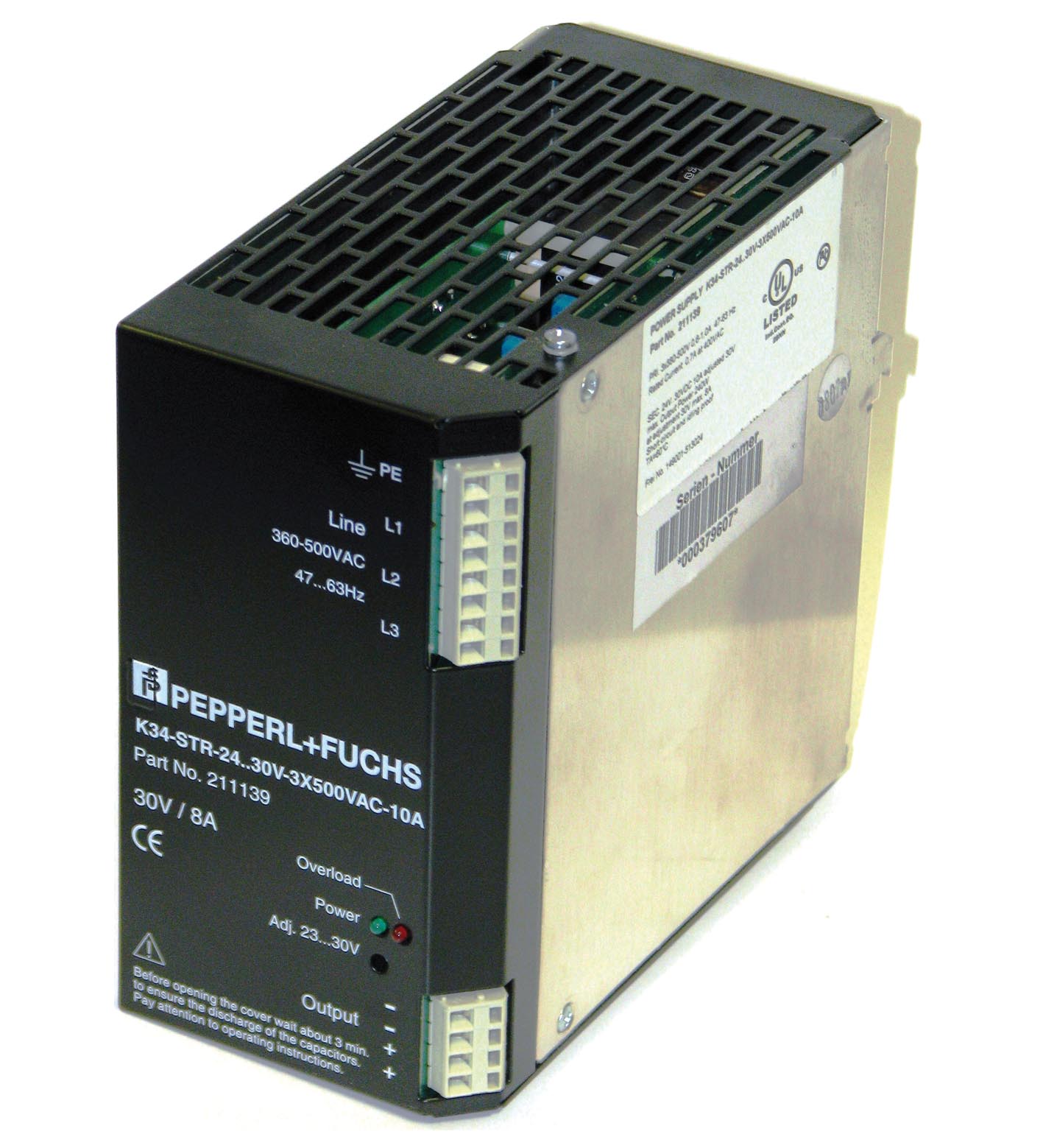

K34-STR-24..30V-3X500VAC-10A

Power supply. Switched mode power supply, 23 ... 30 V DC, 8 A. UL File Number: E223176. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Potentiometer: Output...

Power supply. Switched mode power supply, 23 ... 30 V DC, 8 A. UL File Number: E223176. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Potentiometer: Output voltage settings: 23 ... 30 VDC. Capacity factor: 0.55 capacitive. Rated operating voltage: 3 x 340 ... 550 V AC. Rated operating current: 3 x 700 mA At 400 VAC. Supply frequency: 47 ... 63 Hz. Efficiency: 89 %. Nominal voltage: 3 x 380 ... 500 V AC. Current limit: 12.5 A. Voltage: 30 V ± 1 % Adjustment range 23 to 30 V DC. Current: 0 ... 8 A. Electromagnetic compatibility: . Directive 2014/30/EUEN 55011, EN 61000-6-1, EN 61000-6-2: . Directive 2014/30/EU: EN 55011, EN 61000-6-1, EN 61000-6-2. Low voltage: . Directive 2014/35/EUEN 55011, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 class A, EN 61000-3-3, EN 61010-1: . Directive 2014/35/EU: EN 55011, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 class A, EN 61000-3-3, EN 61010-1. Degree of protection: IEC 60529:2001. Standards: Harmonic waves: EN 61000-3-2 Class AInterference suppression: EN 55011 Class BElectrostatic discharge (ESD): IEC 61000-4-2 (8 kV contact discharge, 15 kV air discharge)Electromagnetic fields: IEC 61000-4-3 (10 V/m)Burst: IEC 61000-4-4 (4 kV input, 2 kV output/capacitively coupled)Surge: IEC 61000-4-5 (4 kV asymmetrical, 4 kV symmetrical)Conducted interference: IEC 61000-4-6 (10 V, 150 kHz to 80 MHz). Ambient temperature: -10 ... 60 °C (14 ... 140 °F) with free convection noncondensing. Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Protection class: I, Protective conductor connection necessary. Connection: Connection terminals, max. conductor cross-section 0.5 to 2.5 mm2Stripping length 5 to 6 mm. Mass: approx. 1400 g. Dimensions: . Height153 mmWidth81 mmLength160 mm: . Height: 153 mm. Width: 81 mm. Length: 160 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
