Pepperl Fuchs

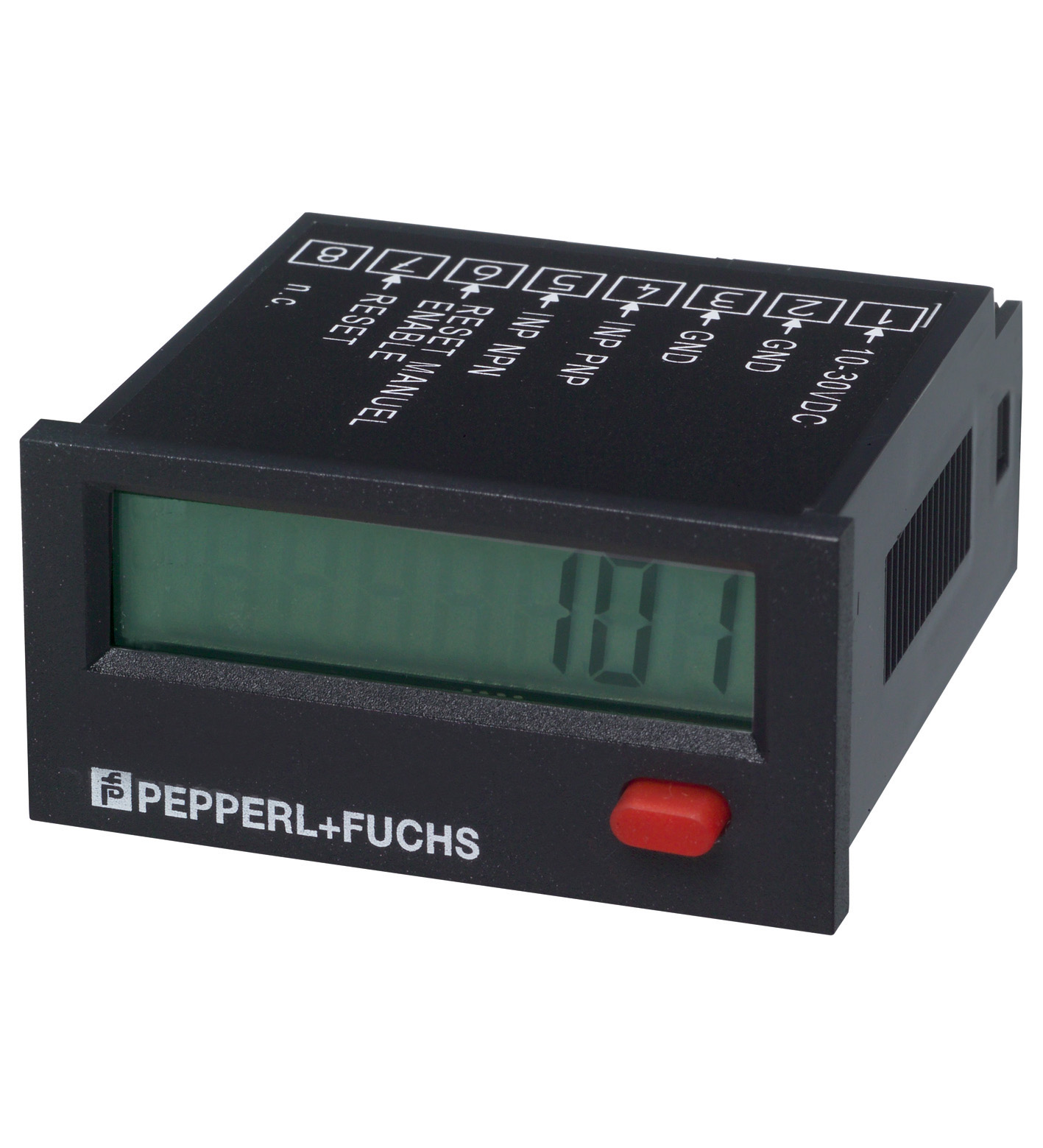

KC-LCD-24-24VDC

Pulse/batch controller. PNP and NPN sensors can be connected, Easy-to-read 7-digit LCD display, Degree of protection IP65 (front only), Operating voltage: 10 ... 30 V DC, Dimensions: 48 mm x 24 mm x 53.5 mm. Data storage: EEPROM. Type: 7-digit 7-segment LC display. Display value: digit height 8 mm. Display interval: 0 ... 9999999. Scale factor: 1 ... 4095 (factory setting). Reset: manually or external. Operating voltage: 10 ... 30 V DC. Operating current: max. 25 mA. Voltage: low: 0 ... 2 V DC high: 3.5 ... 30 V DC Switching threshold approx. 2.7 V. Impedance: 10 kΩ. Switch-on delay: 500 ms. Input type: Counter input PNP: fast input, PNP-switching. Input frequency: max. 8 kHz. Input type: Counter input NPN: slow input, NPN-switching. Input frequency: max. 48 Hz. Input type: Activation input reset button: static NPN input. Input type: Reset input: flank-triggered NPN input (min. 20 ms). Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2005: . EMC Directive 2004/108/EC: EN 61000-6-2:2005. Standard conformity: . Emitted interferenceDIN EN 55011:2009, Class BMech. capacityEN 60068-2-6:2008 10 … 55 Hz / 1 mm / XYZ 30 min in each directionShock and impact resistancedevice in operation: 100 G / XYZ; EN 60068-2-27:1995 device in operation: 10 G / XYZ; EN 60068-2-29:1995: . Emitted interference: DIN EN 55011:2009, Class B. Mech. capacity: EN 60068-2-6:2008 10 … 55 Hz / 1 mm / XYZ 30 min in each direction. Shock and impact resistance: device in operation: 100 G / XYZ; EN 60068-2-27:1995 device in operation: 10 G / XYZ; EN 60068-2-29:1995. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Degree of protection: IP65 (front) IP20 (Connection side). Mass: approx. 40 g. Dimensions: 48 mm x 24 mm x 53.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
