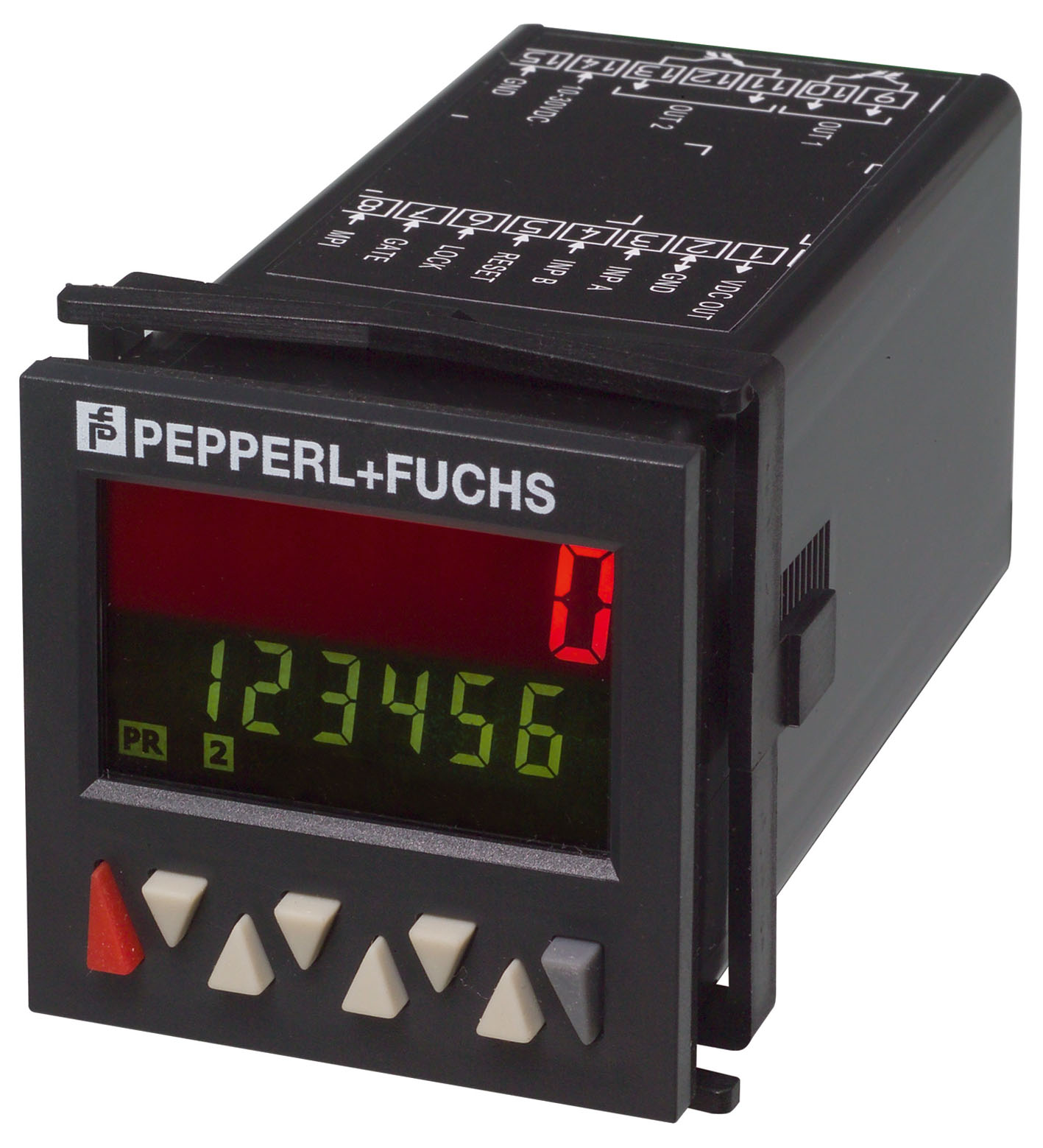

KC-LCDC-48-2T-24VDC

Timer, Counter, Tachometer. Counter/Timer/Tachometer, Adding/subtracting via 2 separate inputs, Batch controller with 2 pre-selections, 2 potential-free optocoupler outputs, Easy-to-read 2-line LCD di...

Timer, Counter, Tachometer. Counter/Timer/Tachometer, Adding/subtracting via 2 separate inputs, Batch controller with 2 pre-selections, 2 potential-free optocoupler outputs, Easy-to-read 2-line LCD display, color, with icons for the displayed preselection and the status of both outputs, Operating voltage: 10 ... 30 V DC, Optocoupler: Schaltleistung 30 V DC / 10 mA, Dimensions: 48 mm x 48 mm x 109.8 mm. Pre-selection: 2-fold. Data storage: > 10 years, EEPROM. Programming: keypad-driven menu. Type: 2-line, 2 x 6-digit LC display with leading sign Multicolor, backlit. Display value: digit height 9 mm. Pre-selection: digit height 7 mm. Key interlock: via "high" potential at "LOCK" input. Decimal point: 0 to max 5 fractional digits. Scale factor: 0.0001 ... 99.9999. Reset: manually or external. Fusing: 10 … 30 V DC: T 0.2 A. Operating voltage: 10 ... 30 V DC. Power consumption: max. 1.5 W. Connection: Counter inputs: A and B Control/reset inputs: LOCK, RESET, GATE, MPI. Signal voltage: . High0.6 x Ue ... 30 V DCLow0 ... 0.2 x Ue: . High: 0.6 x Ue ... 30 V DC. Low: 0 ... 0.2 x Ue. Counting frequency: 30 Hz / 55 kHz. Minimum pulse duration: Control/reset inputs: 10 ms / 1 ms. Impedance: 5 kOhm. Count modes: . Pulse counterCounting with counting direction (cnt.dir),difference counting (up.dn),up/down counting (quad), Cumulative counting (up.up),up/down counting x 2 (quad 2),up/down counting x 4 (quad 4),additional functions for counter input A and counter input B: A/B, (A-B)/A x 100% Frequency counterfunctions for input A and input B: A, A-B, A+B quad, A/B, (A-B)/A x 100 %TimerTime measurement via GATE input (FrErun),counter input A: Start, counter input B: Stop (InpA.InpB.),counter input B: Start/Stop (InpB.InpB.), time measuring via RESET input (auto): . Pulse counter: Counting with counting direction (cnt.dir),difference counting (up.dn),up/down counting (quad), Cumulative counting (up.up),up/down counting x 2 (quad 2),up/down counting x 4 (quad 4),additional functions for counter input A and counter input B: A/B, (A-B)/A x 100%. Frequency counter: functions for input A and input B: A, A-B, A+B quad, A/B, (A-B)/A x 100 %. Timer: Time measurement via GATE input (FrErun),counter input A: Start, counter input B: Stop (InpA.InpB.),counter input B: Start/Stop (InpB.InpB.), time measuring via RESET input (auto). Sensor supply: connected power supply is looped through,max. 80 mA. Response time: approx. 1 ms. Optocoupler: Schaltleistung 30 V DC / 10 mA. Signal voltage: UCESAT with IC = 10 mA: max. 2 V UCESAT with IC = 5 mA: max. 0.4 V. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2005, EN 50295:1999: . EMC Directive 2004/108/EC: EN 61000-6-2:2005, EN 50295:1999. Standard conformity: . Emitted interferenceDIN EN 55011:2009, Class BMech. capacityEN 60068-2-6:2008 10 … 55 Hz / 1 mm / XYZ 30 min in each directionShock and impact resistanceEN 60068-2-27:1995 100 G / 2 ms / XYZ3 times in each direction: . Emitted interference: DIN EN 55011:2009, Class B. Mech. capacity: EN 60068-2-6:2008 10 … 55 Hz / 1 mm / XYZ 30 min in each direction. Shock and impact resistance: EN 60068-2-27:1995 100 G / 2 ms / XYZ3 times in each direction. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Relative humidity: ≤ 93 % at 40 °C(noncondensing). Altitude: 0 ... 2000 m. Degree of protection: IP65 (front). Mass: approx. 130 g. Dimensions: 48 mm x 48 mm x 109.8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
