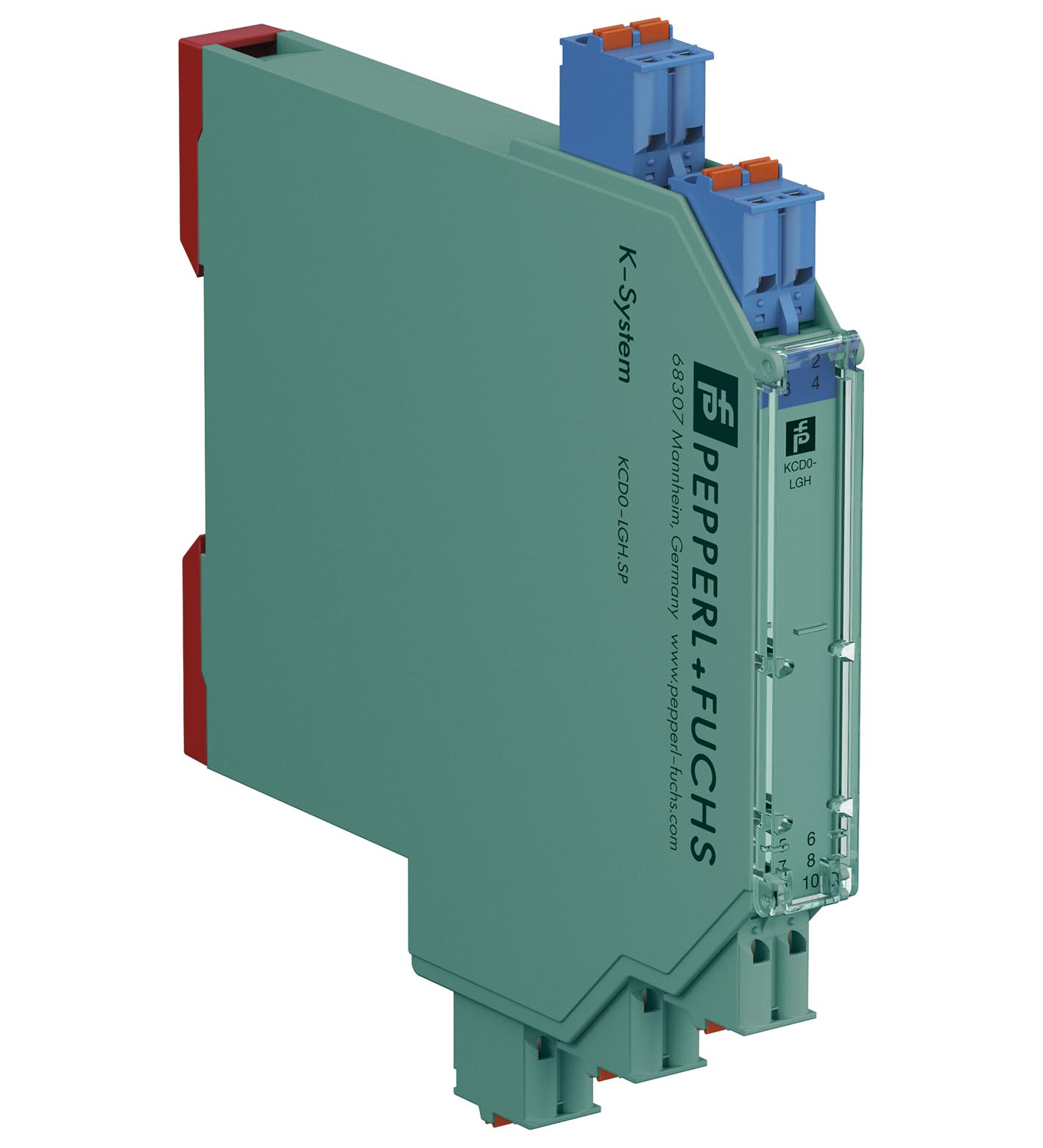

KCD0-LGH.SP

Place Holder Barrier. K-System place holder module, Housing width 12.5 mm, Marshalling for field and control side circuits, Configurable via plug-in jumpers, Connection via spring terminals with push-...

Place Holder Barrier. K-System place holder module, Housing width 12.5 mm, Marshalling for field and control side circuits, Configurable via plug-in jumpers, Connection via spring terminals with push-in connection technology. Rated voltage: ≤ 50 V. Rated current: ≤ 2 A. Configuration: via internal wire jumpers. Labeling: space for labeling at the front. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: spring terminals. Mass: approx. 80 g. Dimensions: 12.5 x 114 x 104 mm (0.5 x 4.5 x 4.1 inch) (W x H x D) , housing type A2. Height104 mmWidth12.5 mmDepth114 mm: . Height: 104 mm. Width: 12.5 mm. Depth: 114 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: PF 08 CERT 1214 X. Marking II 3G Ex nA IIC T4 Gc: . Marking: II 3G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
