KCD2-SCD-1

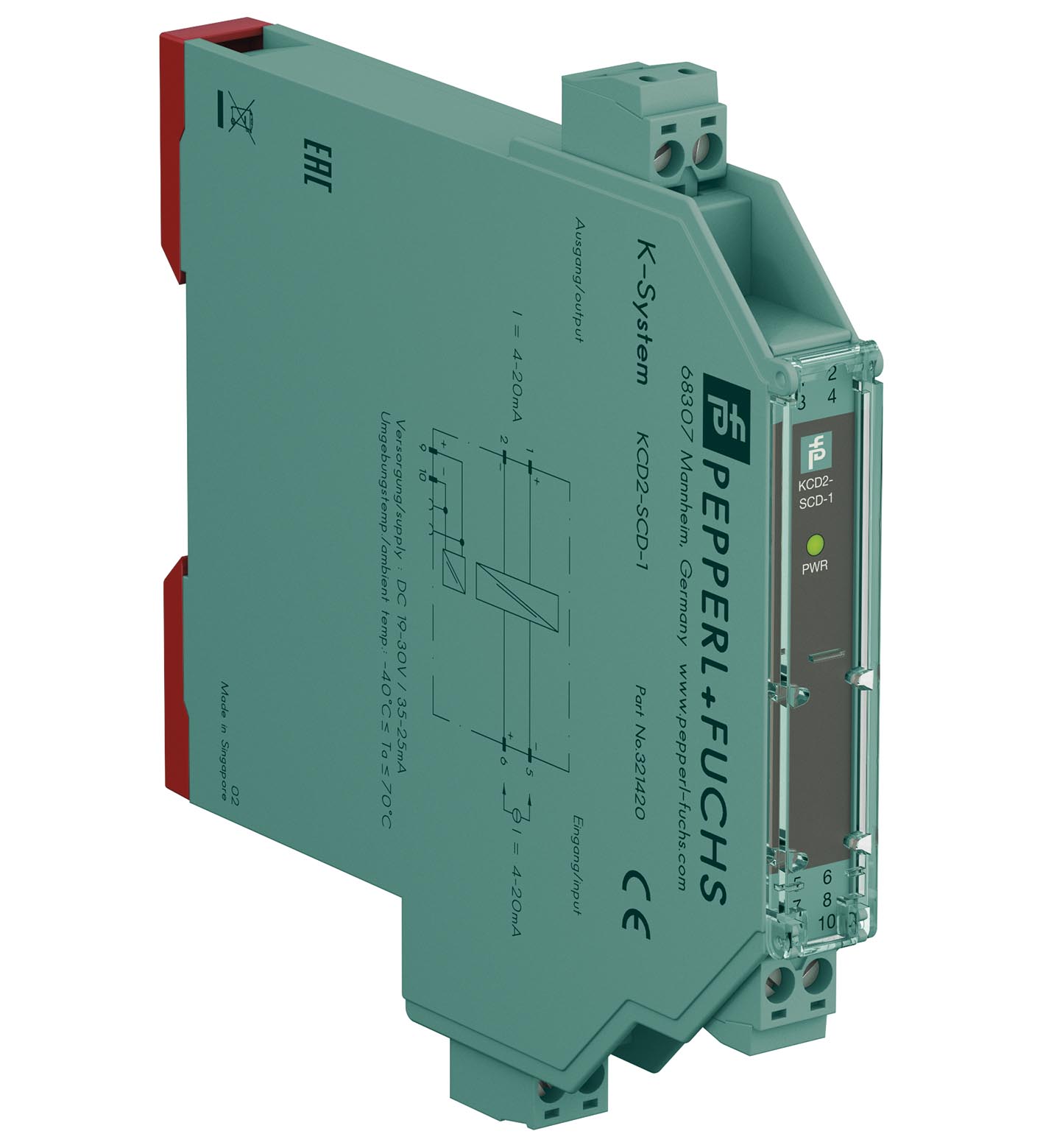

SMART Current Driver. 1-channel signal conditioner, 24 V DC supply (Power Rail), Current output up to 900 Ω load, HART-IP and valve positioner, Lead breakage monitoring, Housing width 12.5 mm, Up to S...
SMART Current Driver. 1-channel signal conditioner, 24 V DC supply (Power Rail), Current output up to 900 Ω load, HART-IP and valve positioner, Lead breakage monitoring, Housing width 12.5 mm, Up to SIL 2 acc. to IEC/EN 61508, Housing width: 12.5 mm, Number of channels: 1-channel, Transfer direction: to the field, HART communication, Safety Integrity Level (SIL): SIL 2, Rated voltage: 19 ... 30 V DC, Signal: 1 x 4 ... 20 mA, Field device: 1 x I/P converters, Field device [2]: 1 x positioner. Signal type: Analog output. Safety Integrity Level (SIL): SIL 2. Connection: Power Rail or terminals 9+, 10-. Rated voltage: 19 ... 30 V DC. Ripple: ≤ 10 %. Rated current: ≤ 30 mA at 24 V. Power dissipation: ≤ 600 mW at 20 mA and 500 Ω load. Power consumption: ≤ 700 mW. Connection side: control side. Connection: terminals 5-, 6+. Input signal: 4 ... 20 mA , limited to approx. 26 mA. Input voltage: open loop voltage of the control system < 30 V. Voltage drop: approx. 6 V at 20 mA. Input resistance: > 100 kΩ, with field wiring open. Connection side: field side. Connection: terminals 1+, 2-. Voltage: ≥ 18 V at 20 mA. Current: 4 ... 20 mA. Load: 0 ... 900 Ω. Ripple: 20 mV rms. Deviation: at 20 °C (68 °F), 4 ... 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis. Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)): . Influence of ambient temperature: < 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F)). Frequency range: bandwidth at 0.5 Vss signal 0 ... 3 kHz (-3 dB). Rise time: 10 to 90 % ≤ 10 ms. Input/Output: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Input/power supply: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: LED. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017 EN 61326-3-2:2018. Degree of protection: IEC 60529. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
