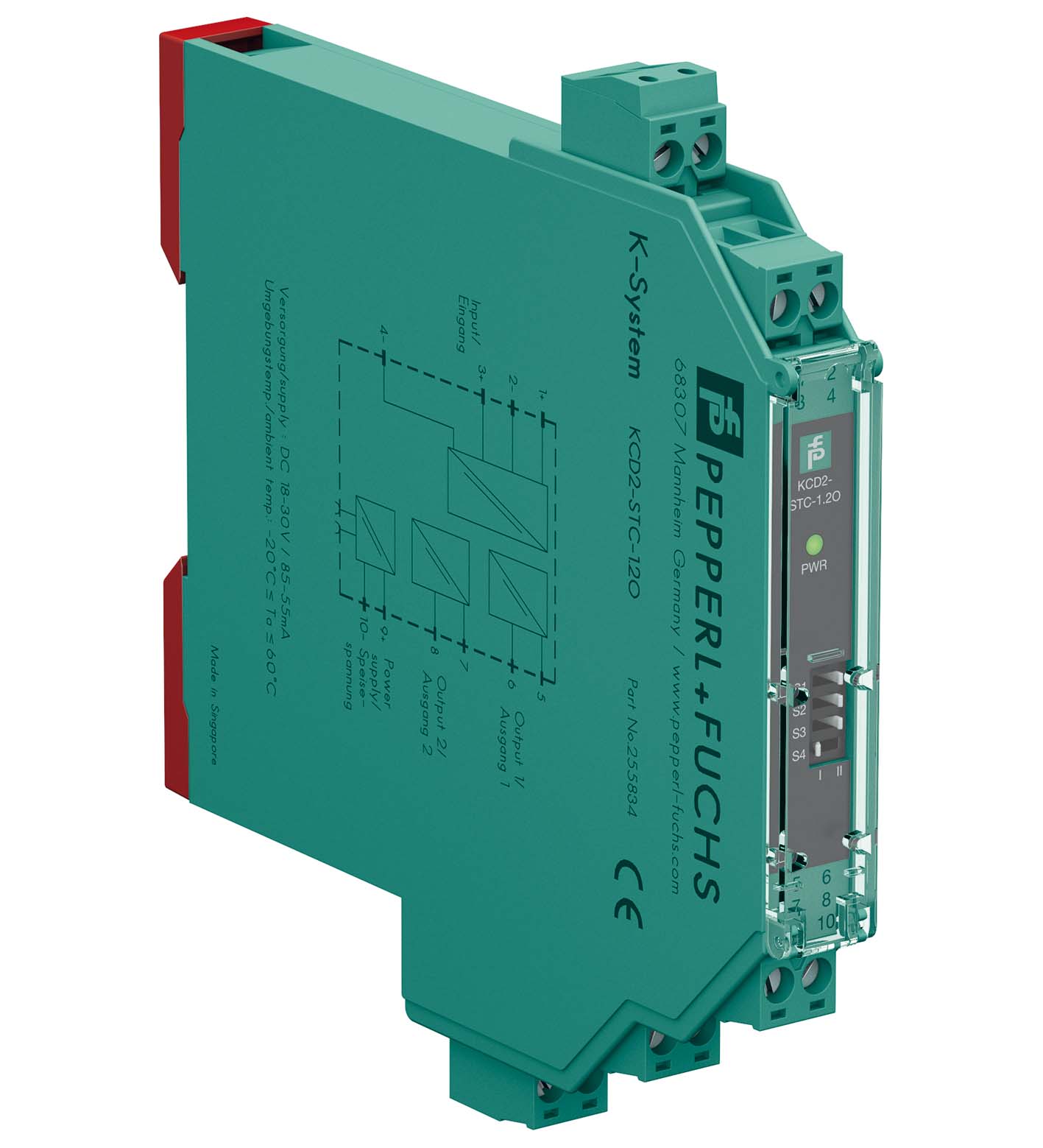

KCD2-STC-1.2O

SMART Transmitter Power Supply. 1-channel signal conditioner, 24 V DC supply (Power Rail), Input for 2-wire SMART transmitters and current sources, Signal splitter (1 input and 2 outputs), Dual output...

SMART Transmitter Power Supply. 1-channel signal conditioner, 24 V DC supply (Power Rail), Input for 2-wire SMART transmitters and current sources, Signal splitter (1 input and 2 outputs), Dual output 0/4 mA ... 20 mA or 0/1 V ... 5 V, Terminal blocks with test sockets, Up to SIL 2 (SC 3) acc. to IEC/EN 61508, Housing width: 12.5 mm, Number of channels: 1-channel, HART communication, Test sockets, Safety Integrity Level (SIL): SIL 2, Systematic capability (SC): SC 3, Rated voltage: 19 ... 30 V DC. Signal type: Analog input. Safety Integrity Level (SIL): SIL 2. Systematic capability (SC): SC 3. Connection: Power Rail or terminals 9+, 10-. Rated voltage: 19 ... 30 V DC. Ripple: within the supply tolerance. Power dissipation: approx. 1.4 W at 20 mA transfer current, 250 Ω in both outputs. Power consumption: 2 W. Connection side: field side. Connection: terminals 1+, 2- (sink); 3+, 4- (source). Input signal: 0/4 ... 20 mA. Voltage drop: terminals 3, 4: ≤ 6.1 V at 20 mA. Short-circuit current: terminals 1+, 2-: 25 mA. Input resistance: terminals 1+, 2-: max. 500 Ω (BRAIN) (250 Ω load). Available voltage: terminals 1+, 2-: ≥ 16 V at 20 mA , ≥ 18.5 V at 4 mA. Connection side: control side. Connection: source: terminals 5-, 6+; 7-, 8+ sink: terminals 5+, 6-, 7+, 8-. Load: channel 1: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)channel 2: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V). Output signal: 0/4 ... 20 mA or 0/1 ... 5 V. Ripple: max. 50 µA rms. Deviation: Iout < 20 µA (0.1 %); Vout < 7.5 mV (0.15 %) incl. calibration, linearity, hysteresis and fluctuation of supply voltage, at 20 °C (68 °F), 0/4 ... 20 mA, 0/1 ... 5 V. Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K: . Influence of ambient temperature: current output: 0.25 µA/Kvoltage output: 80 µV/K. Frequency range: field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB). Settling time: 6 ms. Rise time/fall time: 2 ms. Input/Output: basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff. Input/power supply: basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff. Output/power supply: functional insulation, rated insulation voltage 50 V AC. Output/Output: functional insulation, rated insulation voltage 50 V AC. Display elements: LED. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2012 EN 61326-3-2:2008. Degree of protection: IEC 60529:2001. Protection against electrical shock: UL 61010-1:2012. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions. Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2. Height124 mmWidth12.5 mmDepth114 mm: . Height: 124 mm. Width: 12.5 mm. Depth: 114 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Note: Both output loads must be connected to ensure complete and correct operation within the technical specification.. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
