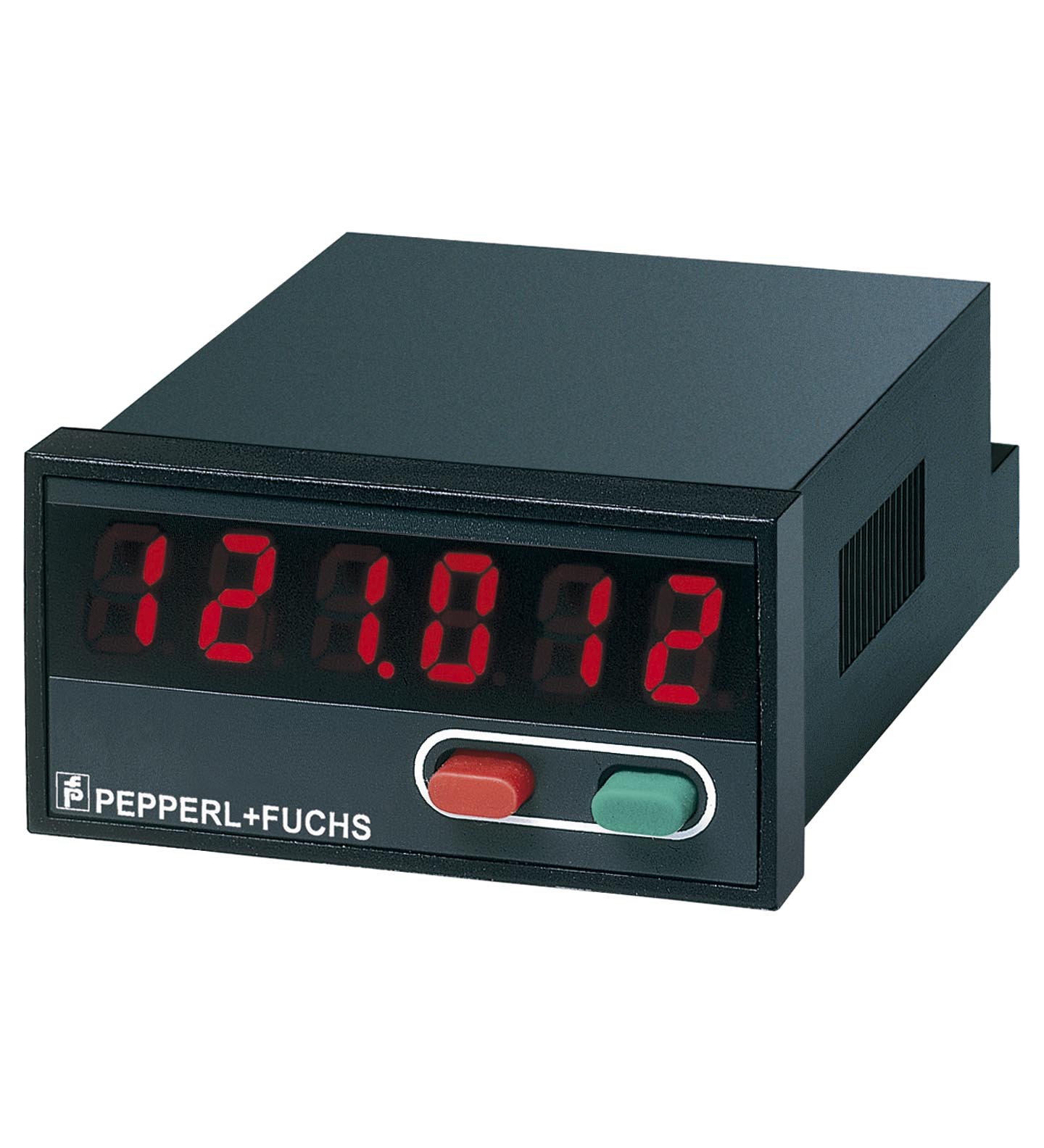

KCT-6S-C

Timer, Counter, Tachometer. Counter frequency up to 20 kHz, LED indicator, red, 6 decade devices, Operation via keypad, Two counter inputs, Operating voltage: 10 ... 30 V DC, Dimensions: 48 mm x 24 mm...

Timer, Counter, Tachometer. Counter frequency up to 20 kHz, LED indicator, red, 6 decade devices, Operation via keypad, Two counter inputs, Operating voltage: 10 ... 30 V DC, Dimensions: 48 mm x 24 mm x 65 mm. Pre-selection: -. Data storage: 106 storage cycles or 10 years, EEPROM. Programming: keypad-driven menu. Type: 7-segment LED display, red. Number of digits: 6. Display value: digit height 8 mm. Pre-selection: -. Key interlock: -. Display interval: -199999 ... 999999 with suppression of leading zeros. Decimal point: 0 to max 3 fractional digits. Scale factor: 0.0001 ... 99.9999. Reset: manually or external. Operating voltage: 10 ... 30 V DC. Power consumption: 1.5 W. Counting frequency: 30 Hz / 20 kHz. Impedance: 10 kOhm. Voltage: low: 0 V DC ... 0.2 x supply voltage; high: 0.6 x supply voltage ... 30 V DC. Counting method: adding or subtracting. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Connection: 5-pin screw terminal ,max. core cross section 0.34 ... 1.5 mm2. Mass: 48 g. Dimensions: 48 mm x 24 mm x 65 mm. Mounting: latch fastener

Brand	Pepperl Fuchs
Lifecycle status	active
