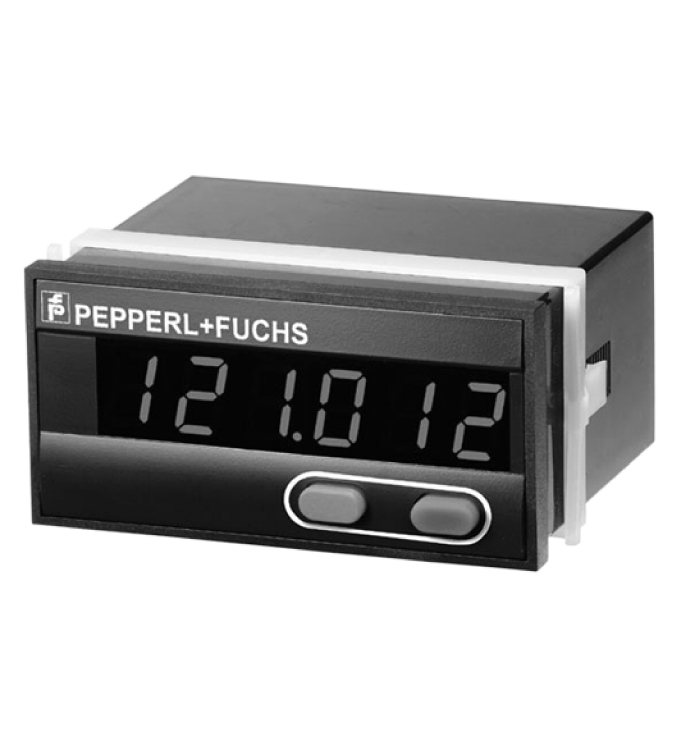

KCT2-6ST-V

Counter/Timer/Tachometer. Counter/Timer/Tachometer, Extremely bright, large LED indicator, 1 pre-select value with transistor output, PNP and NPN sensors can be connected, Adding/subtracting via 2 sep...

Counter/Timer/Tachometer. Counter/Timer/Tachometer, Extremely bright, large LED indicator, 1 pre-select value with transistor output, PNP and NPN sensors can be connected, Adding/subtracting via 2 separate inputs, Operating voltage: 90 ... 260 V AC, Optocoupler: NPN, open collector and open emitter <BR>30 V / 15 mA, Dimensions: 96 mm x 48 mm x 90 mm. Pre-selection: single. Data storage: 106 storage cycles or 10 years, EEPROM. Programming: keypad-driven menu. Type: 7-segment LED display, red. Number of digits: 6. Display value: digit height 14 mm. Pre-selection: active at counter value ≤ 0. Key interlock: -. Display interval: -199999 ... 999999 with suppression of leading zeros. Decimal point: 0 to max 3 fractional digits. Scale factor: 0.0001 ... 99.9999. Reset: manually or external. Operating voltage: 90 ... 260 V AC. Power consumption: max. 6 VA. Counting frequency: 30 Hz / 20 kHz (max. 11 kHz when counting with phase discriminator). Minimum pulse duration: 5 ms for reset input. Impedance: 10 kOhm. Voltage: low: 0 ... 4 V DC ; high: 12 ... 30 V DC. Counting method: adding or subtracting. Sensor supply: 24 V DC ± 15 % / 100 mA. Response time: 6 ms. Optocoupler: NPN, open collector and open emitter 30 V / 15 mA. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Connection: 2-pin and 7-pin plug-in connection terminals, core cross section ≤ 1.5 mm2. Mass: approx. 150 g. Dimensions: 96 mm x 48 mm x 90 mm. Mounting: latch fastener (dimension 48 mm x 100 mm)

Brand	Pepperl Fuchs
Lifecycle status	active
