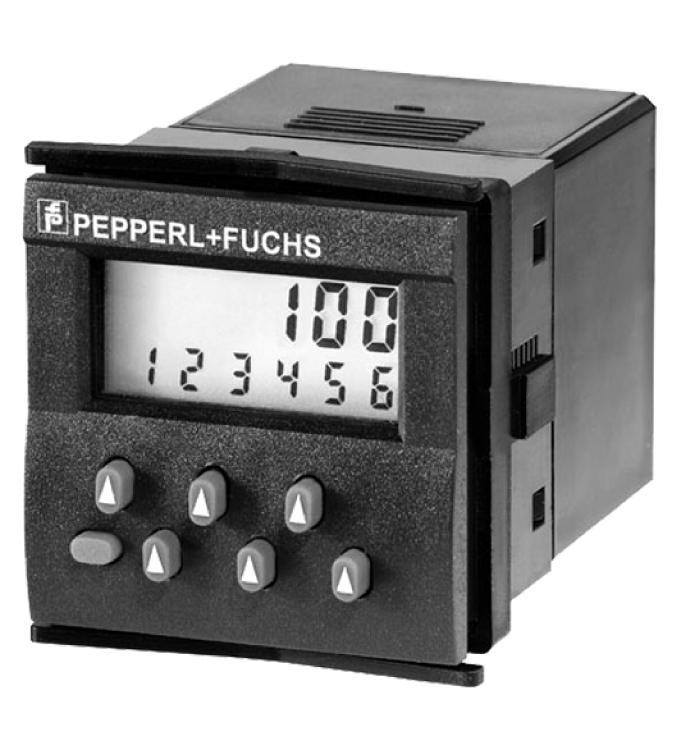

KCY1-6SR-B

Timer, Counter. Simple pre-selection setting via one button per decade, Easy-to-read 2-line LCD indicator, With battery operation, Relay output, Input for keypad locking, Operating voltage: Battery 2...

Timer, Counter. Simple pre-selection setting via one button per decade, Easy-to-read 2-line LCD indicator, With battery operation, Relay output, Input for keypad locking, Operating voltage: Battery 2 x 3.6 V, Relay: normally open contact (max. 60 VA)<BR>230 V AC/0.5 A; 60 V DC/2 A, Dimensions: 48 mm x 48 mm x 85 mm. Pre-selection: single. Data storage: 5 x 106 switching cyclesor 8 years. Programming: keypad-driven menu. Type: 2-line, 7-segment LC display with signs. Number of digits: 6. Display value: digit height 7 mm. Pre-selection: digit height 4.5 mm. Key interlock: via external "high" signal. Display interval: 0 ... 999999 Display area for the time batch controller: seconds, minutes, hours. Decimal point: 0 to max 3 fractional digits. Scale factor: -. Refresh cycle of the measured value output: 0.1 … 99.9 seconds, programmable. Reset: manually or external. Operating voltage: Battery 2 x 3.6 V. Counting frequency: max. 30 Hz. Impedance: 110 kOhm. Counting method: adding or subtracting. Relay: normally open contact (max. 60 VA)230 V AC/0.5 A; 60 V DC/2 A. Response time: < 20 ms. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: ≤ 80 % (noncondensing). Mass: 80 g. Dimensions: 48 mm x 48 mm x 85 mm. Mounting: latch fastener (dimension 50.5 mm x 54.5 mm)

Brand	Pepperl Fuchs
Lifecycle status	active
