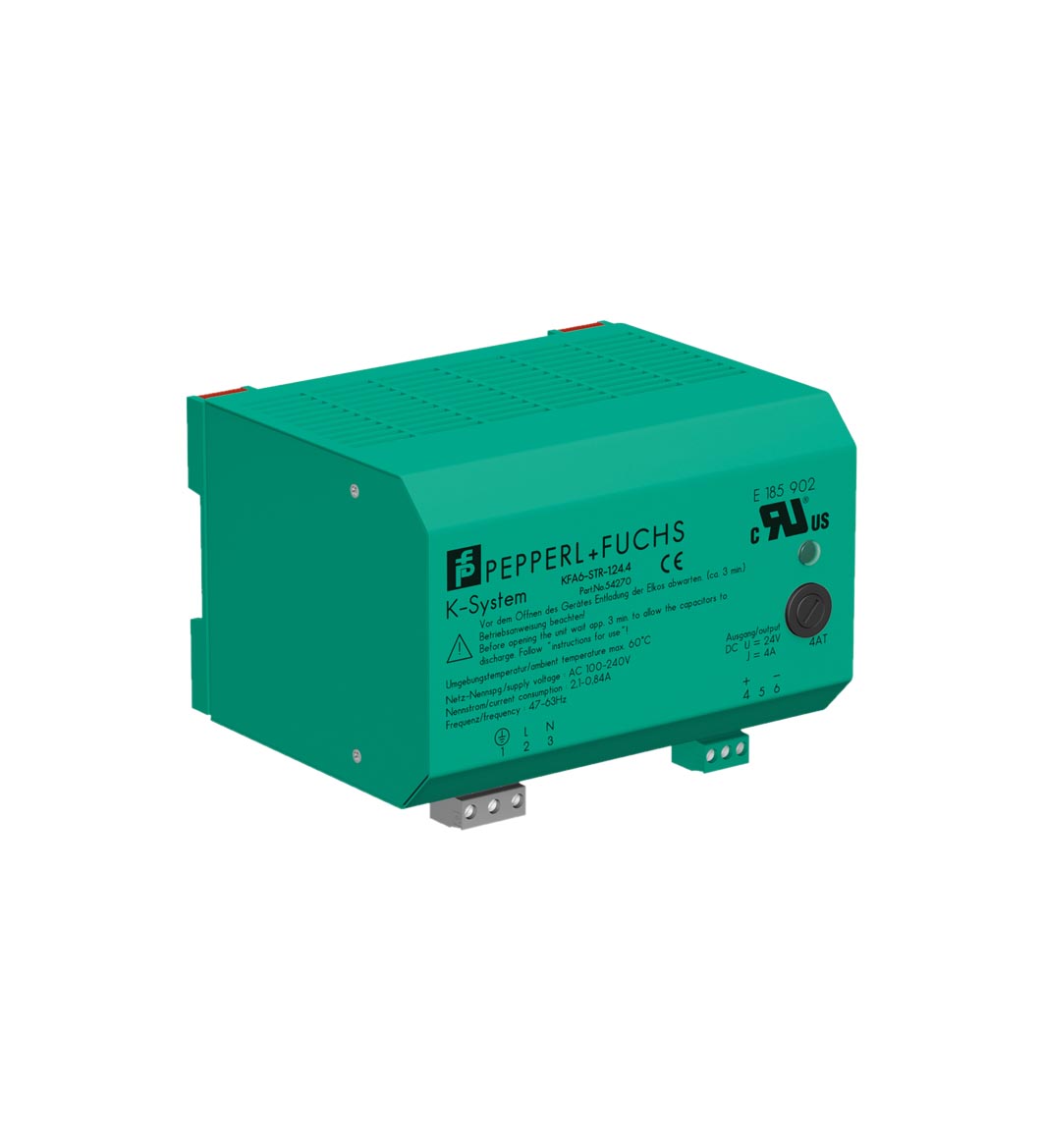

KFA6-STR-1.24.4

Power Supply. 115/230 V AC supply, Output 24 V DC, 4 A, Fused output, Power Rail connection. Connection: terminals 1(PE), 2 (L1), 3 (N). Rated voltage: 92 ... 265 V AC , 47 ... 63 Hz. Rated current: 2...

Power Supply. 115/230 V AC supply, Output 24 V DC, 4 A, Fused output, Power Rail connection. Connection: terminals 1(PE), 2 (L1), 3 (N). Rated voltage: 92 ... 265 V AC , 47 ... 63 Hz. Rated current: 2.1 ... 0.84 A. Fusing: back-up fuse : B characteristic: 16 AB characteristic: 10 AC characteristic: 6 A. Failure override time: > 75 ms / 230 V AC ; 5 ms / 115 V AC. Connection: terminals 4+, 6-. Current: 0 ... 4 A , Power Rail limiting by means of fuse 4 AT , electron. limitation typ. 4.6 A. Output current: max. 4 A. Output voltage: 24 V DC. Ripple: < 100 mV ss. Efficiency: typ. 87 %. Voltage limitation: < 28 V DC. Power supply/Output: for 253 V AC design insulation voltage. Display elements: LED. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 55011:2009+A1:2010 , EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-6-1:2007 , EN 61000-6-2:2005 , EN 61000-6-3:2007+A1:2011 , EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 55011:2009+A1:2010 , EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-6-1:2007 , EN 61000-6-2:2005 , EN 61000-6-3:2007+A1:2011 , EN 61000-6-4:2007+A1:2011. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: self-opening connection terminals. Core cross section: max. 2 x 2.5 mm2. Mass: approx. 800 g. Dimensions: 140 x 101 x 114 mm (5.5 x 4.0 x 4.5 inch) (W x H x D). Height101 mmWidth140 mmDepth114 mm: . Height: 101 mm. Width: 140 mm. Depth: 114 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
