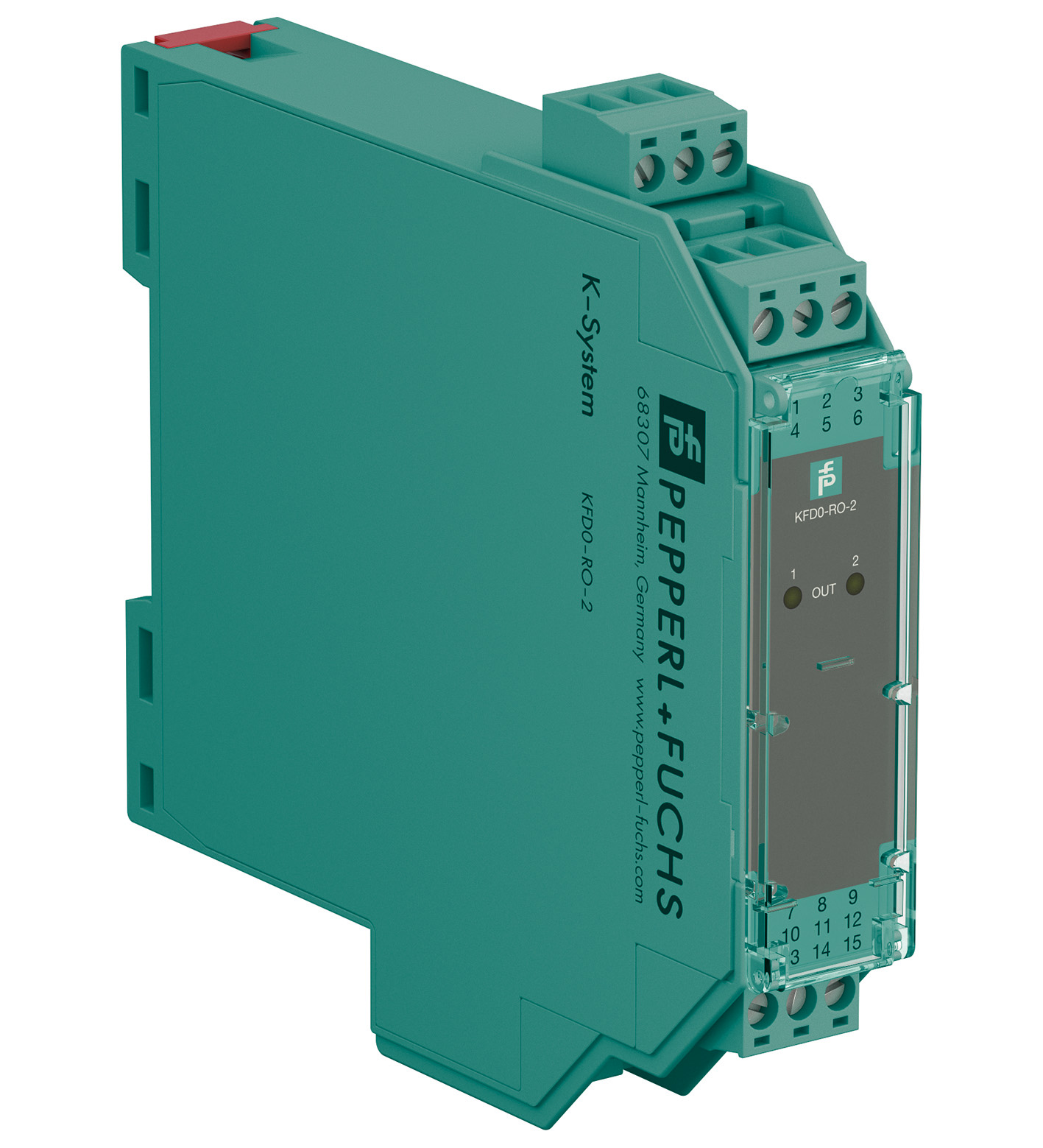

KFD0-RO-2

Relay Module. 2-channel signal conditioner, 24 V DC supply (loop powered), Logic input 15 V DC ... 30 V DC, non-polarized, Relay contact output, Up to SIL 3 acc. to IEC/EN 61508, Housing width: 20 mm,...

Relay Module. 2-channel signal conditioner, 24 V DC supply (loop powered), Logic input 15 V DC ... 30 V DC, non-polarized, Relay contact output, Up to SIL 3 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 2-channel, Safety Integrity Level (SIL): SIL 3, Rated voltage: 15 ... 30 V DC , loop powered, Type: 2 x logic input, Type: 2 x relay (change-over contact). Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Rated voltage: 15 ... 30 V DC , loop powered. Power dissipation: 0.8 W. Connection side: control side. Connection: terminals 7, 8, 9. Input voltage: 15 ... 30 V DC. Input current: ≤ 21 mA per channel. Connection side: field side. Connection: terminals 1, 2, 3; 4, 5, 6. Contact loading: 230 V AC/4 A/cos φ > 0.7; 30 V DC/4 A resistive load. Energized/De-energized delay: approx. 10 ms / approx. 5 ms. Mechanical life: 5 x 106 switching cycles. Electrical life: 105 switching cycles , at maximum load. Switching frequency: < 10 Hz. Input/Output: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output/Output: basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: LEDs. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
