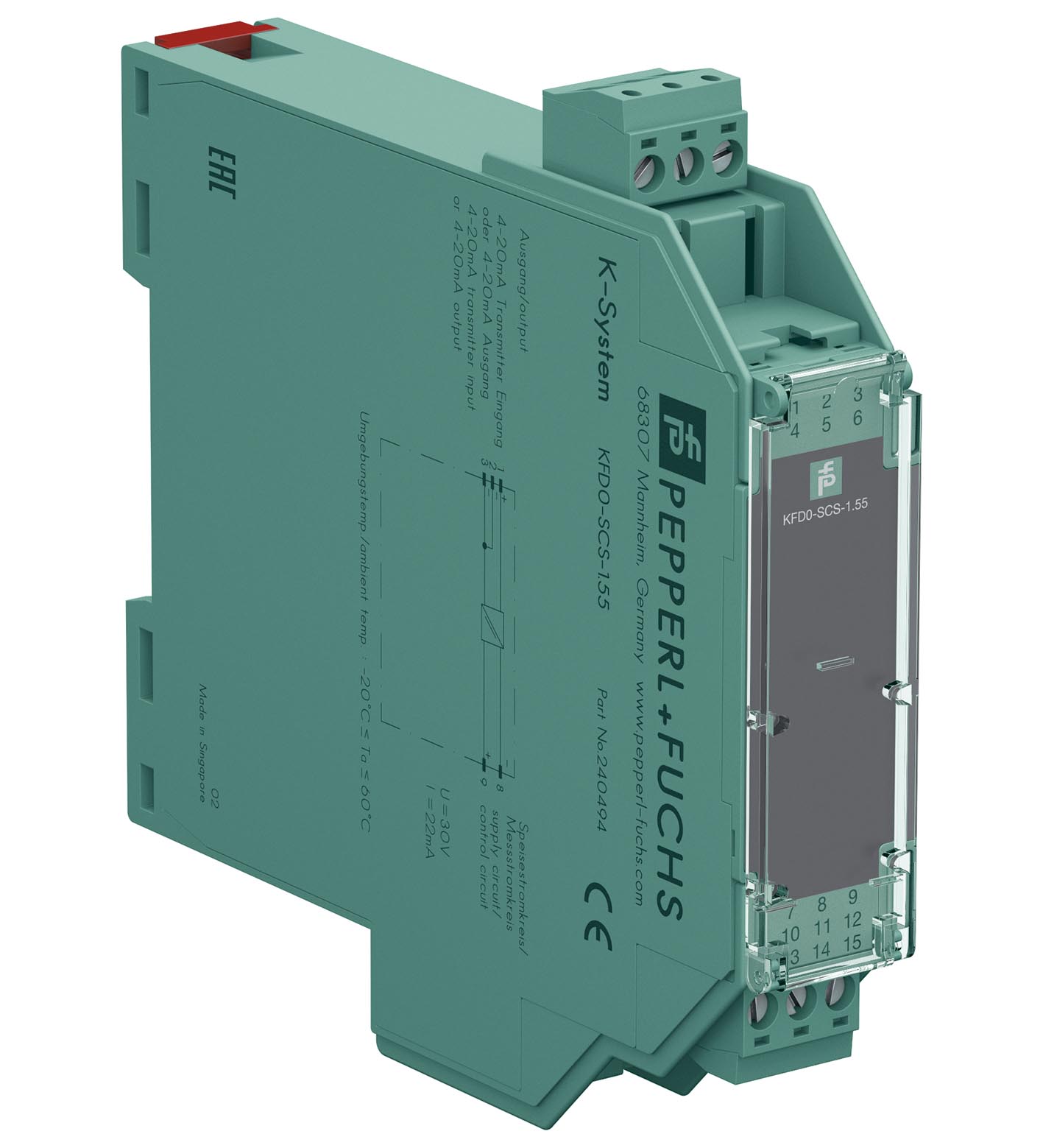

KFD0-SCS-1.55

SMART Current Driver/Repeater. 1-channel signal conditioner, 24 V DC supply (loop powered), Current input/output 4 mA ... 20 mA, HART-IP or transmitter power supply, Low voltage drop, Line fault detec...

SMART Current Driver/Repeater. 1-channel signal conditioner, 24 V DC supply (loop powered), Current input/output 4 mA ... 20 mA, HART-IP or transmitter power supply, Low voltage drop, Line fault detection (LFD), Up to SIL 2 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, HART communication, Safety Integrity Level (SIL): SIL 2, Rated voltage: < 30 V DC , loop powered. Signal type: Analog input/analog output. Safety Integrity Level (SIL): SIL 2. Rated voltage: < 30 V DC , loop powered. Power dissipation: 0.2 W. Connection: terminals 8-, 9+. Voltage: max. 30 V DC. Current: 4 ... 20 mA (quiescent current < 0.5 mA). Power dissipation: 150 mW at 20 mA and Uin < 24 V. Connection: terminals 1+, 2 / 3-. Voltage: ≥ 16 V for supply voltage > 21 V. Current: 4 ... 20 mA (linear transmission 1 ... 22 mA). Load: ≤ 800 Ω (at 20 mA). Voltage drop: see note. Deviation: . After calibration≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F): . After calibration: ≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F). Influence of ambient temperature: < 0.5 µA/K. Damping: approx. 3 dB. Rise time: ≤ 20 µs at 0 Ω, ≤ 600 µs with 800 Ω load. Input/Output: basic insulation according to IEC 62103, rated insulation voltage 300 Veff. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Galvanic isolation: IEC 62103:2003. Electromagnetic compatibility: NE 21:2007. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions. Degree of protection: IP20. Connection: screw terminals. Mass: approx. 120 g. Dimensions: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2. Height124 mmWidth20 mmDepth115 mm: . Height: 124 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
