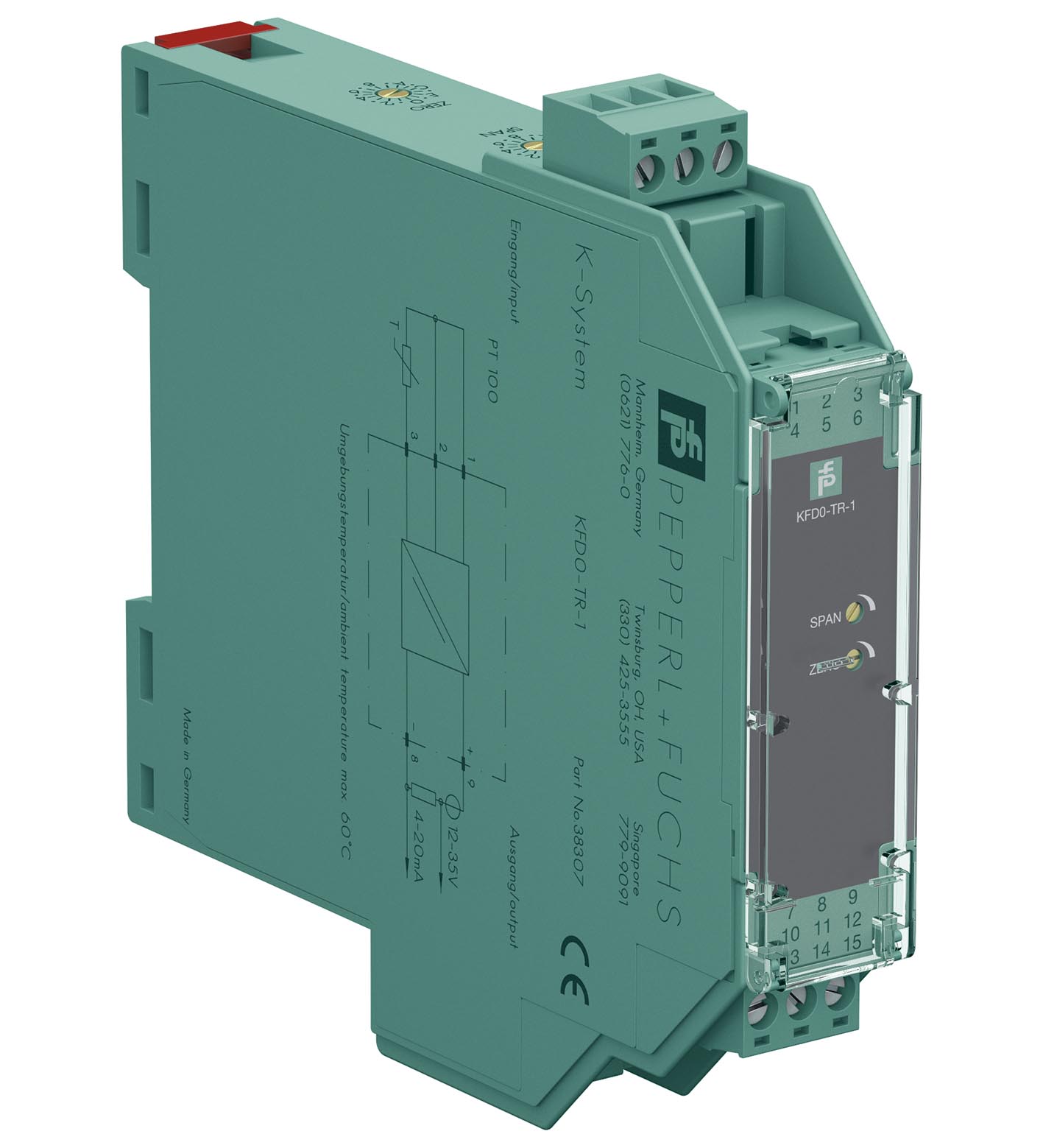

KFD0-TR-1

RTD Converter. 1-channel signal conditioner, 24 V DC supply (loop powered), 2- or 3-wire Pt100 RTD input, Output 4 mA ... 20 mA, temperature linearization selectable, DIP switch selectable ranges, Sen...

RTD Converter. 1-channel signal conditioner, 24 V DC supply (loop powered), 2- or 3-wire Pt100 RTD input, Output 4 mA ... 20 mA, temperature linearization selectable, DIP switch selectable ranges, Sensor breakage detection, Housing width: 20 mm, Number of channels: 1-channel, Rated voltage: 12 ... 35 V DC loop powered, Field device: resistance thermometer, Signal: 1 x 4 ... 20 mA (current sink). Signal type: Analog input. Rated voltage: 12 ... 35 V DC loop powered. Power dissipation: 0.4 W. Connection side: field side. Connection: terminals 1, 2-, 3+ suitable for Pt100, 2- and 3-wire connection. Lead resistance: max. 100 Ω per line. Measuring current: approx. 1 mA. Connection side: control side. Connection: terminals 9+, 8-. Load: (U -12 V) / 0.02 A. Current output: 4 ... 20 mA , limited to ≤ 35 mA. Fault signal: sensor burnout: upscaling ≥ 22 mA , limited to ≤ 35 mA. Measuring range: span without linearization 25 ... 800 °C (77 ... 1472 °F)/ with linearisation 25 ... 375 °C (77 ... 707 °F)zero point without linearization -200 ... 400 °C (-328 ... 752 °F)/ with linearisation -30 ... 375 °C (-22 ... 707 °F)span and zero point adjustable. Deviation: . After calibration0.1 % of full-scale valueInfluence of ambient temperaturespan and zero point 0.015 % / K or ± 10 mΩ / KInfluence of supply voltage6.5 ppm/V: . After calibration: 0.1 % of full-scale value. Influence of ambient temperature: span and zero point 0.015 % / K or ± 10 mΩ / K. Influence of supply voltage: 6.5 ppm/V. Rise time: 250 ms. Input/Output: safe isolation acc. to DIN VDE 0106, rated insulation voltage 253 Veff. Control elements: DIP switch rotary switch. Configuration: via DIP switches via rotary switch. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Insulation coordination: EN 50178. Galvanic isolation: EN 50178. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions. Degree of protection: IP20. Connection: screw terminals. Mass: approx. 150 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Height119 mmWidth20 mmDepth115 mm: . Height: 119 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
