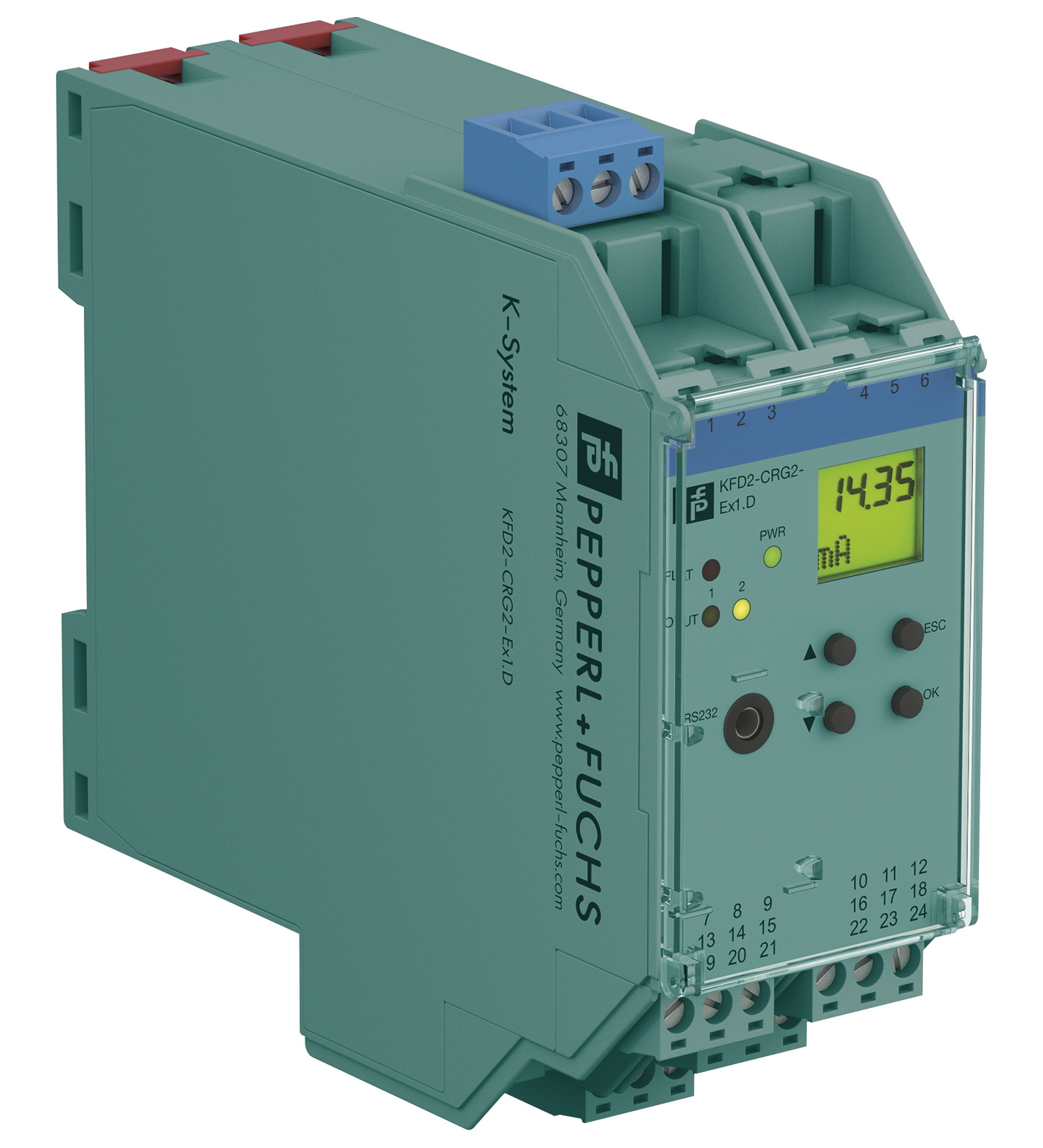

KFD2-CRG2-Ex1.D

Transmitter Power Supply. 1-channel isolated barrier, 24 V DC supply (Power Rail), Input 2-wire and 3-wire transmitters and 2-wire current sources, Output 0/4 mA ... 20 mA, 2 relay contact outputs, Ad...

Transmitter Power Supply. 1-channel isolated barrier, 24 V DC supply (Power Rail), Input 2-wire and 3-wire transmitters and 2-wire current sources, Output 0/4 mA ... 20 mA, 2 relay contact outputs, Adjustable energized/de-energized delay, Programmable high/low alarm, Linearization function (max 20 points), Line fault detection (LFD), Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511, Housing width: 40 mm, Number of channels: 1-channel, Trip relay, Safety Integrity Level (SIL): SIL 2, Rated voltage: 20 ... 30 V DC. Signal type: Analog input. Safety Integrity Level (SIL): SIL 2. Connection: Power Rail or terminals 23+, 24-. Rated voltage: 20 ... 30 V DC. Rated current: approx. 130 mA. Power dissipation: 2 W. Power consumption: 2.5 W. Programming interface: programming socket. Connection side: field side. Connection: terminals 1, 2, 3. Input I: . Input signal0/4 ... 20 mAAvailable voltage≥ 15 V at 20 mAOpen circuit voltage/short-circuit current24 V / 33 mAInput resistance45 Ω (terminals 2, 3)Line fault detectionbreakage I < 0.2 mA; short-circuit I > 22 mA: . Input signal: 0/4 ... 20 mA. Available voltage: ≥ 15 V at 20 mA. Open circuit voltage/short-circuit current: 24 V / 33 mA. Input resistance: 45 Ω (terminals 2, 3). Line fault detection: breakage I < 0.2 mA; short-circuit I > 22 mA. Connection side: control side. Connection: output I: terminals 10, 11, 12 output II: terminals 16, 17, 18 output III: terminals 8+, 7-. Output signal: 0 ... 20 mA or 4 ... 20 mA. Output I, II: signal, relay. Contact loading253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 AMechanical life5 x 107 switching cycles: . Contact loading: 253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A. Mechanical life: 5 x 107 switching cycles. Output III: Signal, analog. Current range0 ... 20 mA or 4 ... 20 mAOpen loop voltagemax. 24 V DCLoadmax. 650 ΩFault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21 mA (acc. NAMUR NE43): . Current range: 0 ... 20 mA or 4 ... 20 mA. Open loop voltage: max. 24 V DC. Load: max. 650 Ω. Fault signal: downscale I ≤ 3.6 mA, upscale I ≥ 21 mA (acc. NAMUR NE43). Energized/De-energized delay: 0 ... 250 s , adjustable. Input I: . Accuracy< 30 µAInfluence of ambient temperature0.003 %/K (30 ppm): . Accuracy: < 30 µA. Influence of ambient temperature: 0.003 %/K (30 ppm). Output I, II: . Response delay≤ 200 ms at bounce from 0 ... 20 mA: . Response delay: ≤ 200 ms at bounce from 0 ... 20 mA. Output III: . Resolution≤ 10 µAAccuracy< 20 µAInfluence of ambient temperature0.005 %/K (50 ppm)Reaction time< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value: . Resolution: ≤ 10 µA. Accuracy: < 20 µA. Influence of ambient temperature: 0.005 %/K (50 ppm). Reaction time: < 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value. Input/Other circuits: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output I, II/other circuits: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Mutual output I, II, III: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output III/power supply and collective error: functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff. Interface/power supply and collective error: functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff. Display elements: LEDs , display. Control elements: Control panel. Configuration: via operating buttons via PACTware. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: screw terminals. Mass: 300 g. Dimensions: 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D) , housing type C2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: TÜV 01 ATEX 1701. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Input: Ex ia. Supply: . Maximum safe voltageUm40 V DC (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 40 V DC (Attention! The rated voltage can be lower.). Equipment: terminals 1+, 3-. VoltageUo25.8 VCurrentIo93 mAPowerPo0.603 W: Uo. Voltage: 25.8 V. Current: 93 mA. Power: 0.603 W. Equipment: terminals 2-, 3. VoltageUi< 30 VCurrentIi115 mAVoltageUo5 VCurrentIo0.3 mAPowerPo0.3 mW: Ui. Voltage: < 30 V. Current: 115 mA. Voltage: 5 V. Current: 0.3 mA. Power: 0.3 mW. Equipment: terminals 1+, 2 / 3-. VoltageUo25.8 VCurrentIo112 mAPowerPo720 mW: Uo. Voltage: 25.8 V. Current: 112 mA. Power: 720 mW. Output I, II: terminals 10, 11, 12; 16, 17, 18 non-intrinsically safe. Maximum safe voltageUm253 V AC / 40 V DC (Attention! Um is no rated voltage.)Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load: Um. Maximum safe voltage: 253 V AC / 40 V DC (Attention! Um is no rated voltage.). Contact loading: 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load. Output III: terminals 8+, 7- non-intrinsically safe. Maximum safe voltage UmUm40 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage Um: 40 V (Attention! The rated voltage can be lower.). Interface: RS 232. Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) , RS 232: Um. Maximum safe voltage: 40 V (Attention! The rated voltage can be lower.) , RS 232. Certificate: TÜV 02 ATEX 1885 X. Marking II 3G Ex nA nC IIC T4: . Marking: II 3G Ex nA nC IIC T4. Output I, II: . Contact loading50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load: . Contact loading: 50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load. Galvanic isolation: . Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Other circuits: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010. FM approval: . Control drawing16-554FM-12 (cFMus): . Control drawing: 16-554FM-12 (cFMus). UL approval: E223772. IECEx approval: . IECEx certificateIECEx TUN 09.0007 IECEx TSA 18.0007XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec nC IIC T4 Gc: . IECEx certificate: IECEx TUN 09.0007 IECEx TSA 18.0007X. IECEx marking: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec nC IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
