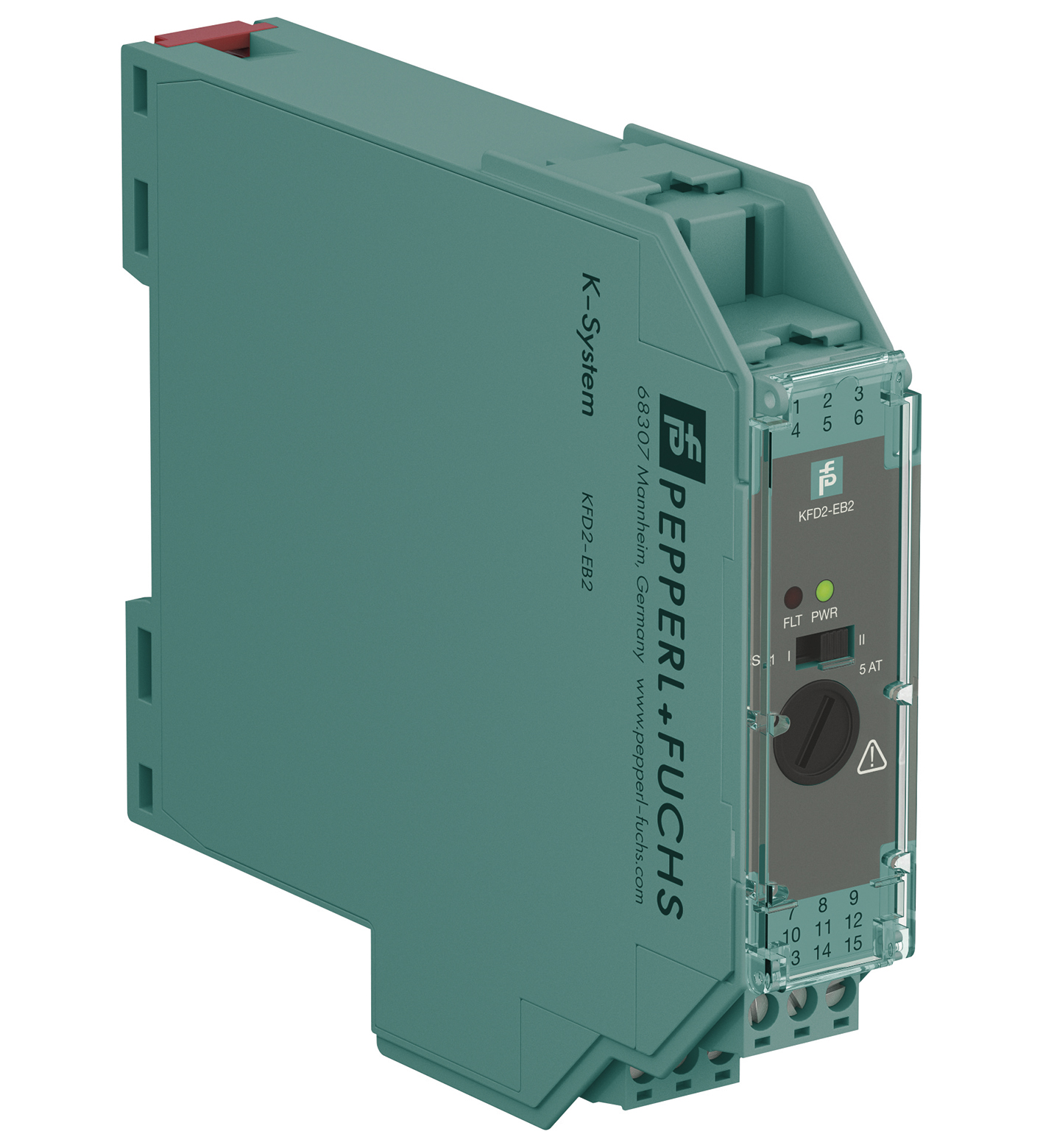

KFD2-EB2

Power Feed Module. Interface for Power Rail, Supply current ≤ 4 A, Replaceable fuse, Relay contact output, reversible, LED status indication. Connection: terminals 11+, 12- terminals 8+, 9-. Rated vol...

Power Feed Module. Interface for Power Rail, Supply current ≤ 4 A, Replaceable fuse, Relay contact output, reversible, LED status indication. Connection: terminals 11+, 12- terminals 8+, 9-. Rated voltage: 20 ... 30 V DC The maximum rated operating voltage of the devices plugged onto the Power Rail must not be exceeded.. Fusing: 5 AT/250 V AC recommended maximum utilization of the fuse: 80 %. Power dissipation: ≤ 1 W. Connection: Power Rail. Output current: max. 4 A. Output voltage: Ui ≥ rated voltage Ur = Ui - 0.6 V. Fault signal: relay output: NO contact. Contact loading: 30 V AC/ 2 A / cos φ ≥ 0.7 ; 40 V DC/ 2 A. Energized/De-energized delay: approx. 20 ms / approx. 20 ms. Display elements: LEDs. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017. Degree of protection: IEC 60529:2001. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP20. Connection: screw terminals. Mass: approx. 100 g. Dimensions: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: UL 22 ATEX 2853 X. Marking II 3G Ex ec nC IIC T4 Gc: . Marking: II 3G Ex ec nC IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN IEC 60079-15:2019: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN IEC 60079-15:2019. FM approval: FM 22 US 0031 X. Control drawing116-0160: . Control drawing: 116-0160. UL approval: E106378. CSA approval: CoC 1051840. IECEx approval: . IECEx certificateIECEx UL 16.0051XIECEx markingEx ec nC IIC T4 Gc: . IECEx certificate: IECEx UL 16.0051X. IECEx marking: Ex ec nC IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
