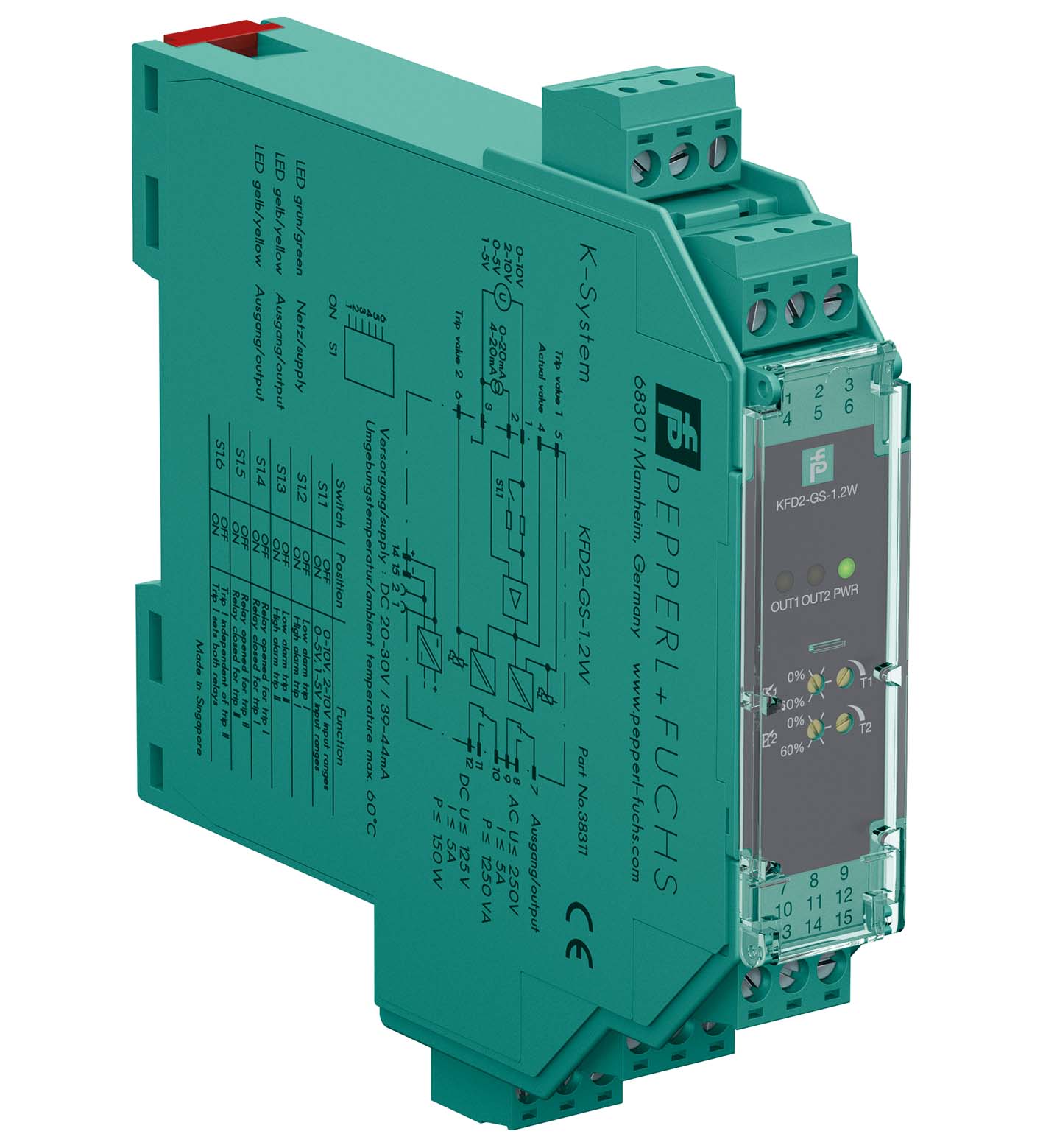

KFD2-GS-1.2W
Current/Voltage Trip Value. 1-channel signal conditioner, 24 V DC supply (Power Rail), Current and voltage input, 2 relay contact outputs, Programmable high/low alarm, Configurable via DIP switches an...
Current/Voltage Trip Value. 1-channel signal conditioner, 24 V DC supply (Power Rail), Current and voltage input, 2 relay contact outputs, Programmable high/low alarm, Configurable via DIP switches and potentiometer, Terminal blocks with test sockets, Housing width: 20 mm, Number of channels: 1-channel, Test sockets, Programmable high/low alarm, Rated voltage: 20 ... 30 V DC, Signal: 0/4 ... 20 mA, Signal [2]: 0/1 ... 5 V, Type: 2 x relay (change-over contact). Signal type: Analog input. Connection: Power Rail or terminals 14+, 15-. Rated voltage: 20 ... 30 V DC. Rated current: < 50 mA. Power consumption: < 1.5 W. Connection side: field side. Measuring range: terminals 1+, 3-: voltage 0/1 ... 5 V, load ≥ 50 kΩ or voltage 0/2 ... 10 V, load ≥ 100 kΩterminals 2+, 3-: current 0/4 ... 20 mA ; load ≤ 50 Ω. Connection side: control side. Output I, II: terminals 7, 8, 9; 10, 11, 12. Contact loading250 V AC / 4 A / cos φ > 0.7; 40 V DC / 2 A resistive load: . Contact loading: 250 V AC / 4 A / cos φ > 0.7; 40 V DC / 2 A resistive load. Output III: device configuration : terminals 4, 5, 6. Deviation: ≤ 1 %. Influence of ambient temperature0.01 % / K of adjusted trip value: . Influence of ambient temperature: 0.01 % / K of adjusted trip value. Input delay: 200 ms. Input/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Input/output I, II: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Output I, II/power supply: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff. Display elements: LEDs. Control elements: DIP switch potentiometer. Configuration: via DIP switches via potentiometer. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529. Protection against electrical shock: EN 61010-1:2010. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions. Degree of protection: IP20. Connection: screw terminals. Mass: approx. 120 g. Dimensions: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2. Height124 mmWidth20 mmDepth115 mm: . Height: 124 mm. Width: 20 mm. Depth: 115 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
